KM20LV-JRF (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )CM20,KM20,YM20

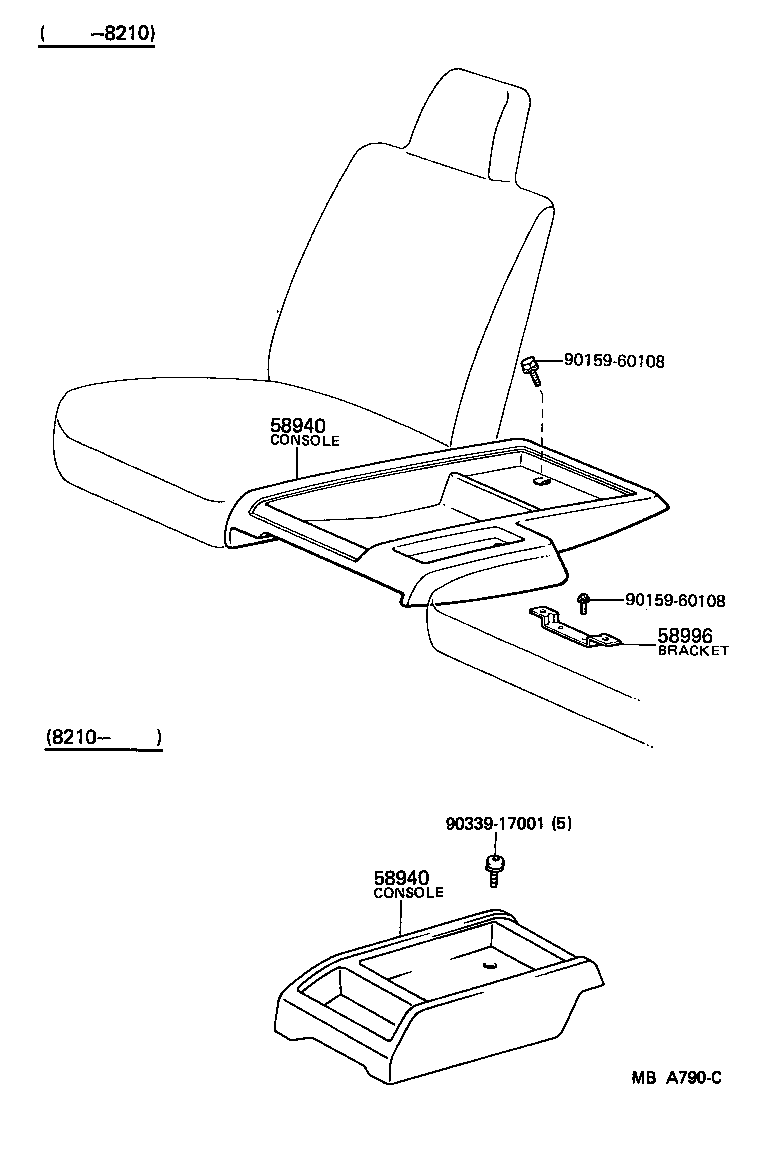

Click highlighted areas on diagram

diagram 58940 58940 58996 9015960108 9015960108 9033917001
Part # Description Qty Price
58940 - CONSOLE ASSY, REAR
58811-95704

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
58940 - CONSOLE ASSY, REAR
58811-95704

KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58996-95700

KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)

 1
Common parts
90159-60108
90339-17001
