KM20LV-JRBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

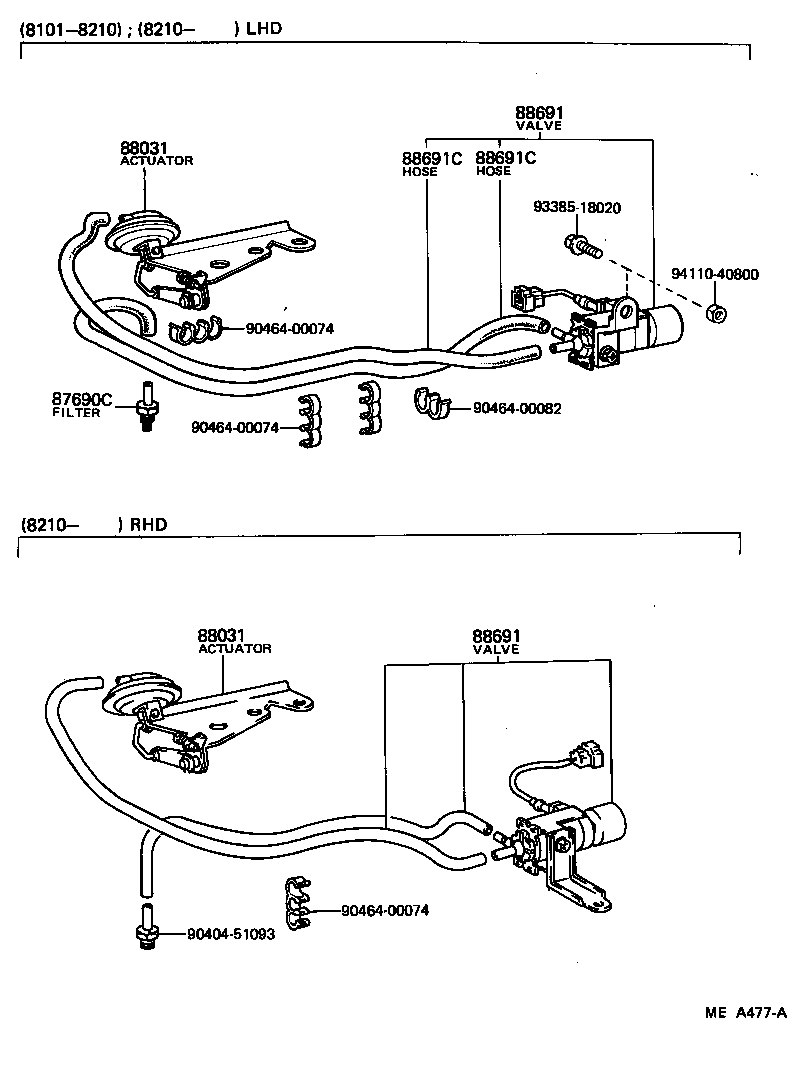

(8101- )HRF,SRF..GEN

Click highlighted areas on diagram

diagram 87690C 88031 88031 88691 88691 88691C 88691C 9040451093 9046400074 9046400074 9046400074 9046400082 9338518020 9411040800
Part # Description Qty Price
Common parts
90404-51093
90464-00074
90464-00082
93385-18020
94110-40800

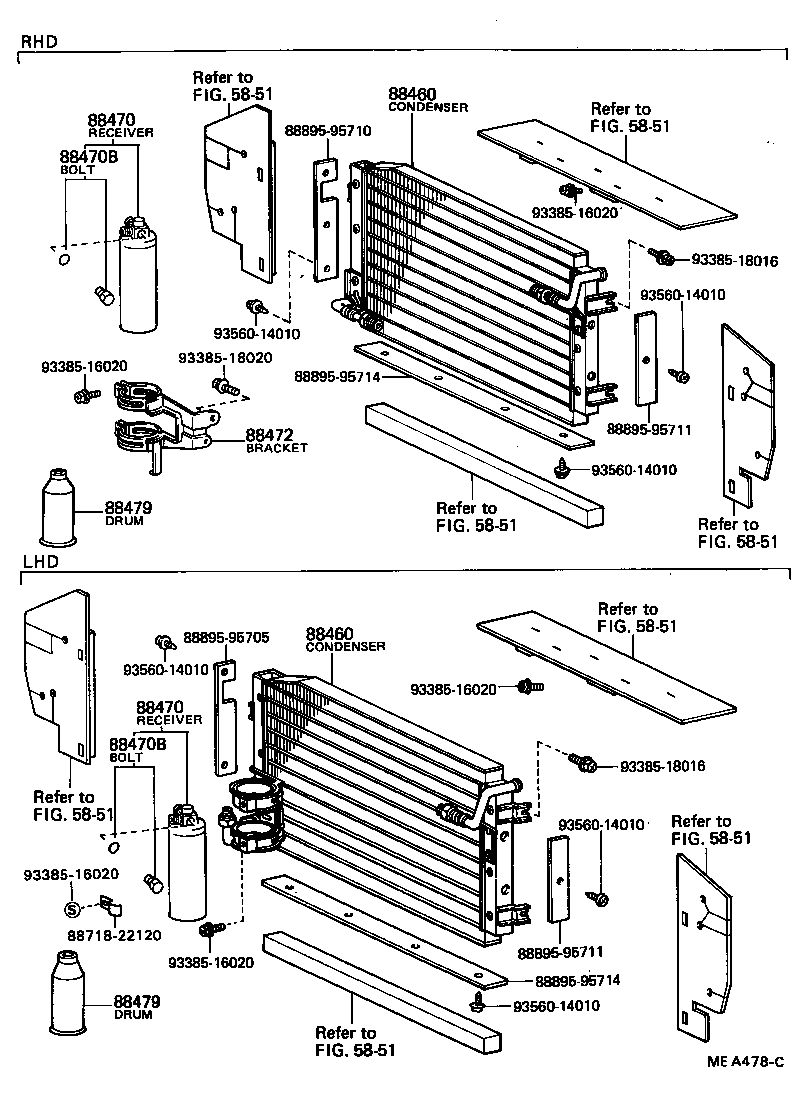

(8101- )HRF,SRF..GEN

Click highlighted areas on diagram

diagram 5851 5851 5851 5851 5851 5851 5851 5851 88460 88460 88470 88470 88470B 88470B 88472 88479 88479 8871822120 8889595705 8889595710 8889595711 8889595711 8889595714 8889595714 9338516020 9338516020 9338516020 9338516020 9338516020 9338518016 9338518016 9338518020 9356014010 9356014010 9356014010 9356014010 9356014010 9356014010
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

KM20..(HRF,SRF)..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

KM20..(HRF,SRF)..GEN

 1
Common parts
88718-22120
88895-95705
88895-95710
88895-95711
88895-95714
93385-16020
93385-18016
93385-18020
93560-14010
Linked diagrams
5851

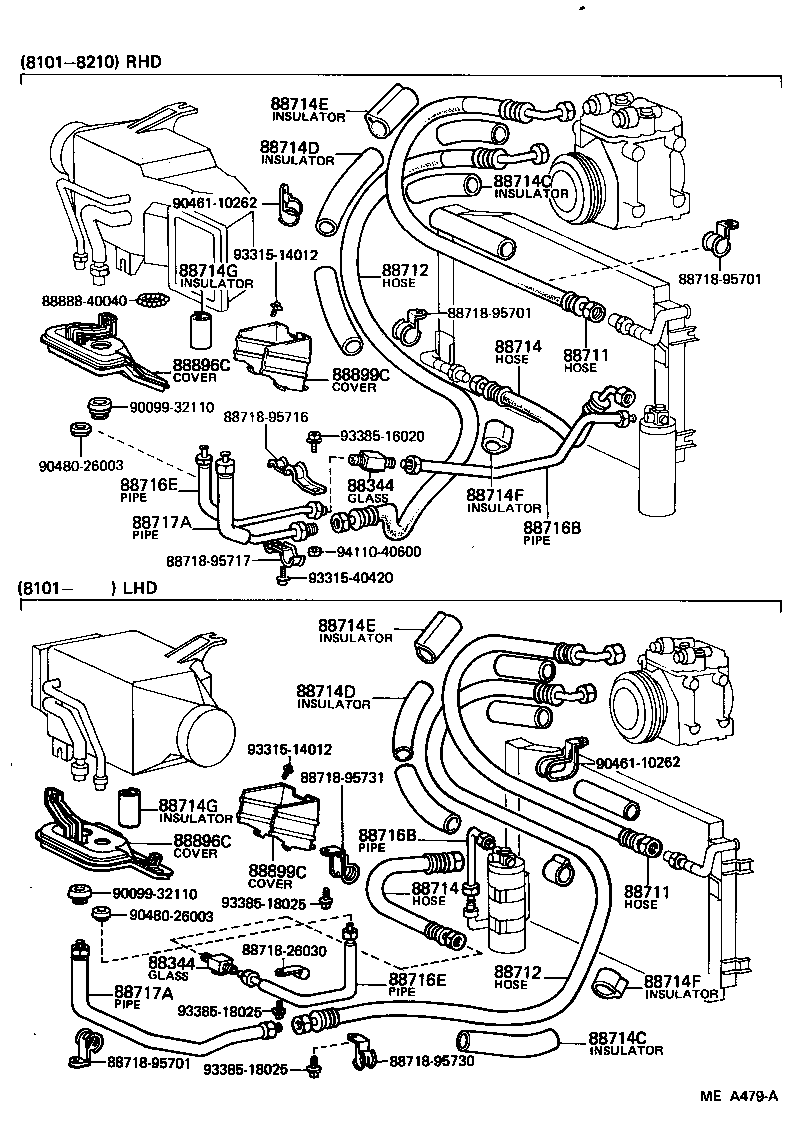

(8101-8210)HRF,SRF..GEN ; (8210- )LHD..GEN

Click highlighted areas on diagram

diagram 88344 88344 88711 88711 88712 88712 88714 88714 88714C 88714C 88714D 88714D 88714E 88714E 88714F 88714F 88714G 88714G 88716B 88716B 88716E 88716E 88717A 88717A 8871826030 8871895701 8871895701 8871895701 8871895716 8871895717 8871895730 8871895731 8888840040 88896C 88896C 88899C 88899C 9009932110 9009932110 9046110262 9046110262 9048026003 9048026003 9331514012 9331514012 9331540420 9338516020 9338518025 9338518025 9338518025 9411040600
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88407-95701

KM20..(HRF,SRF)..GEN

 1
88344 - GLASS SUB-ASSY, SIGHT
88407-95701

KM20..(HRF,SRF)..GEN

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14010

KM20..(HRF,SRF)..GEN

 5
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-14010

KM20..(HRF,SRF)..GEN

 5
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

KM20..(HRF,SRF)..GEN

 5
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-20030

KM20..(HRF,SRF)..GEN

 5
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-95700

KM20..(HRF,SRF)..GEN

 1
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-95700

KM20..(HRF,SRF)..GEN

 1
88714F - INSULATOR, COOLER REFRIGERANT HOSE, NO.4
88714-14020

KM20..(HRF,SRF)..GEN

 5
88714F - INSULATOR, COOLER REFRIGERANT HOSE, NO.4
88714-14020

KM20..(HRF,SRF)..GEN

 5
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

KM20..(HRF,SRF)..GEN

 1
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88592-30190

KM20..(HRF,SRF)..GEN

 1
88899C - COVER, COOLER REFRIGERANT PIPE, NO.2
88899-95702

KM20..(HRF,SRF)..GEN

 1
88899C - COVER, COOLER REFRIGERANT PIPE, NO.2
88899-95702

KM20..(HRF,SRF)..GEN

 1
Common parts
88718-26030
88718-95701
88718-95716
88718-95717
88718-95730
88718-95731
88888-40040
90099-32110
90461-10262
90480-26003
93315-14012
93315-40420
93385-16020
93385-18025
94110-40600
