KM20LV-JRBE (1979)
Toyota Liteace

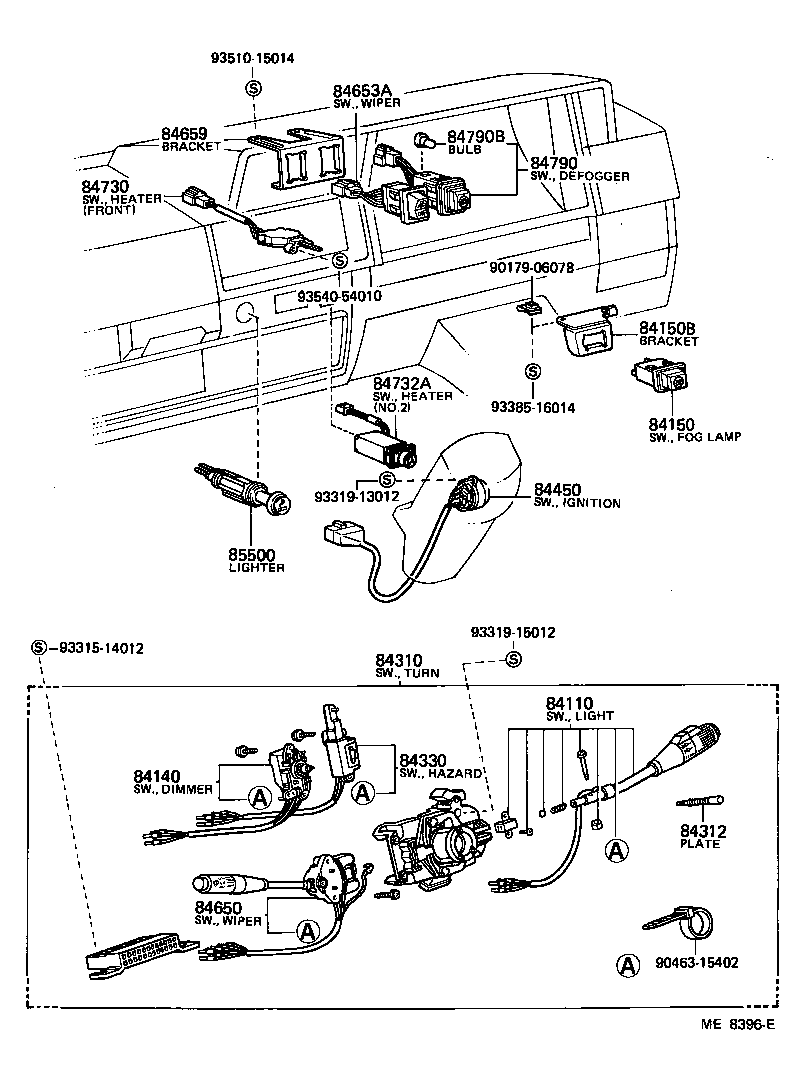

(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29215 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29065 |
CM20,KM20..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28052 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84310-28050 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM20,KM20,YM2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29085 |
CM20,KM20..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26020 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84450-26021 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84450-26030 |
KM20..LHD..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29267 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84652-29265 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95701 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) |
1 | ||
| 84732-95700 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,09S) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 85500-87001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 85500-95703 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93385-16014 | ||||
| 93510-15014 | ||||
| 93540-54010 | ||||

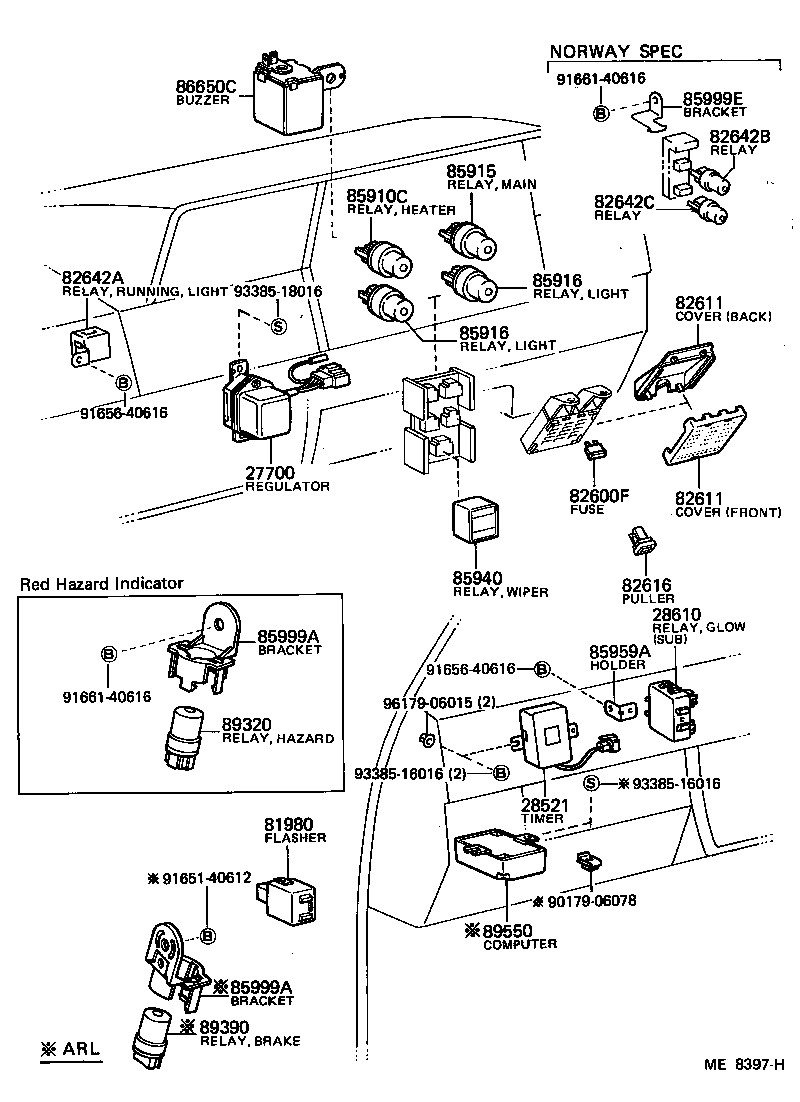

(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13040 |
1C,4K,1Y,2YC..CM20,KM20,YM2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 5A,5A |
1 | ||
| 90982-09002 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S 10A,10A |
1 | ||
| 90982-09003 |
CM20,KM20,YM2# 15A,15A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95702 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) FR |
1 | ||
| 82612-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BACK |
1 | ||
| 82611-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95702 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) FR |
1 | ||
| 82612-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BACK |
1 | ||
| 82611-95701 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) FR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM20,KM20,YM2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91661-40616 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 96179-06015 | ||||

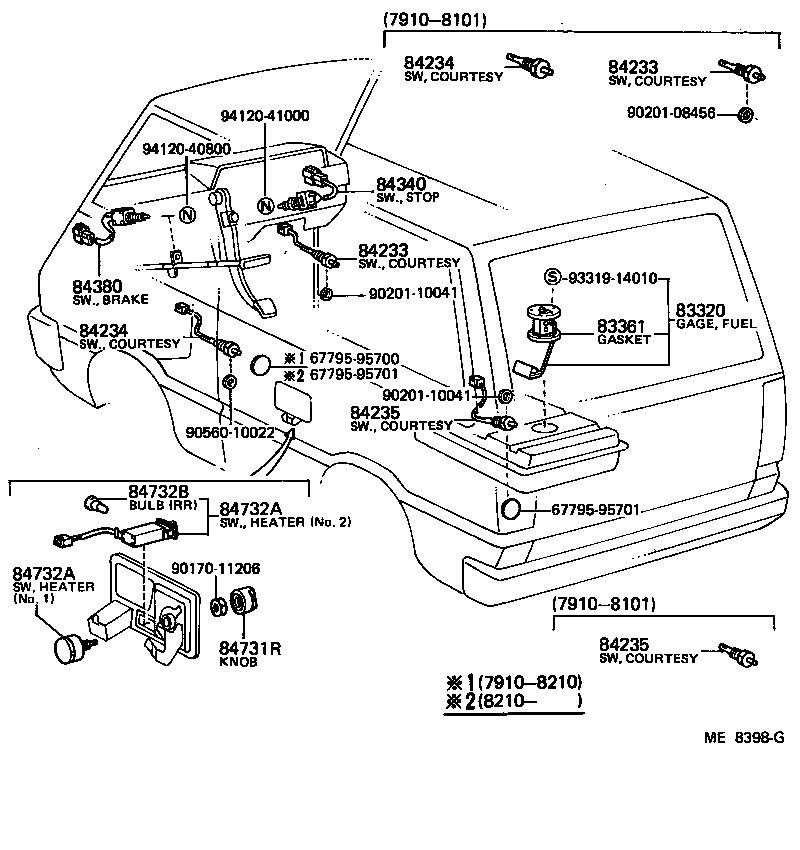

(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29325 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 83320-29326 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM20,KM20,YM2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 84230-30080 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 84230-30080 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-14020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-14020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-30080 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 84231-14020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-30080 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 84231-14020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
CM20,KM20,YM2# |
1 | ||
| Common parts | ||||
| 67795-95700 | ||||
| 67795-95701 | ||||
| 90170-11206 | ||||
| 90201-08456 | ||||
| 90201-10041 | ||||
| 90560-10022 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

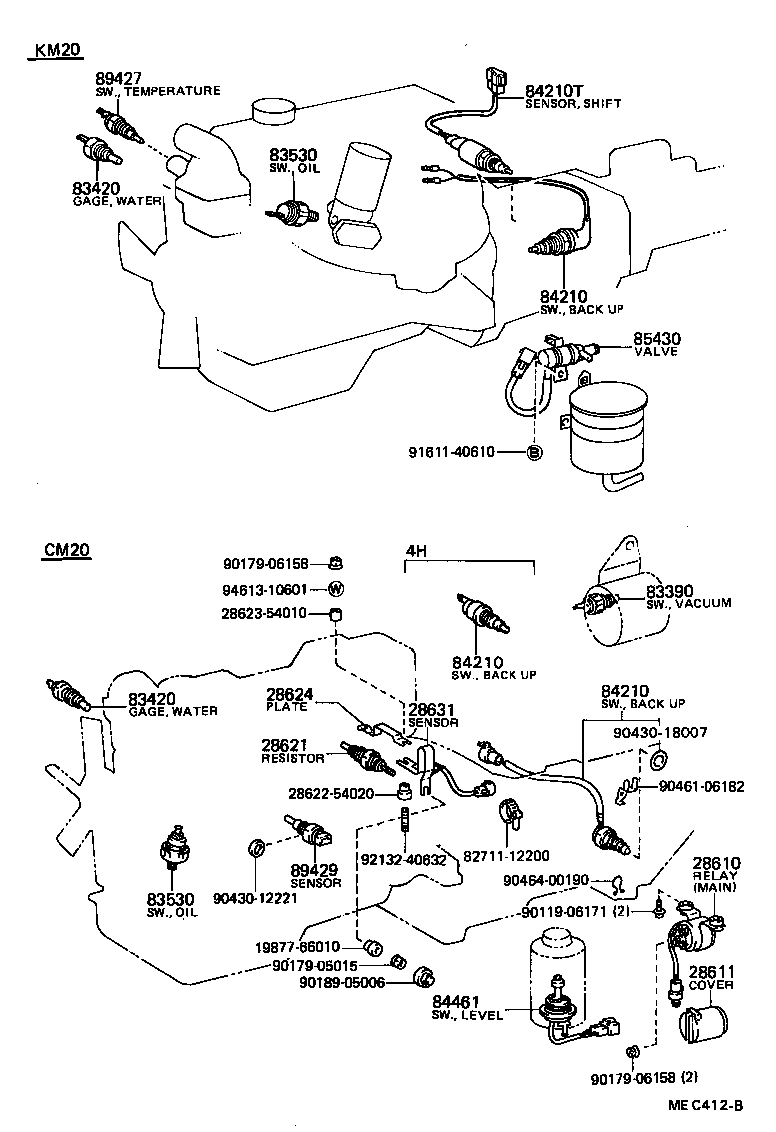

(7910- )CM20,KM20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CM20,KM20,YM2# DENSO |
1 | ||
| 83420-20020 |
CM20,KM20,YM2# YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CM20,KM20,YM2# DENSO |
1 | ||
| 83420-20020 |
CM20,KM20,YM2# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-06182 | ||||
| 90464-00190 | ||||
| 91611-40610 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||
