KM20LV-JRBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )HRF,SRF

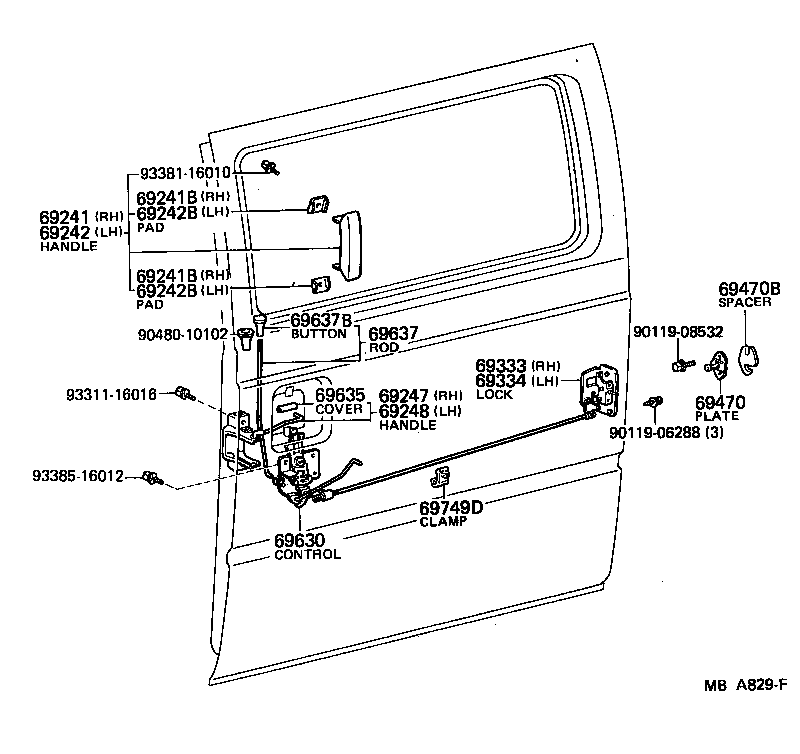

Click highlighted areas on diagram

diagram 69241 69241B 69241B 69242 69242B 69242B 69247 69248 69333 69334 69470 69470B 69630 69635 69637 69637B 69749D 9011906288 9011908532 9048010102 9331116016 9338116010 9338516012
Part # Description Qty Price
69241 - HANDLE ASSY, SLIDE DOOR OUTSIDE, RH
69230-95A90

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
69241B - PAD, SLIDE DOOR OUTSIDE HANDLE, NO.2 RH
69246-95A00

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

UPR

 1
69247-95A00

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

LWR

 1
69241B - PAD, SLIDE DOOR OUTSIDE HANDLE, NO.2 RH
69246-95A00

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

UPR

 1
69247-95A00

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

LWR

 1
69247 - HANDLE, SLIDE DOOR INSIDE, RH
69730-95701

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
69333 - LOCK ASSY, SLIDE DOOR, RH
69330-95701

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

 1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-95700

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 1
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69630-95702

CM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)

RH

 1
69635 - COVER, SLIDE DOOR INSIDE HANDLE CONTROL ROD
69635-95701

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 1
69637 - ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL
69703-95700

KM20..V4D..4F;KM20..LHD..(BUS,WG);KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

RH

 1
69637B - BUTTON, DOOR LOCKING(FOR SLIDE DOOR)
69747-20020

KM20..BUS,WG;KM20..V4D..4F;KM20..RHD..V4D;KM20..LHD..V4D..VSP..4H..EUR;KM20..LHD..V4D..4H..(03S,05S,06S)

 1
69749D - CLAMP, SLIDE DOOR LOCK LINK
69749-95700

CM20,YM2#;KM20..V4D;KM20..BUS,WG

 1
Common parts
90119-06288
90119-08532
90480-10102
93311-16016
93381-16010
93385-16012
