KM20LV-JRBE (1979)
Toyota Liteace

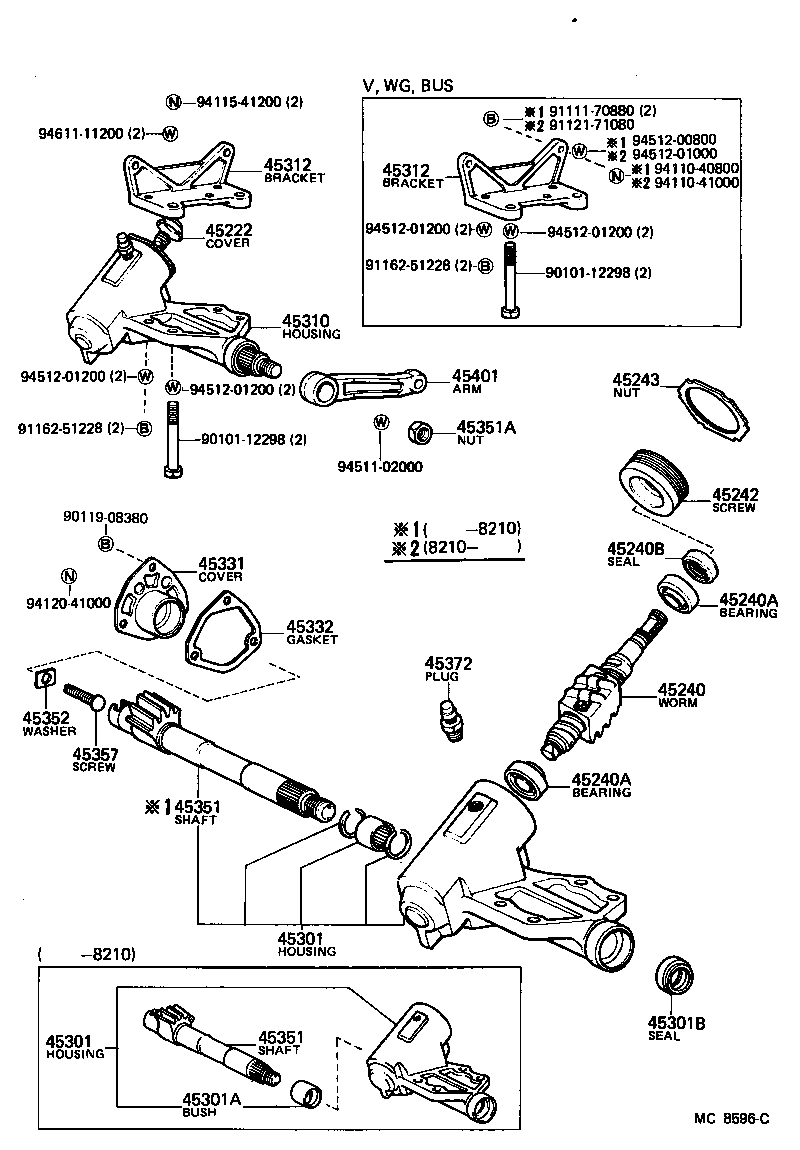

(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27010 |
CM20,KM20,YM2# |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22070 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
CM20,KM20,YM2# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30050 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45242-22040 |
KM20..VSP..02S;KM20..03S,05S,06S,08S,09S |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-27050 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45301-27051 |
KM20..4F;KM20..LHD..GEN |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-27050 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45301-27051 |
KM20..4F;KM20..LHD..GEN |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73008 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
CM20,KM20,YM2# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-27080 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-27030 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-27030 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-27010 |
CM20,KM20,YM2# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
CM20,KM20,YM2# |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-22140 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-22140 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
CM20,KM20,YM2# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.04,T=2.04 |
1 | ||
| 45352-14040 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.12,T=2.12 |
1 | ||
| 45352-14030 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.08,T=2.08 |
1 | ||
| 45352-14050 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.16,T=2.16 |
1 | ||
| 45352-14060 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.20,T=2.20 |
1 | ||
| 45352-14010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S T=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
CM20,KM20,YM2# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
CM20,KM20,YM2# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-27050 |
CM20,KM20..LHD |
1 | ||
| Common parts | ||||
| 90101-12298 | ||||
| 90119-08380 | ||||
| 91111-70880 | ||||
| 91121-71080 | ||||
| 91162-51228 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94611-11200 | ||||

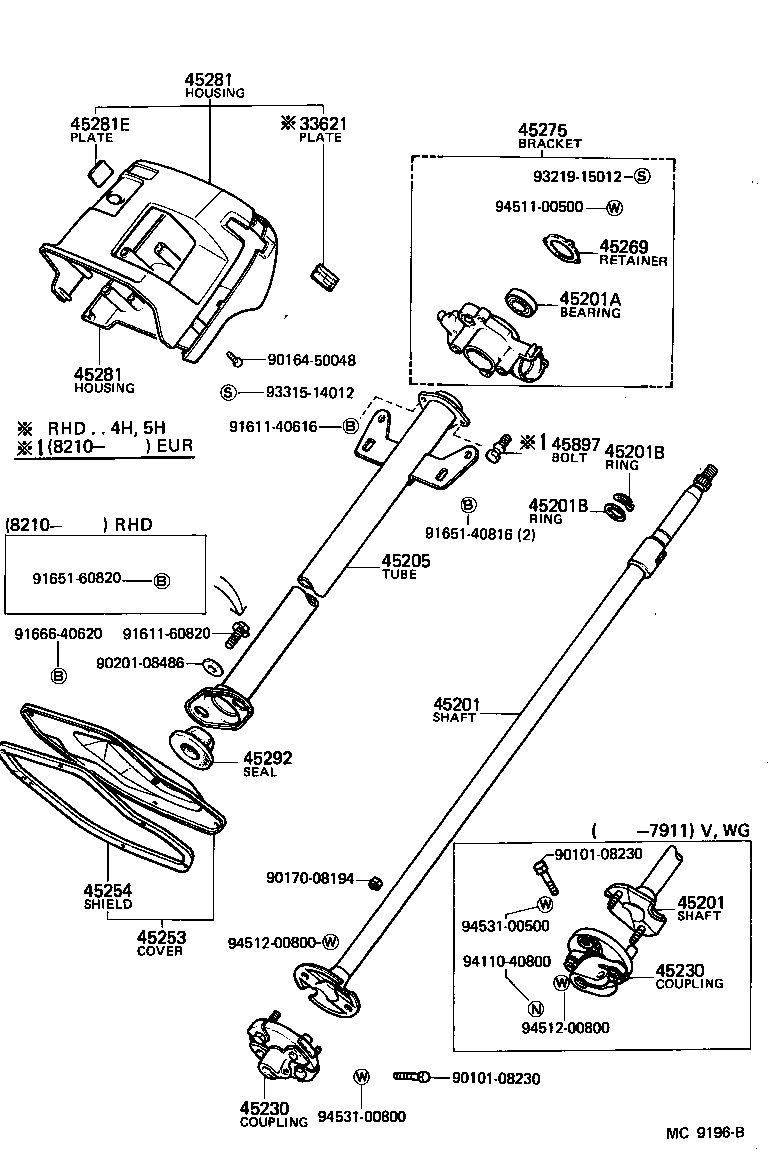

(7910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-27080 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 45201-27070 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-27080 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 45201-27070 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
CM20,KM20,YM2# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM20,KM20,YM2# T=1.20,LWR |
1 | ||
| 90520-17269 |
CM20,KM20,YM2# T=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM20,KM20,YM2# T=1.20,LWR |
1 | ||
| 90520-17269 |
CM20,KM20,YM2# T=1.20,UPR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27040 |
CM20,KM20..LHD..4H |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45230-36010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45230-35020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 45230-36010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45230-35020 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-27020 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-27020 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
KM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 45269-35010 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26050 |
CM20..LHD..GEN;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-27080 |
KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) UPR |
1 | ||
| 45287-27040 |
KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) LWR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-27080 |
KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) UPR |
1 | ||
| 45287-27040 |
KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) LWR |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
CM20,KM20..LHD..4H |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36010 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90201-08486 | ||||
| 91611-40616 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94531-00500 | ||||
| 94531-00800 | ||||
