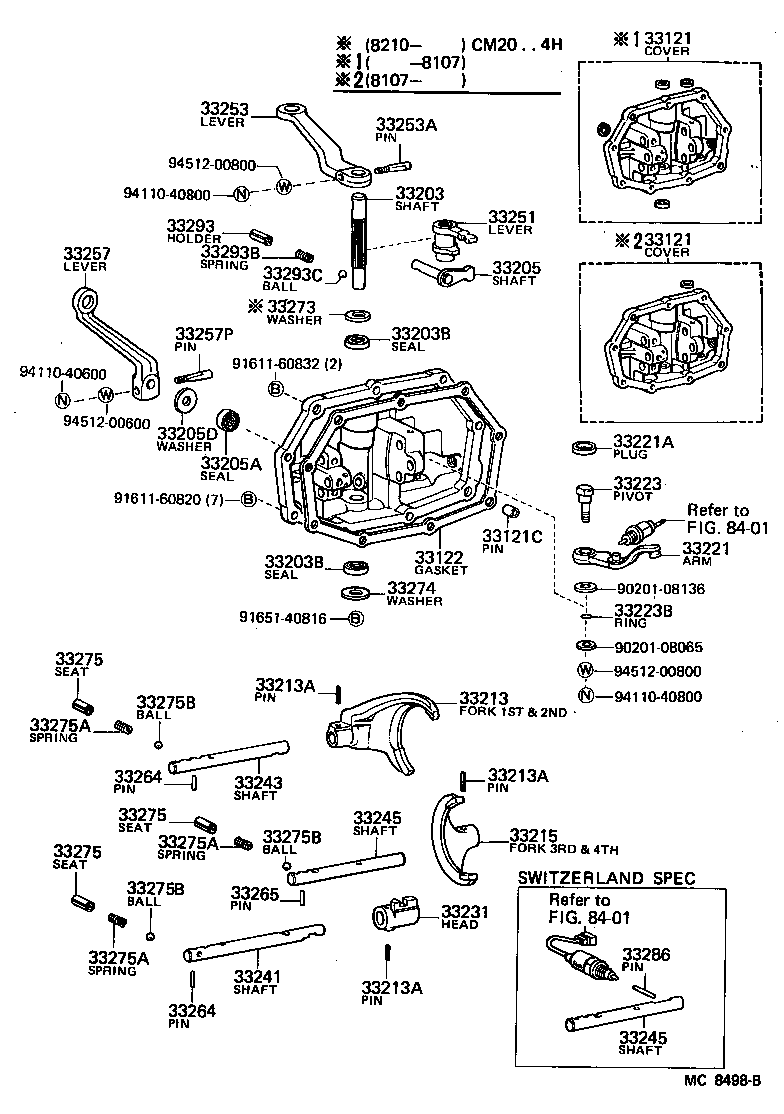

KM20LV-JRBE (1979)
Toyota Liteace
(7910- )4F,4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-26904 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-26904 |
KM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90253-11001 |
CM20,KM20..4F,4H L=11,OD=11 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-30020 |
CM20,KM20..4F,4H |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-26021 |
CM20,KM20..4F,4H |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-13050 |
CM20,KM20..4F,4H LWR |
1 | ||
| 90312-15003 |
CM20,KM20..4F,4H UPR |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-13050 |
CM20,KM20..4F,4H LWR |
1 | ||
| 90312-15003 |
CM20,KM20..4F,4H UPR |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28010 |
CM20,KM20..4F,4H |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
CM20,KM20,YM2#..MTM |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
CM20,KM20,YM2#..MTM |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-26020 |
CM20,KM20..4F,4H |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
CM20,KM20..4F,4H |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
CM20,KM20..4F,4H |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
CM20,KM20..4F,4H |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-26020 |
CM20,KM20..4F,4H |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-30010 |
CM20,KM20..4F,4H |
1 | ||
| 33221A - PLUG, TIGHT(FOR REVERSE SHIFT ARM) | ||||
| 96411-12500 |
CM20,KM20..4F,4H |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-30011 |
CM20,KM20..4F,4H |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 90301-08001 |
CM20,KM20..4F,4H |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-26010 |
CM20,KM20..4F,4H |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-27020 |
CM20,KM20..4F,4H |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-30010 |
CM20,KM20..4F,4H |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-27020 |
CM20,KM20..4F,4H |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
CM20,KM20..4F,4H |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
CM20,KM20..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
CM20,KM20..4F,4H OD=6,L=16 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
CM20,KM20..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2 | ||||
| 94612-11300 |
CM20,KM20..4F,4H |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
CM20,KM20..4F,4H |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
CM20,KM20..4F,4H |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
CM20,KM20..4F,4H |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
CM20,KM20..4F,4H L=15.2 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
CM20,KM20..4F,4H L=15.2 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
CM20,KM20..4F,4H L=15.2 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
CM20,KM20,YM2#..MTM |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
CM20,KM20,YM2#..MTM |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
CM20,KM20,YM2#..MTM |
4 | ||
| 33293 - HOLDER, REVERSE RESTRICT BALL | ||||
| 33276-10010 |
CM20,KM20..4F,4H |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-16052 |
CM20,KM20..4F,4H |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
CM20,KM20..4F,4H |
1 | ||
| Common parts | ||||
| 90201-08065 | ||||
| 90201-08136 | ||||
| 91611-60820 | ||||
| 91611-60832 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
