KM20LV-JRBE (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4K

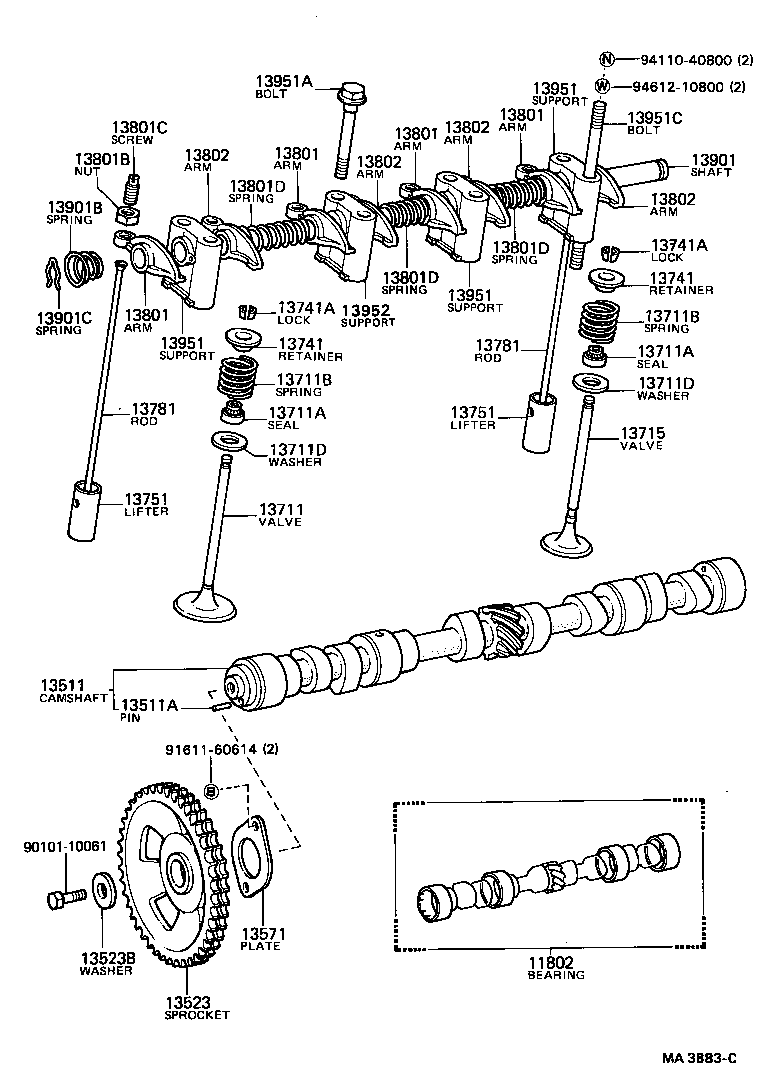

Click highlighted areas on diagram

diagram 11802 13511 13511A 13523 13523B 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13751 13781 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901C 13951 13951 13951 13951A 13951C 13952 9010110061 9161160614 9411040800 9461210800
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-22010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

U/S 0.250

 1
11802-22010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

STD

 1
11803-22010

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

U/S 0.125

 1
13511 - CAMSHAFT
13501-13010

4K..KM20

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

4K..KM20

L=15,OD=5,L=15,OD=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-22010

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

N=36

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10489

4K..KM20

 1
13571 - PLATE, CAMSHAFT THRUST
13571-13010

4K..KM20

 1
13711 - VALVE, INTAKE
13711-24011

4K..KM20

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 8
90913-02056

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023

4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)

 8
90913-02056

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42293

4K..KM20

WD=4.2,CW=6.5

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42293

4K..KM20

WD=4.2,CW=6.5

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K..KM20

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K..KM20

 8
13715 - VALVE, EXHAUST
13715-24031

4K..KM20..LHD..GEN

CHINA SPEC

 4
13715-24013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S

 4
13715-24012

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 4
13715-24030

4K..KM20..LHD..GEN

CHINA SPEC

 4
13741 - RETAINER, VALVE SPRING
13741-24020

4K..KM20

 8
13741 - RETAINER, VALVE SPRING
13741-24020

4K..KM20

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K..KM20

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K..KM20

 16
13751 - LIFTER, VALVE
13751-22013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

STD

 8
13755-22013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

O/S 0.05

 8
13751 - LIFTER, VALVE
13751-22013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

STD

 8
13755-22013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-13010

4K..KM20

 8
13781 - ROD, VALVE PUSH
13781-13010

4K..KM20

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM20

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM20

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM20

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM20

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08005

4K..KM20

 8
13801C - SCREW, VALVE ADJUSTING
90913-05013

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-11008

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

WD=1.1,CW=6

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-11008

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

WD=1.1,CW=6

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-11008

4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S

WD=1.1,CW=6

 3
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM20

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM20

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM20

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM20

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-22011

4K..KM20

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-14022

4K..KM20

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009

4K..KM20

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K..KM20

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K..KM20

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K..KM20

 3
13951A - BOLT(FOR ROCKER SUPPORT SET)
90105-08028

4K..KM20

*8-1.25PX53-15

 6
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08082

4K..KM20

L=100,S=10&54

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-24012

4K..KM20

 1
Common parts
90101-10061
91611-60614
94110-40800
94612-10800
