KM20LV-JR (1979)

Toyota Liteace

Production Oct 1979 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

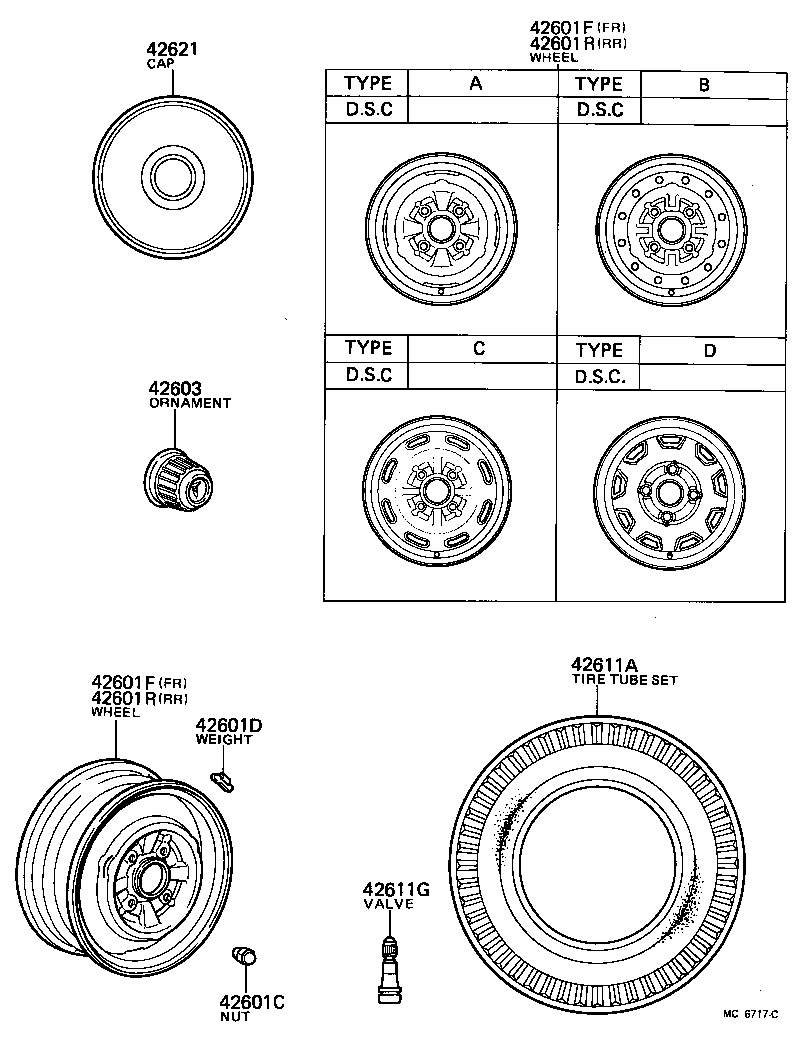

Click highlighted areas on diagram

diagram 42601C 42601D 42601F 42601F 42601R 42601R 42603 42611A 42611G 42621
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

KM20..VSP..02S;KM20..03S,05S,06S,09S

 16
90942-01021

CM20,KM20,YM20..ARL,GEN

 16
90942-01007

CM20,KM20..(BUS,TR,V)..(EUR,GEN)

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03020

CM20,KM20,YM2#

30G,T=10,30G

 1
90942-03027

CM20,KM20,YM2#

60G,T=9.5,60G

 1
90942-03017

CM20,KM20,YM2#

20G,T=8,20G

 1
90942-03029

CM20,KM20,YM2#

70G,T=9.5,70G

 1
90942-03041

CM20,KM20,YM2#

10G,T=7.5,10G

 1
90942-03022

CM20,KM20,YM2#

40G,T=9.5,40G

 1
90942-03031

CM20,KM20,YM2#

80G,T=9.5,80G

 1
90942-03025

CM20,KM20,YM2#

50G,T=9.5,50G

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-27040

KM20..ARL,GEN

4J-13,TYPE A

 2
42601-27040

CM20,KM20..GEN

4J-13,TYPE A

 2
42611-21081

CM20,KM20..LHD..GEN

13X4.5J,4.5J-13,TYPE D

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-27040

KM20..ARL,GEN

4J-13,TYPE A

 2
42601-27040

CM20,KM20..GEN

4J-13,TYPE A

 2
42611-21081

CM20,KM20..LHD..GEN

13X4.5J,4.5J-13,TYPE D

 2
42601R - WHEEL, DISC (FOR REAR)
42601-27040

KM20..ARL,GEN

4J-13,TYPE A

 3
42601-27040

CM20,KM20..GEN

4J-13,TYPE A

 3
42611-21081

CM20,KM20..LHD..GEN

13X4.5J,4.5J-13,TYPE D

 3
42601R - WHEEL, DISC (FOR REAR)
42601-27040

KM20..ARL,GEN

4J-13,TYPE A

 3
42601-27040

CM20,KM20..GEN

4J-13,TYPE A

 3
42611-21081

CM20,KM20..LHD..GEN

13X4.5J,4.5J-13,TYPE D

 3
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12050

CM20,KM20,YM20..ARL,GEN

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
98961-55133

KM20..(HRF,SRF)..(ARL,GEN)

5.50-13-6,*(T)&*(Y)

 5
98061-55133

KM20..(HRF,SRF)..(ARL,GEN)

5.50-13-6,*(B)&*(D)

 5
42605-28010

CM20,KM20..GEN

165R13-6

 5
98061-55133

CM20,KM20..GEN

5.50-13-6,*(B) & (D)

 5
42605-28020

KM20..LHD..V4D..06S

165R13-8

 5
98061-55133

CM20,KM20..GEN

5.50-13-6,*(D)

 5
42605-27060

CM20,KM20..GEN

5.50-13-6,*(B)

 5
98961-55133

CM20,KM20..GEN

5.50-13-6,*(T)&*(Y),FR

 5
42621 - CAP, WHEEL
42621-26110

CM20,KM20..(BUS,TR,V)..(EUR,GEN)

COATED WITH PAINT

 4
42621-27020

KM20..(TR,V)..(EUR,GEN)

CHROME PLATED

 4
42621-26110

KM20..VSP..02S;KM20..03S,05S,06S,09S

COATED WITH PAINT

 4
42621-27020

KM20..VSP..02S;KM20..03S,05S,06S

CHROME PLATED

 4
