KM20LG-JR (1980)

Toyota Liteace

Production Dec 1980 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)

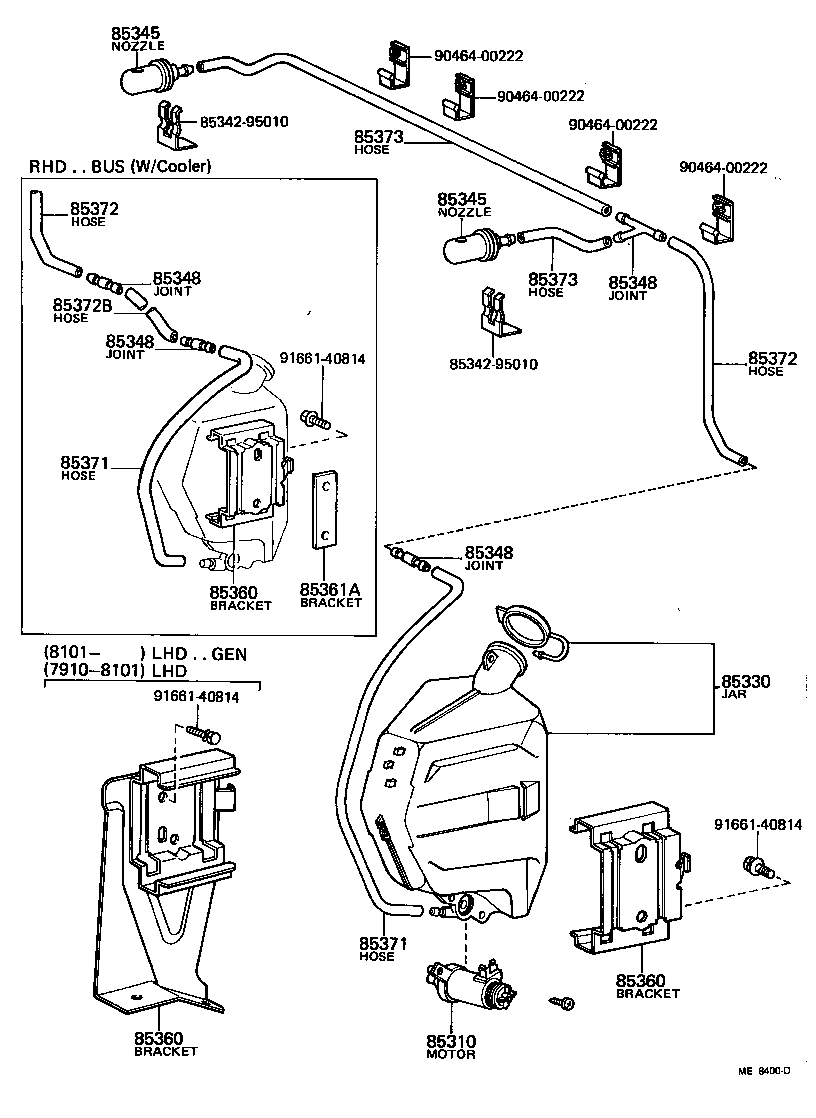

Click highlighted areas on diagram

diagram 85310 85330 8534295010 8534295010 85345 85345 85348 85348 85348 85348 85360 85360 85360 85361A 85371 85371 85372 85372 85372B 85373 85373 9046400222 9046400222 9046400222 9046400222 9166140814 9166140814 9166140814
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-95702

KM20..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR;KM20..LHD..SRF..4H..(02S,05S,07S,09S)

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-95701

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
85035-95708

CM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95709

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95701

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
85035-95708

CM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95709

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

2 WAY

 2
85355-14010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

2 WAY

 2
85355-14010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

2 WAY

 2
85355-14010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

2 WAY

 2
85355-14010

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

3 WAY

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95701

CM20,KM20..LHD

 1
85361-95705

KM20..LHD..09S

W/COOLER

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95701

CM20,KM20..LHD

 1
85361-95705

KM20..LHD..09S

W/COOLER

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95701

CM20,KM20..LHD

 1
85361-95705

KM20..LHD..09S

W/COOLER

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-06013

KM20..GEN

*H,L=230,W/COOLER

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06183

CM20,KM20,YM2#

*H,L=650

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06183

CM20,KM20,YM2#

*H,L=650

 1
Common parts
85342-95010
90464-00222
91661-40814

(8210- )LHD

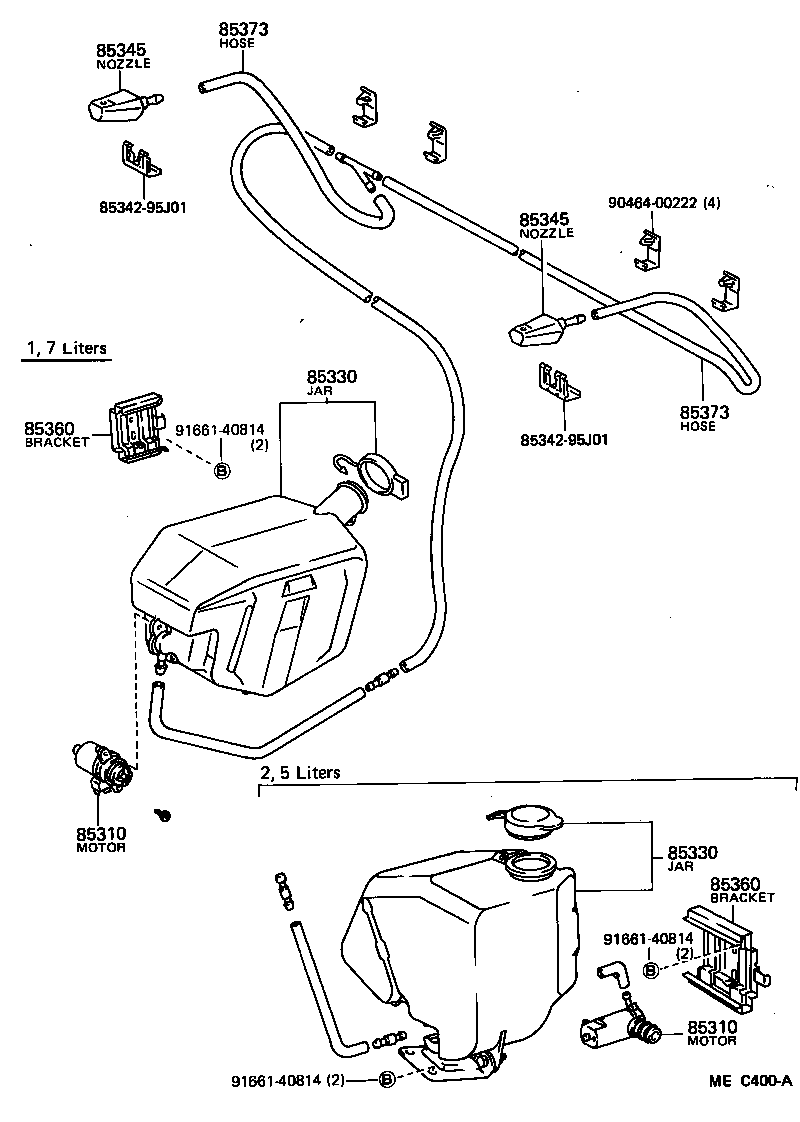

Click highlighted areas on diagram

diagram 85310 85310 85330 85330 8534295J01 8534295J01 85345 85345 85360 85360 85373 85373 9046400222 9166140814 9166140814 9166140814
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-95702

KM20..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR;KM20..LHD..SRF..4H..(02S,05S,07S,09S)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-95702

KM20..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR;KM20..LHD..SRF..4H..(02S,05S,07S,09S)

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-95701

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
85035-95708

CM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95709

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95701

CM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95011

KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S

 2
85035-95708

CM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S

 2
85035-95709

CM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95701

CM20,KM20..LHD

 1
85361-95705

KM20..LHD..09S

W/COOLER

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-95701

CM20,KM20..LHD

 1
85361-95705

KM20..LHD..09S

W/COOLER

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06183

CM20,KM20,YM2#

*H,L=650

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06183

CM20,KM20,YM2#

*H,L=650

 1
Common parts
85342-95J01
90464-00222
91661-40814
