KM20LG-JR (1980)

Toyota Liteace

Production Dec 1980 - Aug 1985
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TR ; (7910- )HRF,SRF

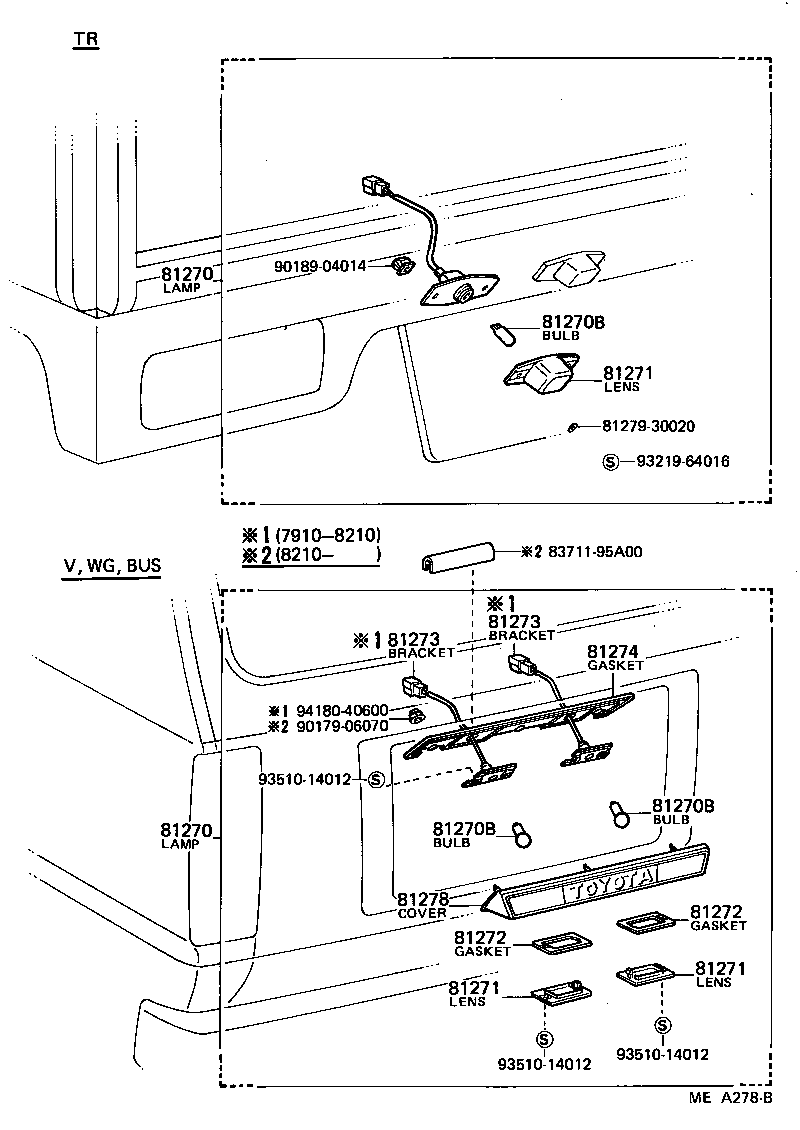

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81273 81273 81274 81278 8127930020 8371195A00 9017906070 9018904014 9321964016 9351014012 9351014012 9351014012 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29425

KM20..(HRF,SRF)..(ARL,GEN)

 1
81270-29875

CM20,KM20,YM2#..ARL,GEN

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-29425

KM20..(HRF,SRF)..(ARL,GEN)

 1
81270-29875

CM20,KM20,YM2#..ARL,GEN

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

CM20,KM20,YM2#..(HRF,SRF)..(ARL,GEN)

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM20,YM2#..HRF,SRF

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM20,YM2#..HRF,SRF

 2
81271 - LENS, LICENSE PLATE LAMP
81271-95700

CM20,KM20,YM2#..HRF,SRF

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95700

CM20,KM20,YM2#..HRF,SRF

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95700

CM20,KM20,YM2#..HRF,SRF

 2
81273 - BRACKET, LICENSE PLATE LAMP
81273-95700

KM20..(HRF,SRF)..(ARL,GEN)

 2
81273 - BRACKET, LICENSE PLATE LAMP
81273-95700

KM20..(HRF,SRF)..(ARL,GEN)

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-95700

CM20,KM20,YM2#..HRF,SRF

 1
81278 - COVER, LICENSE PLATE LAMP
81276-95706

CM20,KM20,YM2#

 1
81276-95700

KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)

 1
Common parts
81279-30020
83711-95A00
90179-06070
90189-04014
93219-64016
93510-14012
94180-40600
