KM20LG-JR (1980)
Toyota Liteace

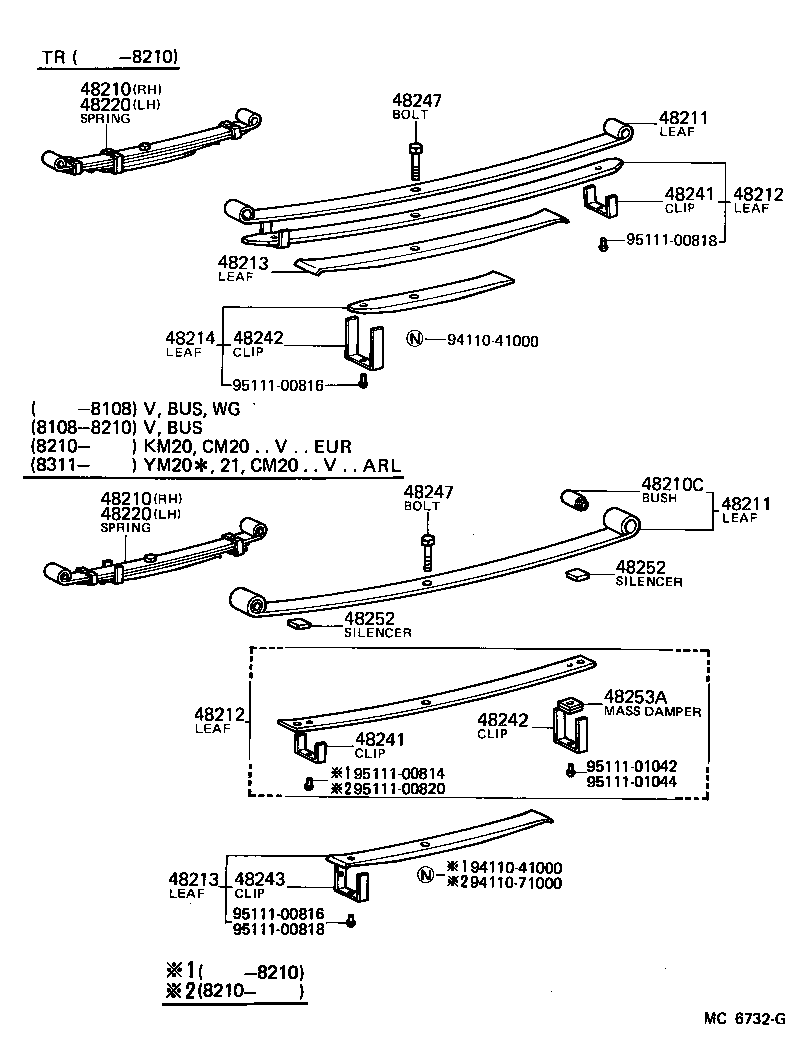

(7910-8108) ; (8108-8210)BUS,TR,V ; (8210- )V..EUR ; (8311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| 90389-14012 |
CM20,KM20,YM2# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48201-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48201-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48202-27140 |
KM20..09S |
2 | ||
| 48202-27200 |
CM20,KM20..GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48202-27140 |
KM20..09S |
2 | ||
| 48202-27200 |
CM20,KM20..GEN |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48203-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48203-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48241-27150 |
KM20..09S |
2 | ||
| 48241-27150 |
CM20,KM20,YM2#..ARL,GEN |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48241-27150 |
KM20..09S |
2 | ||
| 48241-27150 |
CM20,KM20,YM2#..ARL,GEN |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48243-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48243-27100 |
CM20,KM20,YM2#..BUS,V |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48243-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48243-27100 |
CM20,KM20,YM2#..BUS,V |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-27100 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48247-28010 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48247-28010 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YM21;CM20,KM20,YM20..BUS,V |
4 | ||
| 48252-26070 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YM21;CM20,KM20,YM20..BUS,V |
4 | ||
| 48252-26070 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
4 | ||
| 48253A - MASS DAMPER, REAR SPRING, NO.1 | ||||
| 48255-26120 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94110-71000 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00820 | ||||
| 95111-01042 | ||||
| 95111-01044 | ||||

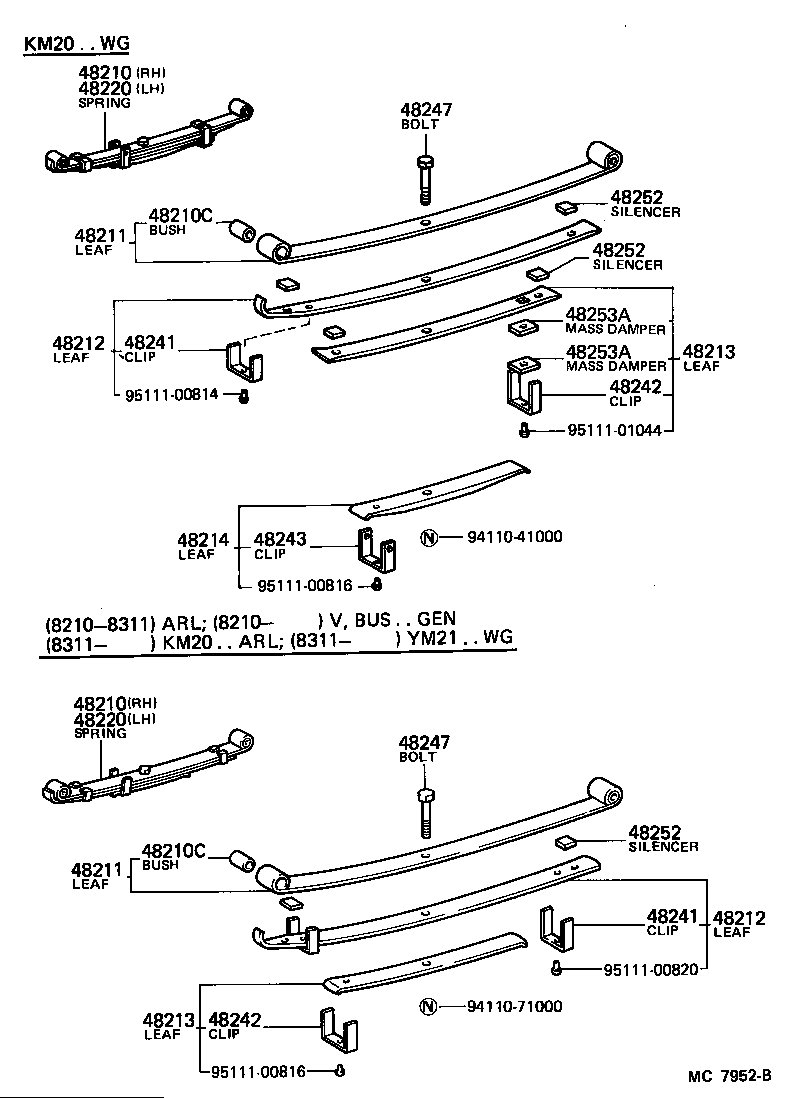

(8108- )KM20..08S ; (8210-8311)ARL ; (8210-)GEN ; (8311- )KM20..ARL ; (83
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| 90389-14012 |
CM20,KM20,YM2# |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| 90389-14012 |
CM20,KM20,YM2# |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48201-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48201-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48202-27140 |
KM20..09S |
2 | ||
| 48202-27200 |
CM20,KM20..GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48202-27140 |
KM20..09S |
2 | ||
| 48202-27200 |
CM20,KM20..GEN |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48203-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48203-27100 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27200 |
CM20,KM20..GEN |
1 | ||
| 48210-27140 |
KM20..09S |
1 | ||
| 48210-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48241-27150 |
KM20..09S |
2 | ||
| 48241-27150 |
CM20,KM20,YM2#..ARL,GEN |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48241-27150 |
KM20..09S |
2 | ||
| 48241-27150 |
CM20,KM20,YM2#..ARL,GEN |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48243-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48243-27100 |
CM20,KM20,YM2#..BUS,V |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48243-27100 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48243-27100 |
CM20,KM20,YM2#..BUS,V |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-27100 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48247-28010 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
2 | ||
| 48247-28010 |
CM20,KM20..(BUS,V)..(EUR,GEN) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YM21;CM20,KM20,YM20..BUS,V |
4 | ||
| 48252-26070 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YM21;CM20,KM20,YM20..BUS,V |
4 | ||
| 48252-26070 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YM21;CM20,KM20,YM20..BUS,V |
4 | ||
| 48252-26070 |
KM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S) |
4 | ||
| 48253A - MASS DAMPER, REAR SPRING, NO.1 | ||||
| 48255-26120 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| 48253A - MASS DAMPER, REAR SPRING, NO.1 | ||||
| 48255-26120 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94110-71000 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
| 95111-00820 | ||||
| 95111-01044 | ||||
