KM11RV-JRZ (1978)
Toyota Liteace
Production
Feb 1978
-
Sep 1979
Engine
4KJ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7909)

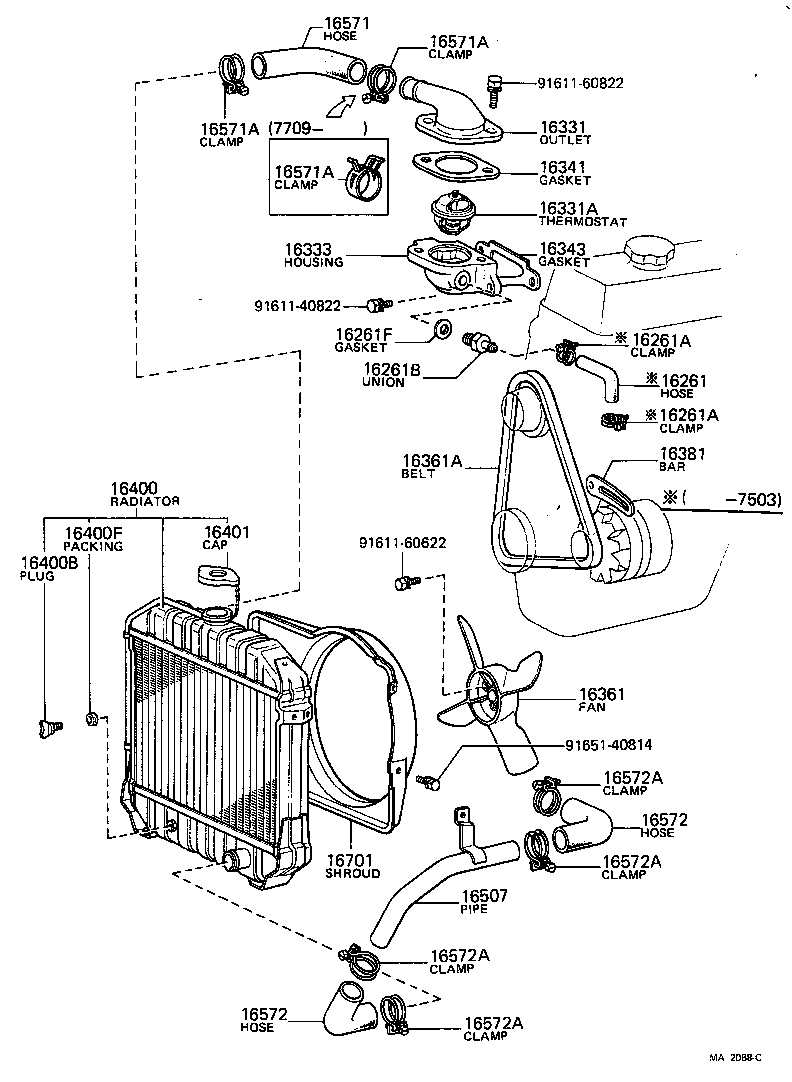

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22011 |
3K#,4KJ..KM1#..TR,V L/HEATER |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-16162 |
4KJ..KM11 L/HEATER |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-22021 |
4KJ..KM11 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-22010 |
3K#,4KJ..KM1# |
1 | ||
| 16341-13011 |
4KJ..KM11 |
1 | ||
| 16341-13010 |
4KJ..KM11 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
3K#,4KJ..KM1# |
1 | ||
| 16361 - FAN | ||||
| 16361-24041 |
4KJ..KM11 4 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00810 |
4KJ..KM11 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13040 |
4KJ..KM11 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
4KJ..KM11 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
4KJ..KM11 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16577-13010 |
4KJ..KM11 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-13020 |
4KJ..KM11 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-13010 |
4KJ..KM11 PUMP SIDE |
1 | ||
| 16573-13010 |
4KJ..KM11 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-13010 |
4KJ..KM11 PUMP SIDE |
1 | ||
| 16573-13010 |
4KJ..KM11 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-13030 |
4KJ..KM11 |
1 | ||
| Common parts | ||||
| 91611-40822 | ||||
| 91611-60622 | ||||
| 91611-60822 | ||||
| 91651-40814 | ||||
