KM11RV-JRZ (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

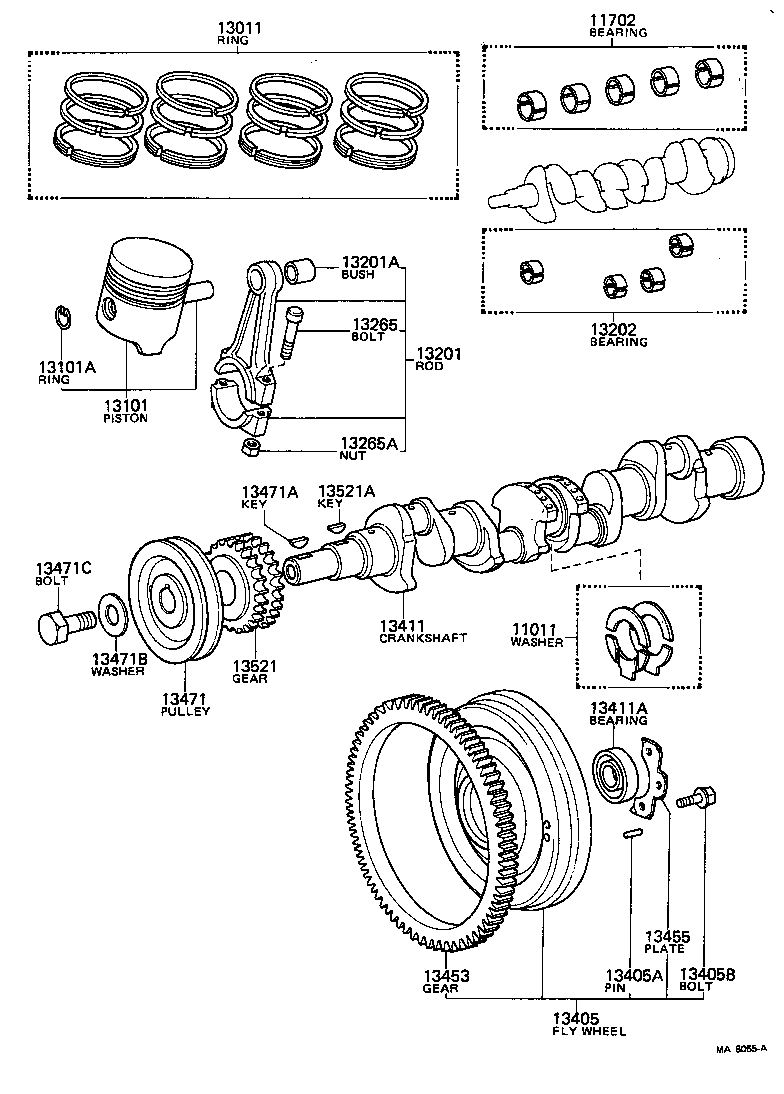

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13455 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-22010

3K#,4KJ..KM1#

O/S 0.125

 1
11011-22010

3K#,4KJ..KM1#

STD

 1
11013-22010

3K#,4KJ..KM1#

O/S 0.25

 1
11013-22011

4KJ..KM11

O/S 0.250,O/S 0.25

 1
11011-22011

4KJ..KM11

STD,STD

 1
11012-22011

4KJ..KM11

O/S 0.125,O/S 0.125

 1
13101 - PISTON SUB-ASSY, W/PIN
13104-24010

3K#,4KJ..KM1#

O/S 0.75,O/S 0.75

 4
13105-24010

3K#,4KJ..KM1#

O/S 1.00,O/S 1.00

 4
13103-24010

3K#,4KJ..KM1#

O/S 0.50,O/S 0.50

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

3K#,4KJ..KM1#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-13010

4KJ..KM11

 4
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

3K#,4KJ..KM1#

L=18,OD=8

 2
13405B - BOLT, FLYWHEEL SETTING
90913-01005

3K#,4KJ..KM1#

 6
13411 - CRANKSHAFT
13411-13010

4KJ..KM11

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97123-06001

3K#,4KJ..KM1#

6001 ZZ C3

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

3K#,4KJ..KM1#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

3K#,4KJ..KM1#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

4KJ..KM11

 1
90209-13059

3K#,4KJ..KM1#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

3K#,4KJ..KM1#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3K#,4KJ..KM1#

 1
