KM11RV-JR (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

Click highlighted areas on diagram

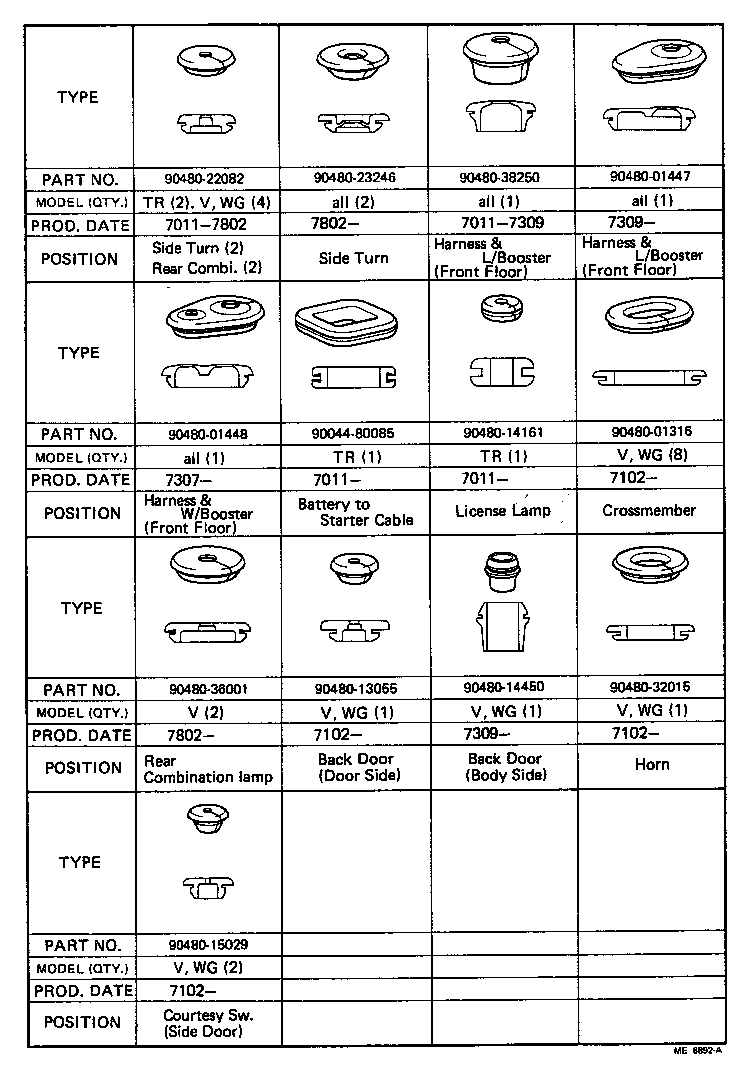

diagram 9004480085 9048001316 9048001447 9048001448 9048013055 9048014161 9048014450 9048015029 9048022082 9048023246 9048032015 9048036001 9048038250
Part # Description Qty Price
Common parts
90044-80085
90480-01316
90480-01447
90480-01448
90480-13055
90480-14161
90480-14450
90480-15029
90480-22082
90480-23246
90480-32015
90480-36001
90480-38250

(7105-7909)HRF,SRF

Click highlighted areas on diagram

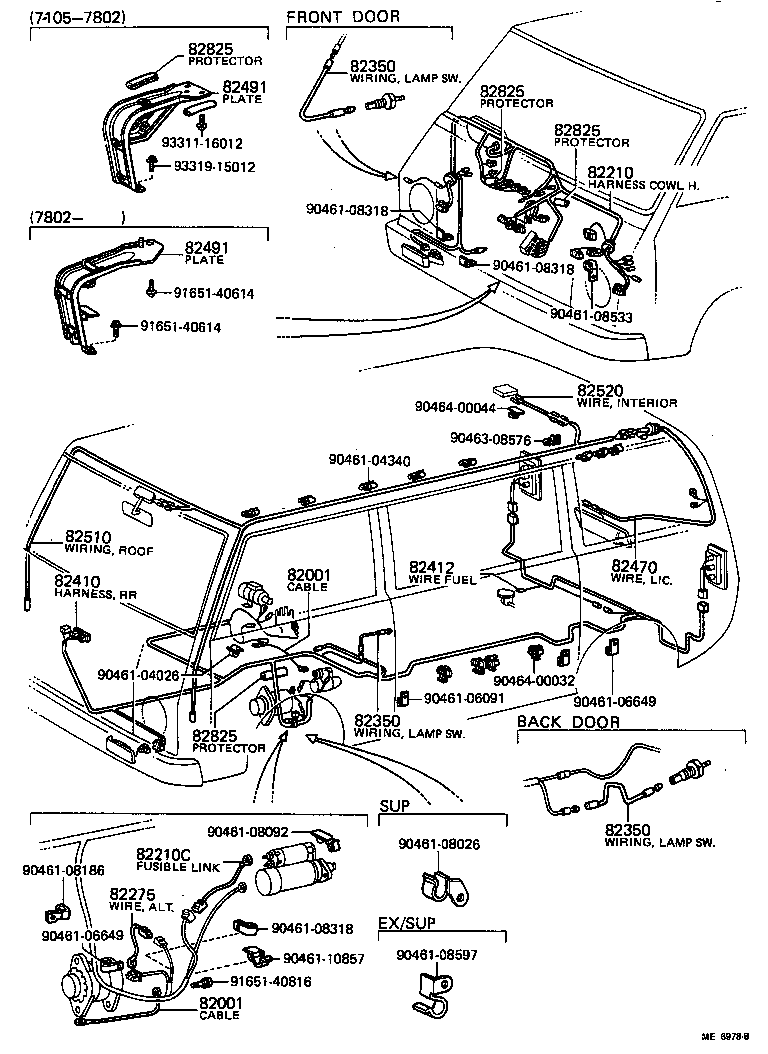

diagram 82001 82001 82210 82210C 82275 82350 82350 82350 82410 82412 82470 82491 82491 82510 82520 82825 82825 82825 82825 9046104026 9046104340 9046106091 9046106649 9046106649 9046108026 9046108092 9046108186 9046108318 9046108318 9046108318 9046108533 9046108597 9046110857 9046308576 9046400032 9046400044 9165140614 9165140614 9165140816 9331116012 9331915012
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07001

KM1#..HRF,SRF

L=280

 1
90980-07042

KM1#

L=165

 1
82001 - CABLE, BOND, NO.1
90980-07001

KM1#..HRF,SRF

L=280

 1
90980-07042

KM1#

L=165

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-95714

KM11..V

 1
82210C - FUSIBLE LINK
90982-08011

KM1#

 1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
84232-95700

KM1#..HRF,SRF

FOR SIDE DOOR

 1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
84232-95700

KM1#..HRF,SRF

FOR SIDE DOOR

 1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
84232-95700

KM1#..HRF,SRF

FOR SIDE DOOR

 1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-95709

KM11..V

 1
82412 - WIRE, FUEL GAGE
82412-95700

KM1#..HRF,SRF

 1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-95700

KM1#..HRF,SRF

 1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
82707-95702

KM11

 1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
82707-95702

KM11

 1
Common parts
90461-04026
90461-04340
90461-06091
90461-06649
90461-08026
90461-08092
90461-08186
90461-08318
90461-08533
90461-08597
90461-10857
90463-08576
90464-00032
90464-00044
91651-40614
91651-40816
93311-16012
93319-15012
