KM11RV-JR (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)HRF,SRF

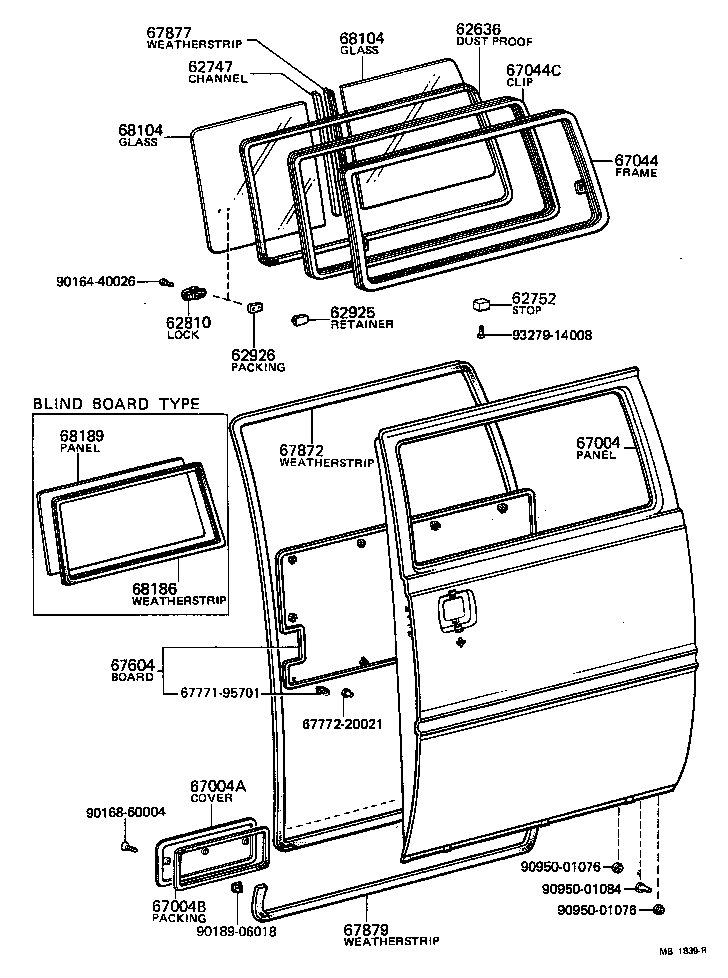

Click highlighted areas on diagram

diagram 62636 62747 62752 62810 62925 62926 67004 67004A 67004B 67044 67044C 67604 6777195701 6777220021 67872 67877 67879 68104 68104 68186 68189 9016440026 9016860004 9018906018 9095001076 9095001076 9095001084 9327914008
Part # Description Qty Price
62810 - LOCK ASSY, REAR DOOR WINDOW
62791-95702

KM11..V

 2
67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH
62702-95700

KM1#..V

 1
67044C - CLIP, REAR DOOR WINDOW FRAME, LH
62752-95701

KM1#..HRF,SRF

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
62341-95702

KM1#

 1
67879 - WEATHERSTRIP, REAR DOOR, LOWER LH
62343-95700

KM1#..HRF,SRF

 1
Common parts
67771-95701
67772-20021
90164-40026
90168-60004
90189-06018
90950-01076
90950-01084
93279-14008
