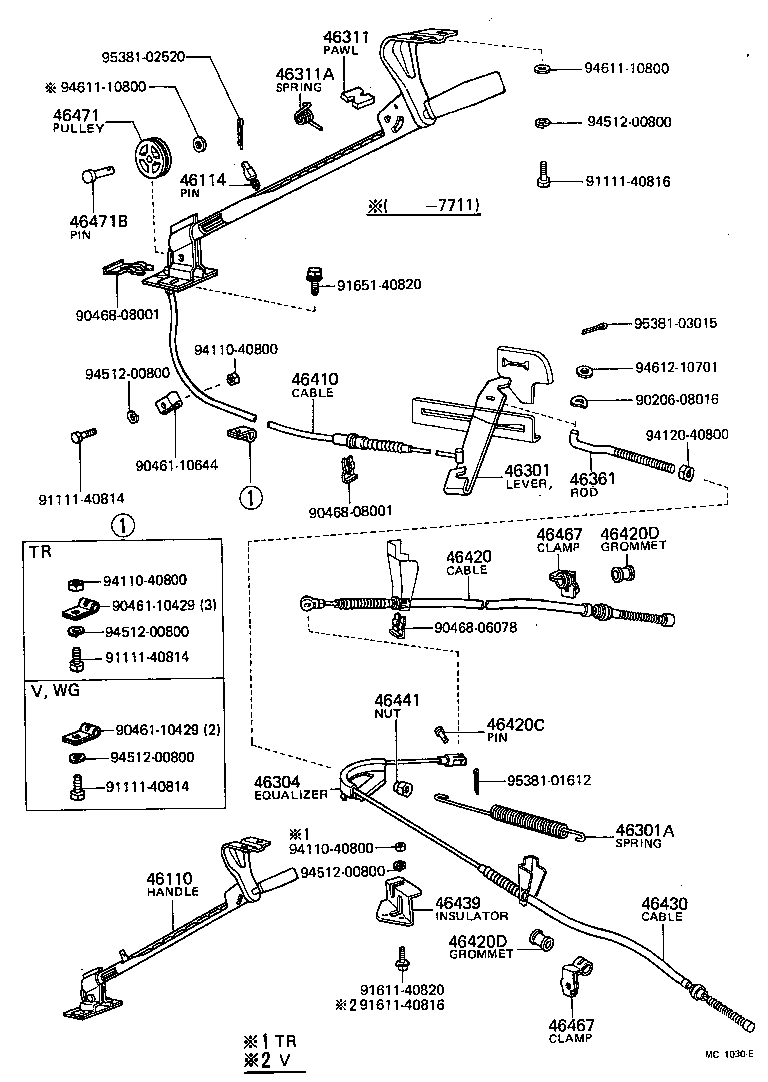

Toyota Liteace KM11 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46114 - PIN, PARKING BRAKE PLUNGER
46114-30020	KM1#	05/1971 - 09/1979	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-23320	KM1#	05/1971 - 09/1979	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35010	KM1#	05/1971 - 09/1979	1
46311 - PAWL, PARKING BRAKE
46311-30030	KM1#	05/1971 - 09/1979	1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-07040	KM1#	05/1971 - 09/1979	1
46361 - ROD, PARKING BRAKE PULL
46361-27010	KM1#	05/1971 - 09/1979	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27020	KM1#..HRF,SRF L=2249.5	05/1971 - 09/1979	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27011	KM11 L=959	07/1979 - 09/1979	1
46420-27010	KM1# L=959	05/1971 - 07/1979	1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-06032	KM1#	05/1971 - 09/1979	1
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051	KM1#	05/1971 - 09/1979	2
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051	KM1#	05/1971 - 09/1979	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27011	KM11 L=1549	07/1979 - 09/1979	1
46430-27010	KM1# L=1549	05/1971 - 07/1979	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-08020	KM1#	05/1971 - 09/1979	1
46467 - CLAMP, CABLE
46487-27010	KM1# LH.	05/1971 - 09/1979	1
46467-27010	KM1# RH.	05/1971 - 09/1979	1
46467 - CLAMP, CABLE
46487-27010	KM1# LH.	05/1971 - 09/1979	1
46467-27010	KM1# RH.	05/1971 - 09/1979	1
46471 - PULLEY, WIRE
46471-20010	KM1#	05/1971 - 09/1979	1
Common parts
90206-08016
90461-10429
90461-10644
90468-06078
90468-08001
91111-40814
91111-40816
91611-40816
91611-40820
91651-40820
94110-40800
94120-40800
94512-00800
94611-10800
94612-10701
95381-01612
95381-02520
95381-03015

KM11RV-JR (1978)

(7105-7909)
