KM11R-JRB (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

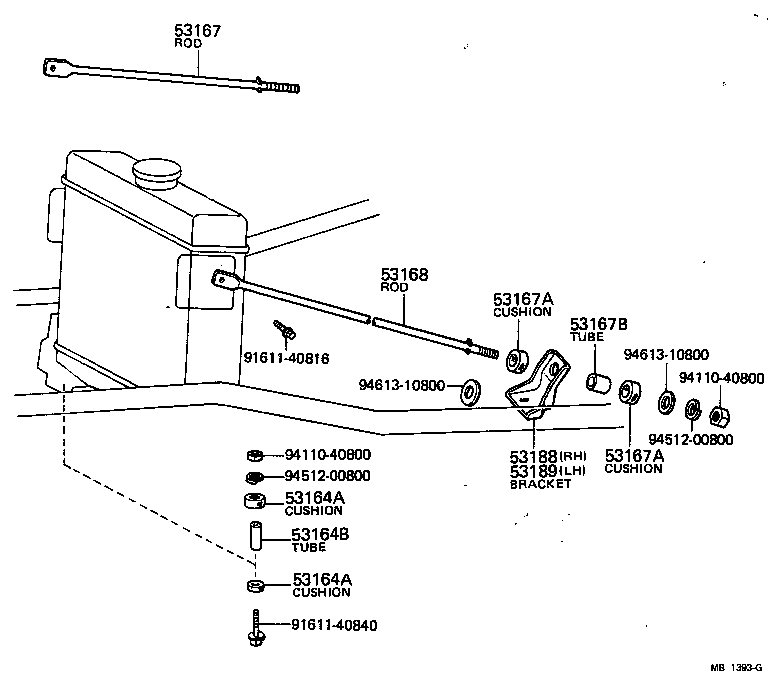

Click highlighted areas on diagram

diagram 53164A 53164A 53164B 53167 53167A 53167A 53167B 53168 53188 53189 9161140816 9161140840 9411040800 9411040800 9451200800 9451200800 9461310800 9461310800
Part # Description Qty Price
53164A - CUSHION, RADIATOR SUPPORT
90540-10022

KM1#

T=6.0

 2
90540-10011

KM1#

T=14.5

 2
53164A - CUSHION, RADIATOR SUPPORT
90540-10022

KM1#

T=6.0

 2
90540-10011

KM1#

T=14.5

 2
53164B - TUBE, RADIATOR SUPPORT
90440-11042

KM1#

 2
53167 - ROD, RADIATOR BRACE, RH
53167-27021

KM11

 1
53167-27020

KM11

 1
53167A - CUSHION(FOR RADIATOR BRACE ROD)
90540-10022

KM1#

T=6.0

 4
53167A - CUSHION(FOR RADIATOR BRACE ROD)
90540-10022

KM1#

T=6.0

 4
53167B - TUBE(FOR RADIATOR BRACE ROD)
90440-11043

KM1#

 2
53168 - ROD, RADIATOR BRACE, LH
53169-27020

KM11

 1
53188 - BRACKET, RADIATOR BRACE ROD, RH
53221-27010

KM11

 1
53189 - BRACKET, RADIATOR BRACE ROD, LH
53222-27010

KM11

 1
Common parts
91611-40816
91611-40840
94110-40800
94512-00800
94613-10800
