KM10V-Z (1976)

Toyota Liteace

Production Jul 1976 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)HRF,SRF

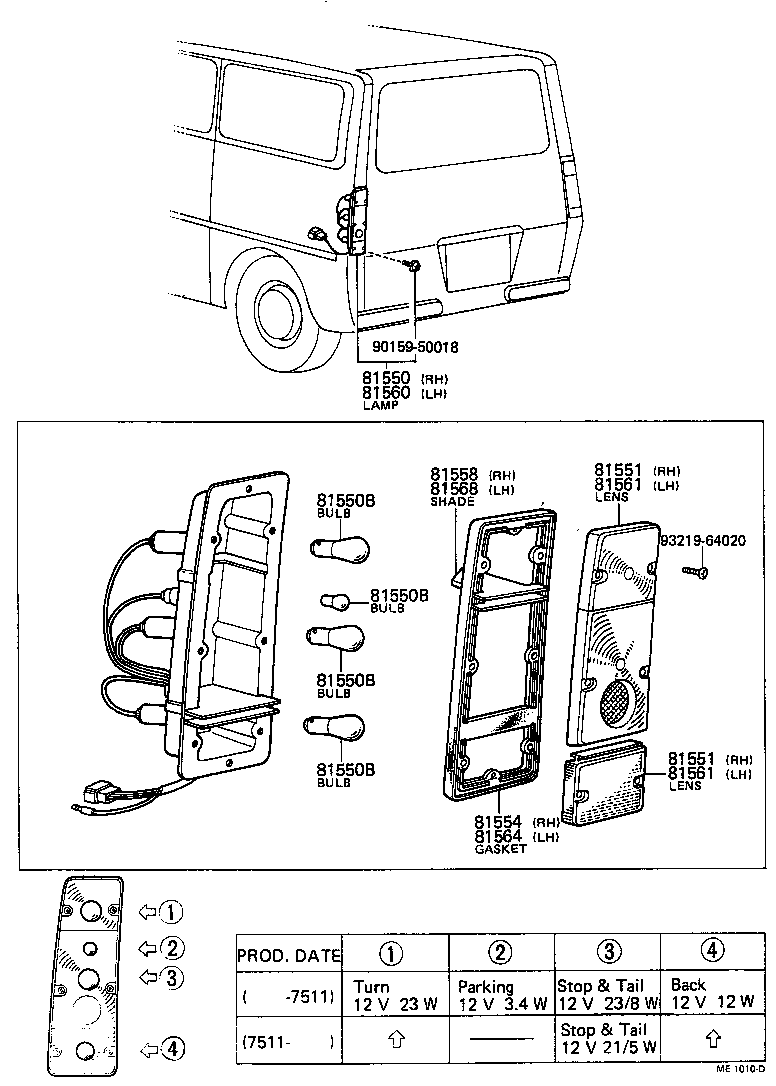

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81551 81554 81558 81560 81561 81561 81564 81568 9015950018 9321964020
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12034

KM10

12V 3.4W,12V 3.4W

 2
99132-21230

KM10

12V 23/8W,12V 23/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12034

KM10

12V 3.4W,12V 3.4W

 2
99132-21230

KM10

12V 23/8W,12V 23/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12034

KM10

12V 3.4W,12V 3.4W

 2
99132-21230

KM10

12V 23/8W,12V 23/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12034

KM10

12V 3.4W,12V 3.4W

 2
99132-21230

KM10

12V 23/8W,12V 23/8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81559-27010

KM1#..HRF,SRF

CLEAR

 1
81551 - LENS, REAR COMBINATION LAMP, RH
81559-27010

KM1#..HRF,SRF

CLEAR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-27010

KM1#..HRF,SRF

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-27010

KM1#..HRF,SRF

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81569-27010

KM1#..HRF,SRF

CLEAR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81569-27010

KM1#..HRF,SRF

CLEAR

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-27010

KM1#..HRF,SRF

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81567-27010

KM1#..HRF,SRF

 1
Common parts
90159-50018
93219-64020
