KM10V-Z (1976)

Toyota Liteace

Production Jul 1976 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7802)

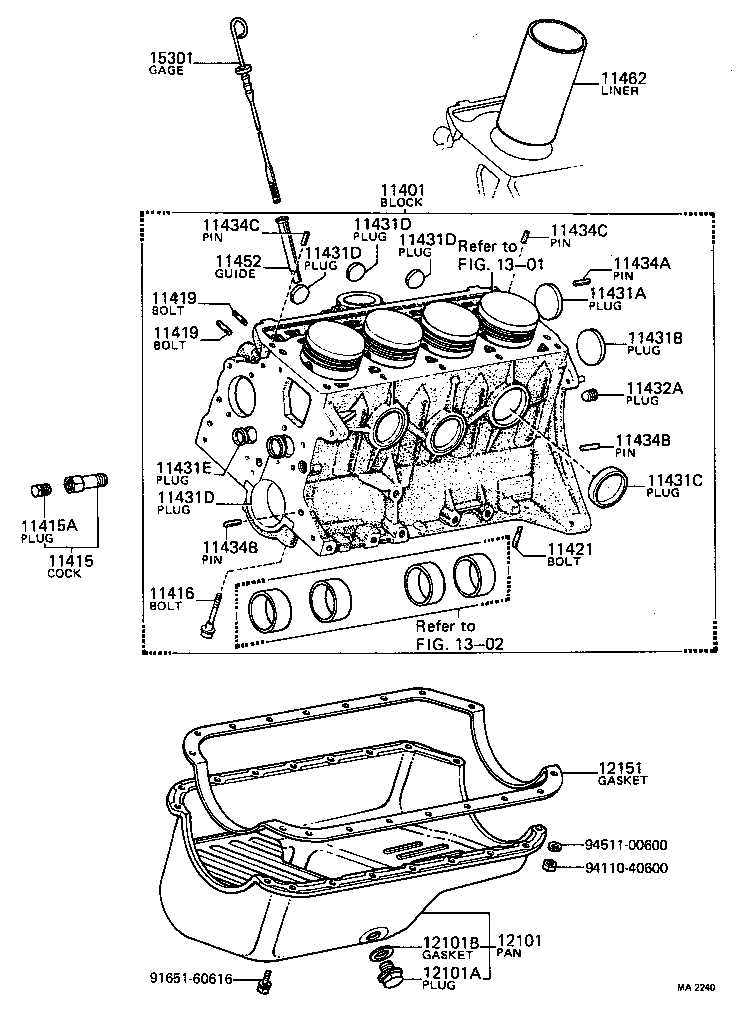

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11419 11419 11421 11431A 11431B 11431C 11431D 11431D 11431D 11431D 11431E 11432A 11434A 11434B 11434B 11434C 11434C 11452 11462 12101 12101A 12101B 12151 1301 1302 15301 9165160616 9411040600 9451100600
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29027

3K..KM10

 1
11401-29097

3KJ..KM10

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03873

3K..KM10

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

3K#,4KJ..KM1#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

3K#,4KJ..KM1#

 10
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08013

3K..KM10

L=34.5,S=9&16

 2
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08013

3K..KM10

L=34.5,S=9&16

 2
11421 - BOLT, STUD(FOR OIL PAN)
92132-40614

3K#..KM10

4T

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025

3K#,4KJ..KM1#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-45019

3K..KM10

OD=45

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-35014

3K..KM10

OD=35

 3
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-25011

3K..KM10

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-25011

3K..KM10

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-25011

3K..KM10

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-25011

3K..KM10

OD=25

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800

3K#,4KJ..KM1#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

3K#,4KJ..KM1#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

3K#,4KJ..KM1#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3K#,4KJ..KM1#

L=22,OD=10,L=22,OD=10

 2
90250-08120

3K#,4KJ..KM1#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3K#,4KJ..KM1#

L=22,OD=10,L=22,OD=10

 2
90250-08120

3K#,4KJ..KM1#

L=18,OD=8,L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08054

3K#..KM10

L=23,OD=8,L=23,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08054

3K#..KM10

L=23,OD=8,L=23,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-24010

3K#,4KJ..KM1#

 1
11462 - LINER, CYLINDER
11462-24010

3K..KM10

O/S 4.00

 4
12101 - PAN SUB-ASSY, OIL
12101-29095

3KJ..KM10

 1
12101-29016

3K..KM10

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-25054

3K..KM10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-25013

3K..KM10

 1
12151 - GASKET, OIL PAN
12151-12010

3KJ..KM10

 1
12151-24021

3KJ..KM10

 1
12151-24010

3K..KM10

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-24010

3K#,4KJ..KM1#

 1
Common parts
91651-60616
94110-40600
94511-00600
Linked diagrams
1301
1302
