KM10V- (1971)
Toyota Liteace
Production
May 1971
-
Nov 1975
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7610)

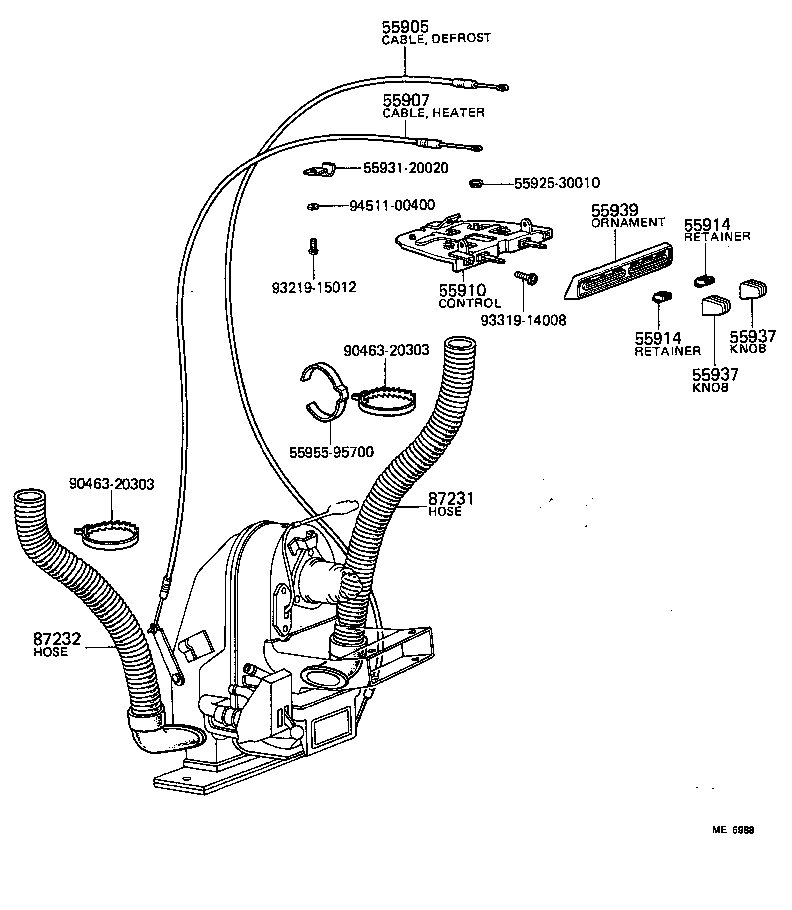

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55914 - RETAINER, HEATER CONTROL KNOB | ||||
| 55914-12020 |
KM10..SRF |
2 | ||
| 55914 - RETAINER, HEATER CONTROL KNOB | ||||
| 55914-12020 |
KM10..SRF |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-95700 |
KM10..SRF |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-95700 |
KM10..SRF |
2 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55939-95700 |
KM10..SRF |
1 | ||
| Common parts | ||||
| 55925-30010 | ||||
| 55931-20020 | ||||
| 55955-95700 | ||||
| 90463-20303 | ||||
| 93219-15012 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
