KM10V- (1971)
Toyota Liteace
Production
May 1971
-
Nov 1975
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7110)

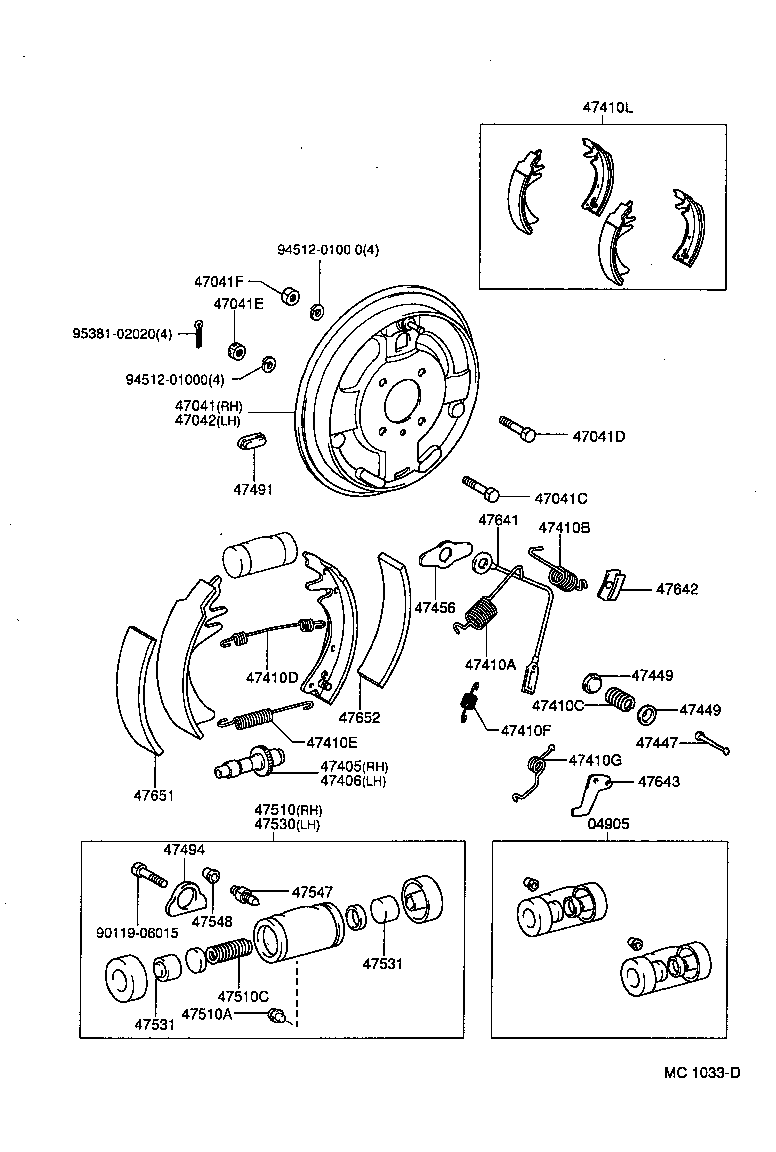

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04906-14020 |
KM10 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-27011 |
KM10 |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-10016 |
KM1# 10-1.25PX54-20 |
2 | ||
| 90102-10019 |
KM1# 10-1.25PX51-22 |
2 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-10148 |
KM1# 10-1.25PX27-16 |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90171-10024 |
KM1# |
4 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90170-10092 |
KM1# |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-27011 |
KM10 |
1 | ||
| 47405 - ADJUSTER ASSY, SHOE, RH(FOR FRONT BRAKE) | ||||
| 47405-20011 |
KM10 |
1 | ||
| 47406 - ADJUSTER ASSY, SHOE, LH(FOR FRONT BRAKE) | ||||
| 47406-20011 |
KM10 |
1 | ||
| 47410A - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26102 |
KM10 |
2 | ||
| 47410B - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26102 |
KM10 |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
KM10 |
2 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-16138 |
KM10 |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-16181 |
KM10 |
2 | ||
| 47410F - SPRING, TENSION (FOR FRONT BRAKE ADJUST CABLE) | ||||
| 90506-18180 |
KM10 |
1 | ||
| 47410G - SPRING, TORSION (FOR FRONT BRAKE AUTOMATIC ADJUST LEVER | ||||
| 90508-20120 |
KM10 RH. |
1 | ||
| 90508-20121 |
KM10 LH. |
1 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-20080 |
KM10 |
1 | ||
| 04494-20090 |
KM10 |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20010 |
KM10 |
2 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20010 |
KM10 |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20010 |
KM10 |
4 | ||
| 47456 - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-20010 |
KM10 |
2 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-20011 |
KM10 |
2 | ||
| 47491-30020 |
KM10 |
4 | ||
| 47494 - PLATE, FRONT BRAKE SEAL | ||||
| 47494-20010 |
KM10 |
2 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47530-29025 |
KM10 |
1 | ||
| 47510-29075 |
KM10 |
1 | ||
| 47510A - SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
KM10 |
2 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-10446 |
KM10 |
2 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47510-29025 |
KM10 |
1 | ||
| 47530-29075 |
KM10 |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47051-22010 |
KM10 |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47051-22010 |
KM10 |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-20010 |
KM10 |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
KM10 |
2 | ||
| 47641 - CABLE, AUTOMATIC ADJUST(FOR FRONT BRAKE) | ||||
| 47641-20011 |
KM10 |
1 | ||
| 47642 - GUIDE, AUTOMATIC ADJUST CABLE(FOR FRONT BRAKE) | ||||
| 47642-20010 |
KM10 |
1 | ||
| 47643 - LEVER, AUTOMATIC ADJUST, RH(FOR FRONT BRAKE) | ||||
| 47643-20011 |
KM10 |
1 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-20041 |
KM10 STD |
2 | ||
| 47651-20100 |
KM10 STD |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-20052 |
KM10 STD |
2 | ||
| 47651-20100 |
KM10 STD |
2 | ||
| Common parts | ||||
| 90119-06015 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
