Toyota Liteace KM10 BRAKE PEDAL & BRACKET

KM10V- (1971)

Toyota Liteace

Production May 1971 - Nov 1975

Engine 3K

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

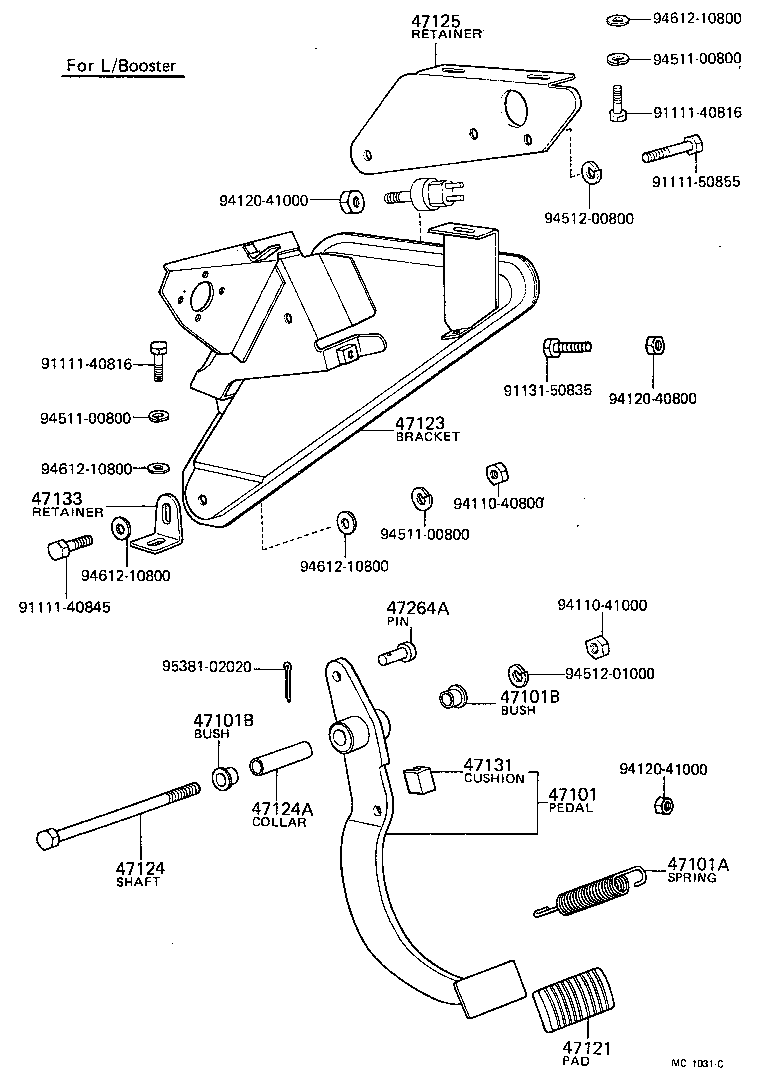

Click highlighted areas on diagram

Part #	Description	Period	Qty
47101 - PEDAL SUB-ASSY, BRAKE
47101-27010	KM10 L/BOOSTER	05/1971 - 09/1973	1
47101-27020	KM10 L/BOOSTER	09/1973 - 11/1975	1
47101-27030	KM10 W/BOOSTER	09/1973 - 11/1975	1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35386	KM10 W/BOOSTER	09/1973 - 11/1975	1
90506-14319	KM1# L/BOOSTER	05/1971 - 09/1979	1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007	KM1#	05/1971 - 09/1979	2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007	KM1#	05/1971 - 09/1979	2
47121 - PAD, BRAKE PEDAL
31321-12010	KM10	05/1971 - 02/1978	1
47123 - BRACKET, BRAKE PEDAL
55160-95701	KM10 W/BOOSTER	09/1973 - 11/1975	1
55160-95700	KM10 L/BOOSTER	05/1971 - 09/1973	1
55160-95702	KM10 L/BOOSTER	09/1973 - 11/1975	1
47124 - SHAFT, BRAKE PEDAL
90101-10373	KM10	05/1971 - 09/1973	1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003	KM1#	05/1971 - 09/1979	1
47125 - RETAINER, BRAKE PEDAL BRACKET
55706-95700	KM10 W/BOOSTER	09/1973 - 11/1975	1
55705-95700	KM10 L/BOOSTER	05/1971 - 09/1973	1
55705-95701	KM10 L/BOOSTER	09/1973 - 11/1975	1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-11010	KM1#	05/1971 - 09/1979	1
47133 - RETAINER, PEDAL BRACKET, LOWER
55772-95700	KM10 L/BOOSTER	05/1971 - 09/1973	1
47264A - PIN(FOR PUSH ROD)
90240-08088	KM10 L=21,OD=8	05/1971 - 11/1971	1
90240-08062	KM10 L=20,OD=8	11/1971 - 09/1973	1
Common parts
91111-40816
91111-40845
91111-50855
91131-50835
94110-40800
94110-41000
94120-40800
94120-41000
94511-00800
94512-00800
94512-01000
94612-10800
95381-02020

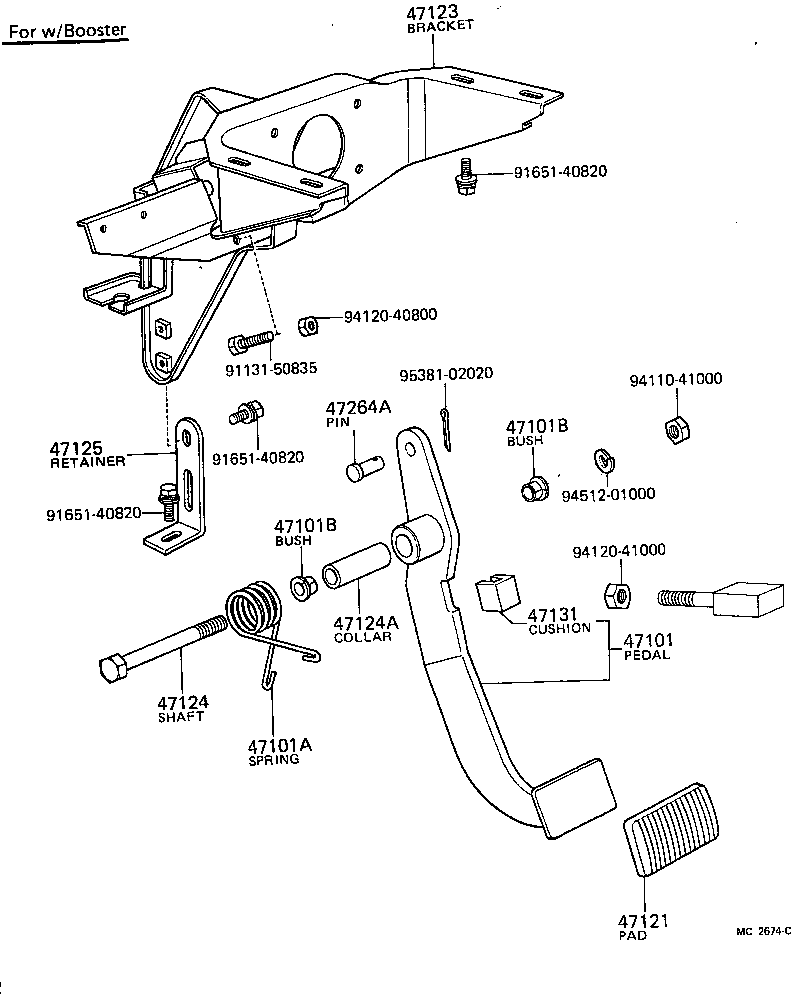

Click highlighted areas on diagram

Part #	Description	Period	Qty
47101 - PEDAL SUB-ASSY, BRAKE
47101-27010	KM10 L/BOOSTER	05/1971 - 09/1973	1
47101-27020	KM10 L/BOOSTER	09/1973 - 11/1975	1
47101-27030	KM10 W/BOOSTER	09/1973 - 11/1975	1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35386	KM10 W/BOOSTER	09/1973 - 11/1975	1
90506-14319	KM1# L/BOOSTER	05/1971 - 09/1979	1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007	KM1#	05/1971 - 09/1979	2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007	KM1#	05/1971 - 09/1979	2
47121 - PAD, BRAKE PEDAL
31321-12010	KM10	05/1971 - 02/1978	1
47123 - BRACKET, BRAKE PEDAL
55160-95701	KM10 W/BOOSTER	09/1973 - 11/1975	1
55160-95700	KM10 L/BOOSTER	05/1971 - 09/1973	1
55160-95702	KM10 L/BOOSTER	09/1973 - 11/1975	1
47124 - SHAFT, BRAKE PEDAL
90101-10373	KM10	05/1971 - 09/1973	1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003	KM1#	05/1971 - 09/1979	1
47125 - RETAINER, BRAKE PEDAL BRACKET
55706-95700	KM10 W/BOOSTER	09/1973 - 11/1975	1
55705-95700	KM10 L/BOOSTER	05/1971 - 09/1973	1
55705-95701	KM10 L/BOOSTER	09/1973 - 11/1975	1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-11010	KM1#	05/1971 - 09/1979	1
47264A - PIN(FOR PUSH ROD)
90240-08088	KM10 L=21,OD=8	05/1971 - 11/1971	1
90240-08062	KM10 L=20,OD=8	11/1971 - 09/1973	1
Common parts
91131-50835
91651-40820
94110-41000
94120-40800
94120-41000
94512-01000
95381-02020
