KM10V- (1971)

Toyota Liteace

Production May 1971 - Nov 1975
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

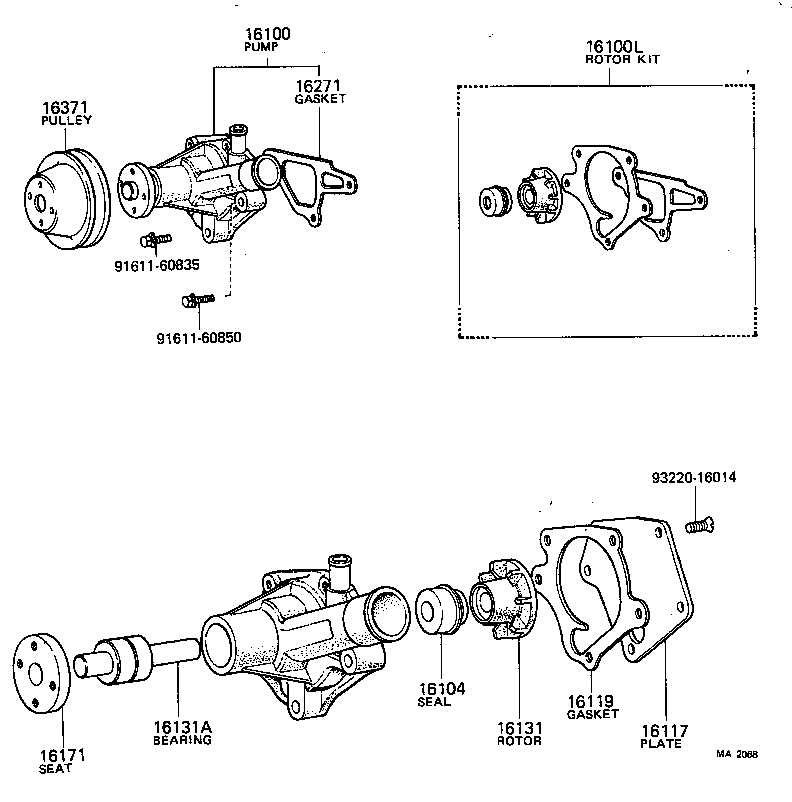

Click highlighted areas on diagram

diagram 16100 16100L 16104 16117 16119 16131 16131A 16171 16271 16371 9161160835 9161160850 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29016

3K..KM10

 1
16100L - ROTOR KIT, WATER PUMP
04162-22011

3K..KM10

 1
16104 - SEAL SET, WATER PUMP
16104-22010

3K..KM10

 1
16117 - PLATE, WATER PUMP
16117-22011

3K#..KM10

 1
16119 - GASKET, WATER PUMP BODY
16124-22010

3K#,4KJ..KM1#

 1
16131 - ROTOR, WATER PUMP
16131-22011

3K..KM10

 1
16131A - BEARING, WATER PUMP
90369-30001

3K..KM10

R16140RS-1

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24030

3K..KM10

 1
16171-22011

3K..KM10

 1
16271 - GASKET, WATER PUMP
16271-22010

3K#,4KJ..KM1#

 1
16371 - PULLEY, FAN
16371-22010

3K..KM10

 1
Common parts
91611-60835
91611-60850
93220-16014
