KM10V- (1975)
Toyota Liteace
Production
Nov 1975
-
Feb 1978
Engine
3KJ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7909)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

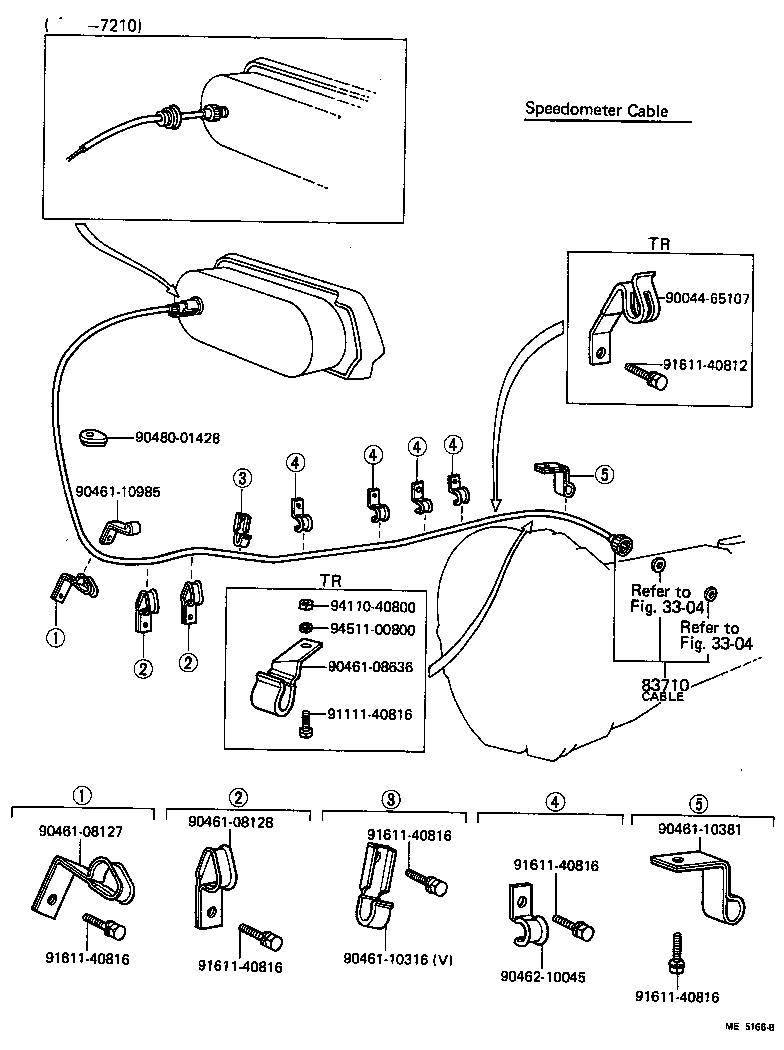

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29125 |
KM10 L=2800 |
1 | ||
| Common parts | ||||
| 90044-65107 | ||||
| 90461-08127 | ||||
| 90461-08128 | ||||
| 90461-08636 | ||||
| 90461-10316 | ||||
| 90461-10381 | ||||
| 90461-10985 | ||||
| 90462-10045 | ||||
| 90480-01428 | ||||
| 91111-40816 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 3304 | ||||
(7105-7909)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

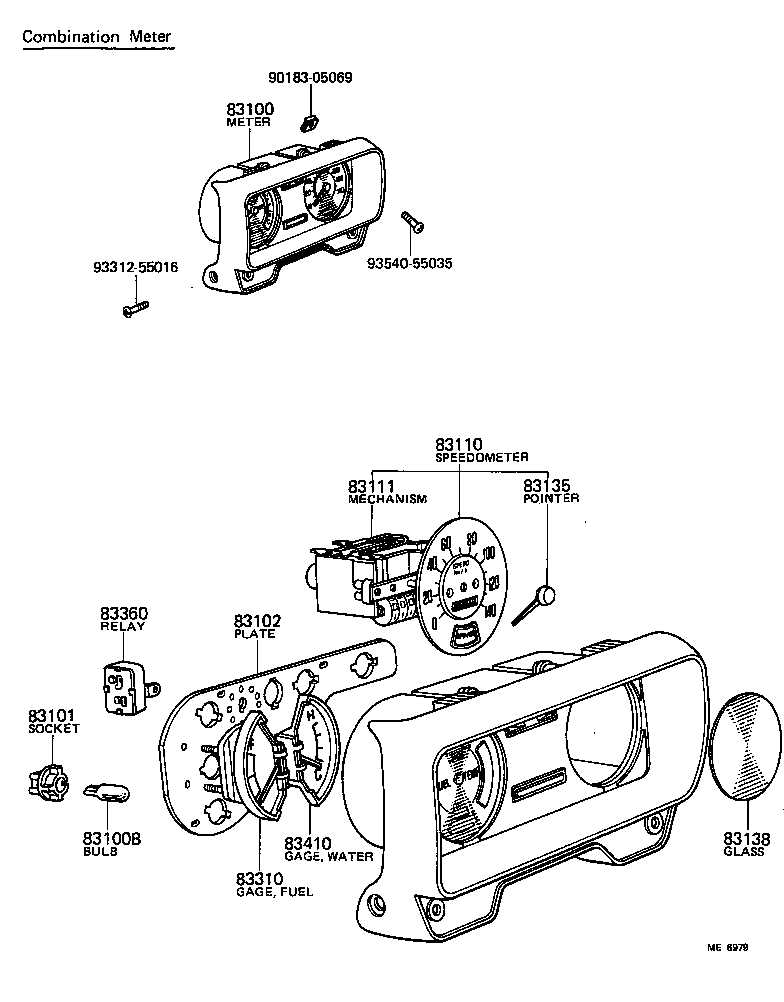

| 83100 - METER ASSY, COMBINATION | ||||
| 83100-27010 |
KM10 KM. |
1 | ||
| 83100-27023 |
KM10 MILE |
1 | ||
| 83100-27020 |
KM10 MILE |
1 | ||
| 83100-27014 |
KM10 KM. |
1 | ||
| 83100-27024 |
KM10 MILE&KM. |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KM1# 12V 3.4W,12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12010 |
KM1# |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-26011 |
KM10 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-27020 |
KM10 MILE |
1 | ||
| 83110-27010 |
KM10 KM. |
1 | ||
| 83110-27022 |
KM10 MILE&KM. |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-26011 |
KM1# |
1 | ||
| 83360 - RELAY ASSY, FUEL SENDER | ||||
| 83360-20011 |
KM1# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-26011 |
KM10 |
1 | ||
| Common parts | ||||
| 90183-05069 | ||||
| 93312-55016 | ||||
| 93540-55035 | ||||
