KM10V- (1975)

Toyota Liteace

Production Nov 1975 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

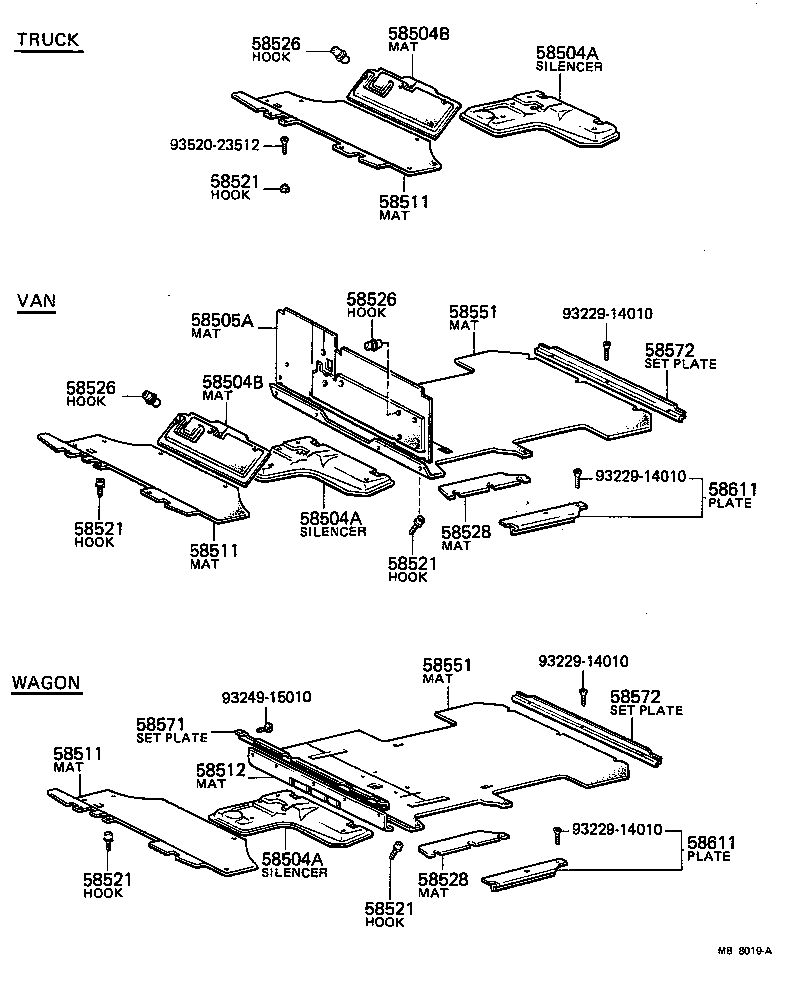

Click highlighted areas on diagram

diagram 58504A 58504A 58504A 58504B 58504B 58505A 58511 58511 58511 58512 58521 58521 58521 58521 58521 58526 58526 58526 58528 58528 58551 58551 58571 58572 58572 58611 58611 9322914010 9322914010 9322914010 9322914010 9324915010 9352023512
Part # Description Qty Price
58504A - SILENCER SUB-ASSY, ENGINE SERVICE HOLE COVER
58625-95701

KM10..SRF

 1
58625-95702

KM10..V

 1
58504A - SILENCER SUB-ASSY, ENGINE SERVICE HOLE COVER
58625-95701

KM10..SRF

 1
58625-95702

KM10..V

 1
58504A - SILENCER SUB-ASSY, ENGINE SERVICE HOLE COVER
58625-95701

KM10..SRF

 1
58625-95702

KM10..V

 1
58511 - MAT, FLOOR, FRONT
58501-9570001

KM10..TR,V

BLACK,BLACK

 1
58501-9570211

KM10

BLACK,BLACK

 1
58511 - MAT, FLOOR, FRONT
58501-9570001

KM10..TR,V

BLACK,BLACK

 1
58501-9570211

KM10

BLACK,BLACK

 1
58511 - MAT, FLOOR, FRONT
58501-9570001

KM10..TR,V

BLACK,BLACK

 1
58501-9570211

KM10

BLACK,BLACK

 1
58521 - HOOK, MALE, NO.1
90530-04004

KM10..SRF

 10
58521 - HOOK, MALE, NO.1
90530-04004

KM10..SRF

 10
58521 - HOOK, MALE, NO.1
90530-04004

KM10..SRF

 10
58521 - HOOK, MALE, NO.1
90530-04004

KM10..SRF

 10
58521 - HOOK, MALE, NO.1
90530-04004

KM10..SRF

 10
58551 - MAT, FLOOR, REAR
58503-9570806

KM10..V

DARK BROWN,BROWN

 1
58503-9570006

KM10..V

DARK BROWN,BROWN

 1
58551 - MAT, FLOOR, REAR
58503-9570806

KM10..V

DARK BROWN,BROWN

 1
58503-9570006

KM10..V

DARK BROWN,BROWN

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58612-95700

KM1#..HRF,SRF

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58612-95700

KM1#..HRF,SRF

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67913-95790

KM1#..HRF,SRF

 1
58611 - PLATE, REAR FLOOR MAT SET, SIDE
67913-95790

KM1#..HRF,SRF

 1
Common parts
93229-14010
93249-15010
93520-23512
