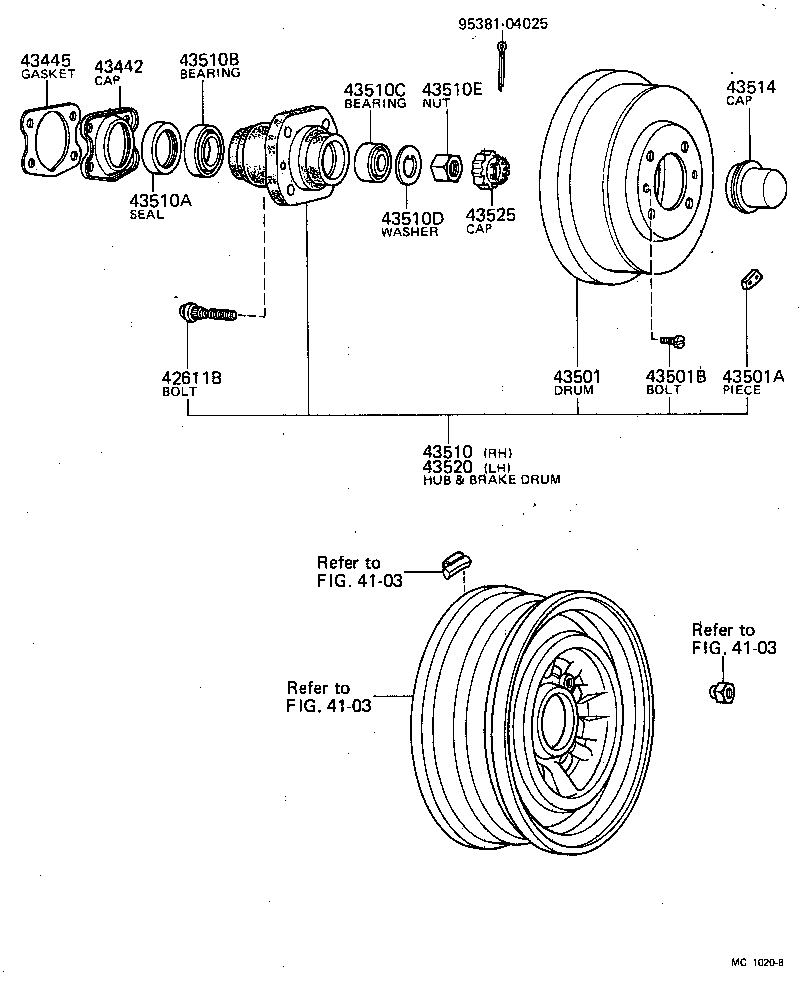

Toyota Liteace KM10 FRONT AXLE HUB

Part #	Description	Period	Qty
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02021	KM10 12-1.5PX38-24	05/1971 - 03/1977	8
43442 - CAP, KNUCKLE GREASE RETAINER, INNER
43442-20010	KM10	05/1971 - 10/1971	2
43445 - GASKET, KNUCKLE GREASE RETAINER CAP
43445-20010	KM10 T=1.0	05/1971 - 10/1971	2
43501 - DRUM SUB-ASSY, FRONT BRAKE
42431-22021	KM10	05/1971 - 10/1971	2
43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM)
90937-01097	KM1# 16.5G,16.5G.	05/1971 - 09/1979	2
90937-01099	KM1# 32.5G,32.5G.	05/1971 - 09/1979	2
90937-01096	KM1# 8.5G,8.5G.	05/1971 - 09/1979	2
90937-01100	KM1# 40.5G,40.5G.	05/1971 - 09/1979	2
90937-01098	KM1# 24.5G,24.5G.	05/1971 - 09/1979	2
43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING)
90113-10007	KM10	05/1971 - 06/1973	4
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-22041	KM10	05/1971 - 10/1971	1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-40108	KM1#	05/1971 - 09/1979	2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-26013	KM1#	05/1971 - 09/1979	2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017	KM1#	05/1971 - 09/1979	2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010	KM1#	05/1971 - 09/1979	2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137	KM1#	05/1971 - 09/1979	2
43514 - CAP, FRONT HUB GREASE
43514-20010	KM1#	05/1971 - 09/1979	2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43510-22041	KM10	05/1971 - 10/1971	1
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011	KM1#	05/1971 - 09/1979	2
Common parts
95381-04025
Linked diagrams
4103

KM10V- (1975)
