KM10V- (1975)

Toyota Liteace

Production Nov 1975 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7511-7802)

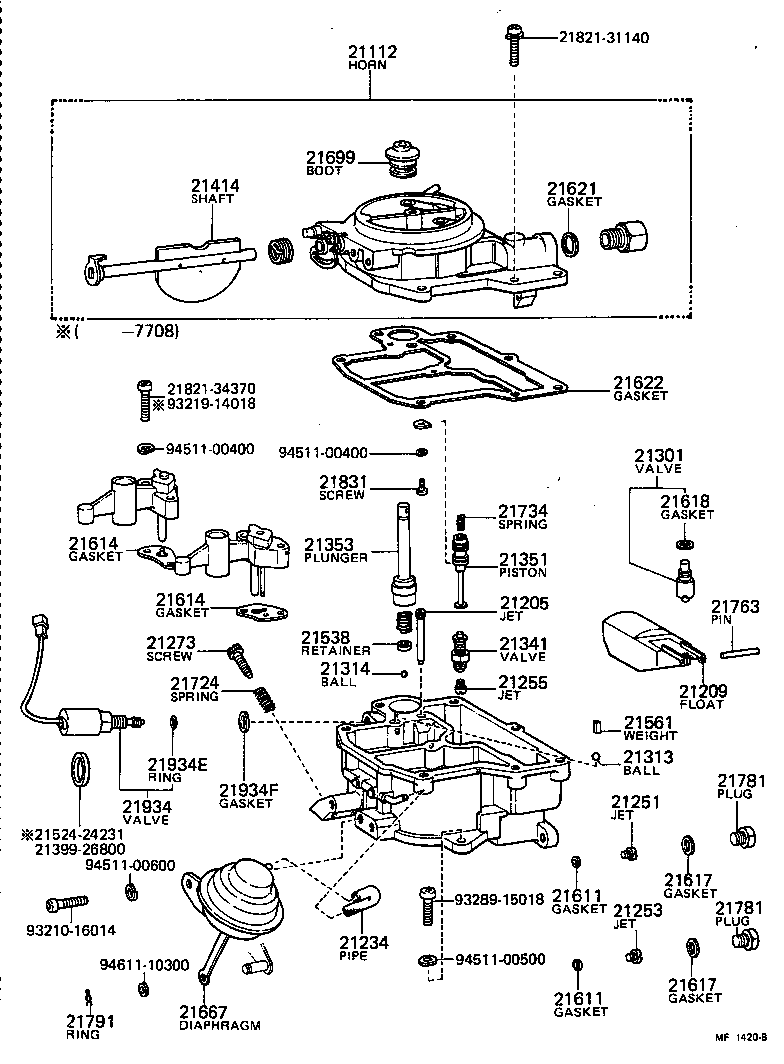

Click highlighted areas on diagram

diagram 21112 21205 21209 21234 21251 21253 21255 21273 21301 21313 21314 21341 21351 21353 2139926800 21414 2152424231 21538 21561 21611 21611 21614 21614 21617 21617 21618 21621 21622 21667 21699 21724 21734 21763 21781 21781 21791 2182131140 2182134370 21831 21934 21934E 21934F 9321016014 9321914018 9328915018 9451100400 9451100400 9451100500 9451100600 9461110300
Part # Description Qty Price
21112 - HORN, AIR
21112-24030

3K..KM10

 1
21012-24100

3KJ..KM10

 1
21205 - JET SUB-ASSY, SLOW
21205-22010

3K..KM10

ID=0.47

 1
90999-44145

3KJ..KM10

ID=0.45

 1
21209 - FLOAT SUB-ASSY
21209-24010

3K#..KM10

 1
21234 - PIPE OR HOSE
21234-24360

3KJ..KM10

 1
21251 - JET, 1ST MAIN
90999-41088

3KJ..KM10

ID=0.88

 1
21251-24010

3K..KM10

ID=1.08

 1
21253 - JET, 2ND MAIN
21253-24100

3K..KM10

ID=1.44

 1
90999-42159

3KJ..KM10

ID=1.59

 1
21255 - JET, POWER
21255-24100

3K..KM10

ID=0.675

 1
90999-43070

3KJ..KM10

ID=0.7

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-22011

3K..KM10

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-24010

3K..KM10

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

3K#,4KJ..KM1#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

3K#,4KJ..KM1#

 1
21341 - VALVE, POWER
21304-30010

3K..KM10

 1
21351 - PISTON, POWER
21708-22010

3K..KM10

 1
21353 - PLUNGER, PUMP
21305-22011

3K#,4KJ..KM1#

 1
21414 - SHAFT, CHOKE
21054-24010

3KJ..KM10

 1
21403-22011

3K..KM10

 1
21538 - RETAINER, BALL CHECK
21538-31010

3K#,4KJ..KM1#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

3K#,4KJ..KM1#

 1
21611 - GASKET, MAIN JET
21611-22010

3K#,4KJ..KM1#

 2
21611 - GASKET, MAIN JET
21611-22010

3K#,4KJ..KM1#

 2
21614 - GASKET, VENTURI
21614-22010

3K..KM10

 2
21614 - GASKET, VENTURI
21614-22010

3K..KM10

 2
21617 - GASKET, MAIN PASSAGE PLUG
21649-22010

3K..KM10

 2
21617 - GASKET, MAIN PASSAGE PLUG
21649-22010

3K..KM10

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-21010

3K..KM10

 1
21621 - GASKET, UNION NIPPLE
21633-24030

3K#,4KJ..KM1#

 1
21622 - GASKET, AIR HORN
21622-24010

3K..KM10

 1
21667 - DIAPHRAGM
21667-24100

3KJ..KM10

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-21061

3K#,4KJ..KM1#

 1
21724 - SPRING, THROTTLE ADJUSTING
21726-40010

3K..KM10

 1
21734 - SPRING, POWER PISTON
21734-22010

3K..KM10

 1
21763 - PIN, FLOAT LEVER
21763-29270

3K..KM10

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21677-22010

3K..KM10

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21677-22010

3K..KM10

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21831 - SCREW, POWER PISTON STOP
21842-33010

3K#,4KJ..KM1#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-24360

3KJ..KM10

 1
Common parts
21399-26800
21524-24231
21821-31140
21821-34370
93210-16014
93219-14018
93289-15018
94511-00400
94511-00500
94511-00600
94611-10300

(7511-7802)

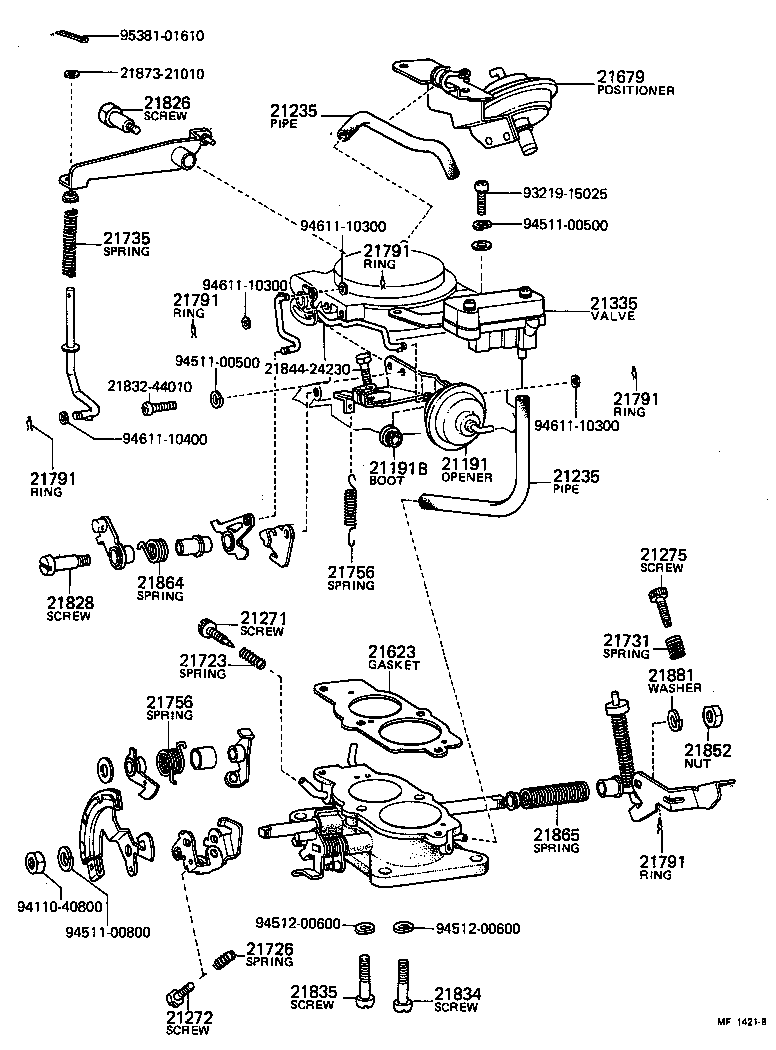

Click highlighted areas on diagram

diagram 21191 21191B 21235 21235 21271 21272 21275 21335 21623 21679 21723 21726 21731 21735 21756 21756 21791 21791 21791 21791 21791 21826 21828 2183244010 21834 21835 2184424230 21852 21864 21865 2187321010 21881 9321915025 9411040800 9451100500 9451100500 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110400 9538101610
Part # Description Qty Price
21191 - OPENER
21191-24101

3KJ..KM10

 1
21191-24102

3KJ..KM10

 1
21191B - BOOT(FOR OPENER)
21699-24360

3KJ..KM10

 1
21235 - PIPE OR HOSE, CONNECTING
21235-24100

3KJ..KM10

L=130,UPP

 1
21235-24160

3KJ..KM10

L=123,LWR

 1
21235 - PIPE OR HOSE, CONNECTING
21235-24100

3KJ..KM10

L=130,UPP

 1
21235-24160

3KJ..KM10

L=123,LWR

 1
21271 - SCREW, IDLE ADJUSTING
21271-24100

3K#..KM10

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21273-50010

3K..KM10

 1
21335 - VALVE, THERMOSTATIC
21061-24102

3KJ..KM10

 1
21335-22010

3K..KM10

 1
21623 - GASKET, BODY FLANGE
21623-22012

3K..KM10

 1
21679 - POSITIONER
21679-24103

3KJ..KM10

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

3K#,4KJ..KM1#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

3K#,4KJ..KM1#

 1
21735 - SPRING, PUMP ARM
21735-24360

3KJ..KM10

 1
21735-24030

3K..KM10

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21756-24360

3KJ..KM10

WD=1.4,CW=8

 1
21865-24360

3KJ..KM10

WD=1.2,CW=21

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21756-24360

3KJ..KM10

WD=1.4,CW=8

 1
21865-24360

3KJ..KM10

WD=1.2,CW=21

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3K#,4KJ..KM1#

 7
21826 - SCREW, PUMP ARM SET
21826-31011

3K..KM10

 1
21828 - SCREW, 1ST IDLE SET
21841-24360

3KJ..KM10

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

3K#,4KJ..KM1#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

3K#,4KJ..KM1#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

3K#,4KJ..KM1#

 1
21864 - SPRING(FOR 1ST THROTTLE ARM)
21864-24360

3KJ..KM10

 1
21865 - SPRING
21756-24310

3KJ..KM10

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

3K#,4KJ..KM1#

 1
Common parts
21832-44010
21844-24230
21873-21010
93219-15025
94110-40800
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
95381-01610
