KM10V- (1975)

Toyota Liteace

Production Nov 1975 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

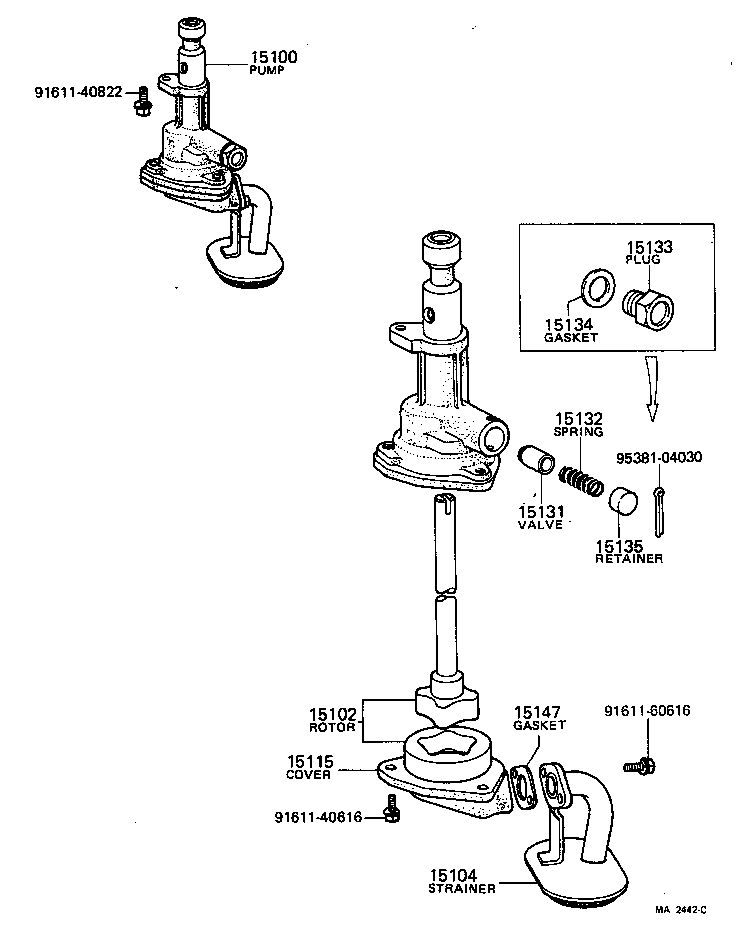

Click highlighted areas on diagram

diagram 15100 15102 15104 15115 15131 15132 15133 15134 15135 15147 9161140616 9161140822 9161160616 9538104030
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-22010

3K..KM10

 1
15102 - ROTOR SET, OIL PUMP
15102-22010

3K..KM10

 1
15104 - STRAINER SUB-ASSY, OIL
15104-22010

3K..KM10

 1
15115 - COVER, OIL PUMP
15115-22010

3K#,4KJ..KM1#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

3K..KM10

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

3K#,4KJ..KM1#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

3K..KM10

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

3K#..KM10

 1
15147 - GASKET, OIL STRAINER
15147-40010

3K#,4KJ..KM1#

 1
Common parts
91611-40616
91611-40822
91611-60616
95381-04030
