KM10G- (1971)
Toyota Liteace
Production
May 1971
-
Aug 1974
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7909)

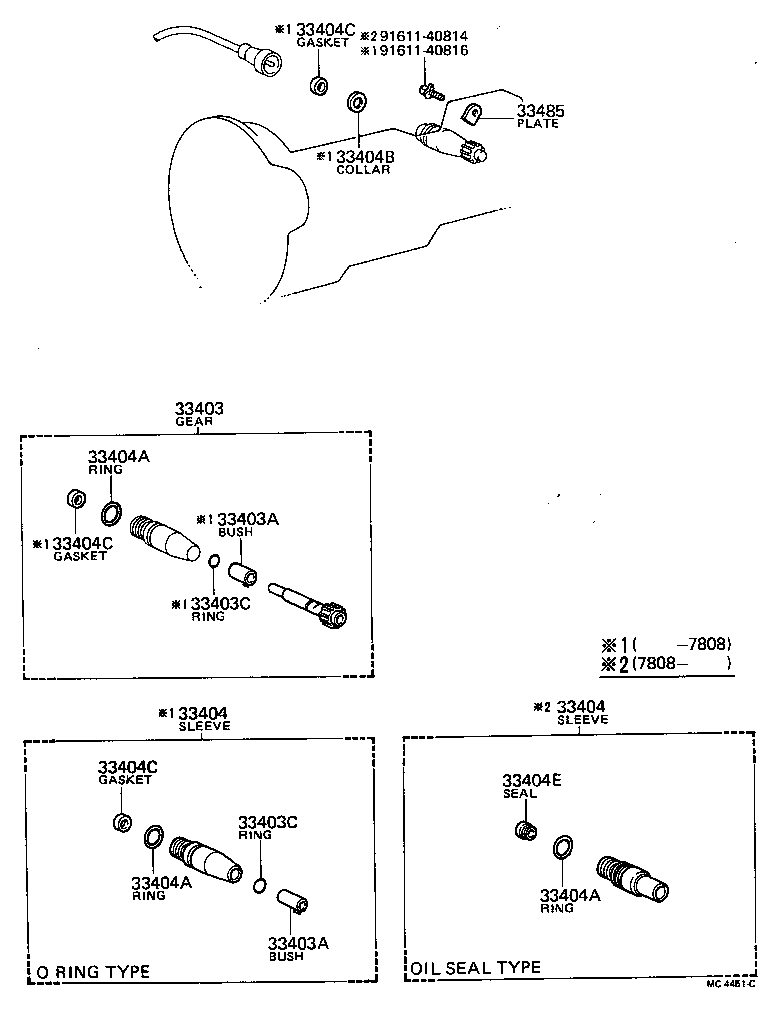

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-39055 |
KM10..WG N=16 |
1 | ||
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
KM1# |
1 | ||
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
KM1# |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09010 |
KM1# |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09010 |
KM1# |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-39016 |
KM1# |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-39016 |
KM1# |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
KM1# |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
KM1# |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
KM1# |
1 | ||
| 33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM) | ||||
| 90201-07069 |
KM1# |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
KM1# |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
KM1# |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
KM1# |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30010 |
KM1# |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
