KM10G- (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7404)

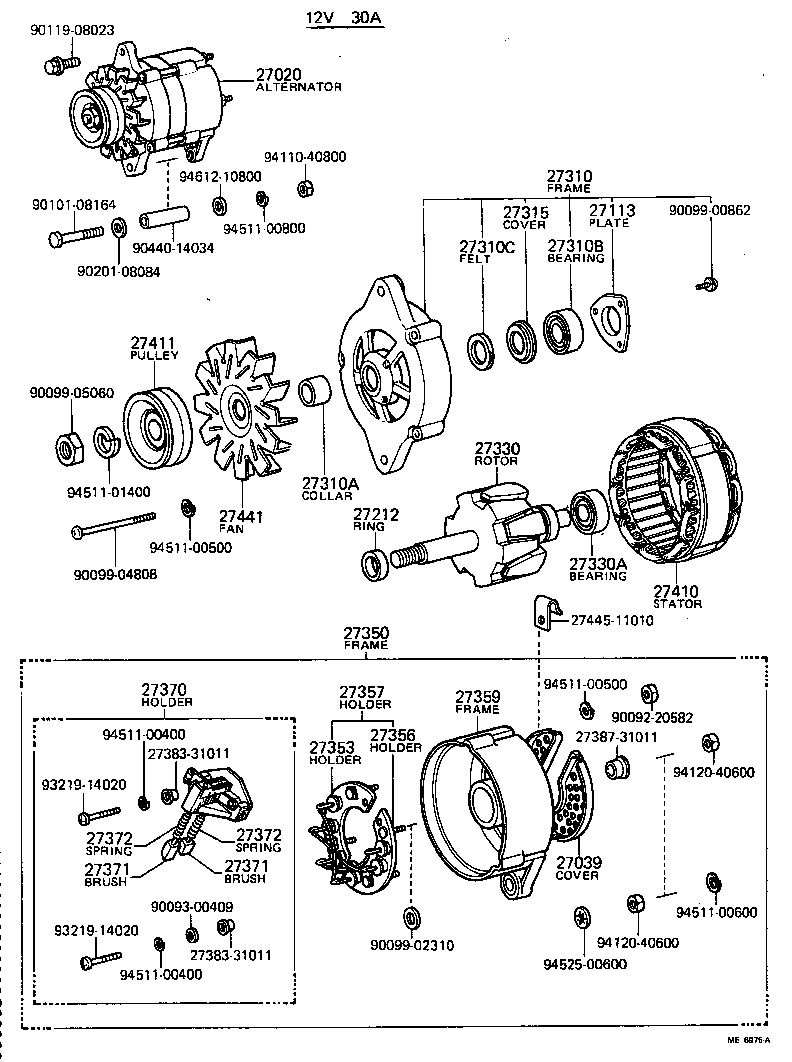

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27350 27353 27356 27357 27359 27370 27371 27371 27372 27372 2738331011 2738331011 2738731011 27410 27411 27441 2744511010 9009220582 9009300409 9009900862 9009902310 9009904808 9009905060 9010108164 9011908023 9020108084 9044014034 9321914020 9321914020 9411040800 9412040600 9412040600 9451100400 9451100400 9451100500 9451100500 9451100600 9451100800 9451101400 9452500600 9461210800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-22012

3K..KM10

12V 30A

 1
27020-24010

3K..KM10

12V 30A

 1
27020-24020

3K..KM10

12V 30A

 1
27039 - COVER, ALTERNATOR REAR END
27039-22012

3K..KM10

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

3K#,4KJ..KM1#

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

3K#,4KJ..KM1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

3K#,4KJ..KM1#

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19191

3K..KM10

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

3K#,4KJ..KM1#

6202Z

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

3K#,4KJ..KM1#

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

3K#,4KJ..KM1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

3K#,4KJ..KM1#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

3K#,4KJ..KM1#

6201Z

 1
27350 - FRAME ASSY, RECTIFIER END
27350-22022

3K..KM10

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-22012

3K..KM10

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-22011

3K..KM10

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22012

3K..KM10

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-22020

3K..KM10

 1
27359-22011

3K..KM10

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-22011

3K..KM10

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3K#,4KJ..KM1#

 2
27371 - BRUSH, ALTERNATOR
27371-31011

3K#,4KJ..KM1#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3K#,4KJ..KM1#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3K#,4KJ..KM1#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-22010

3K..KM10

 1
27411 - PULLEY, ALTERNATOR
27411-22011

3K..KM10

 1
27411-24010

3K..KM10

 1
27441 - FAN, ALTERNATOR
27441-22010

3K..KM10

 1
Common parts
27383-31011
27387-31011
27445-11010
90092-20582
90093-00409
90099-00862
90099-02310
90099-04808
90099-05060
90101-08164
90119-08023
90201-08084
90440-14034
93219-14020
94110-40800
94120-40600
94511-00400
94511-00500
94511-00600
94511-00800
94511-01400
94525-00600
94612-10800
