KM10-B (1976)

Toyota Liteace

Production Jul 1976 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

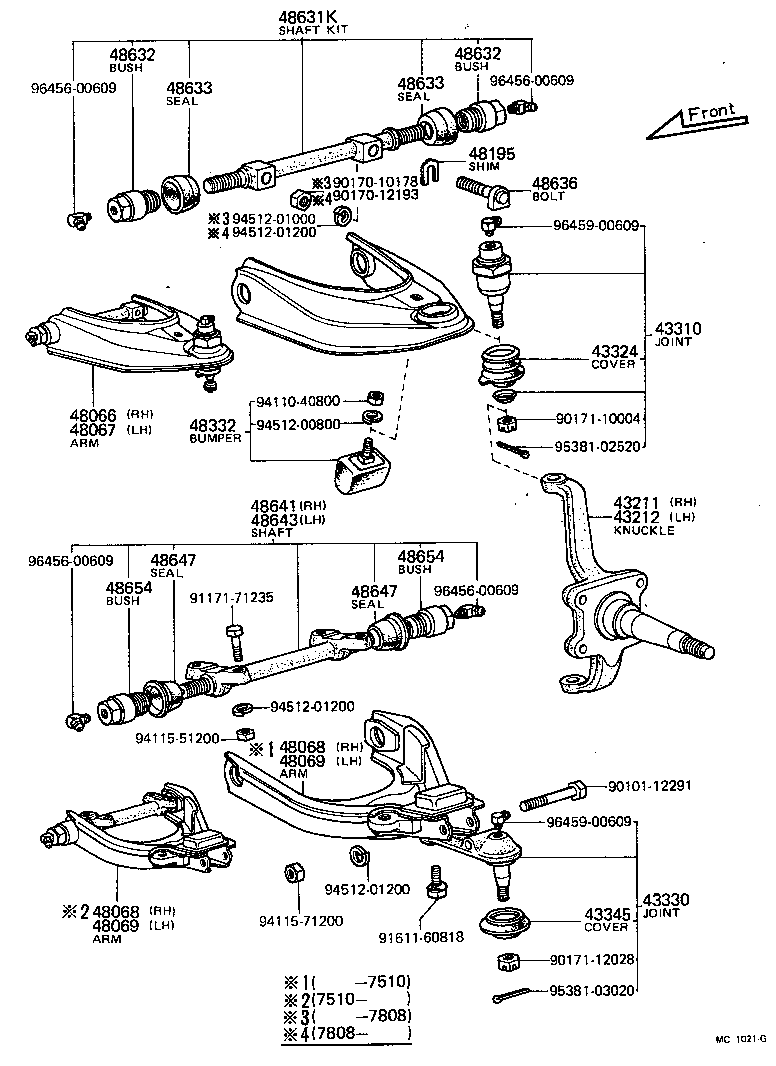

Click highlighted areas on diagram

diagram 43211 43212 43310 43324 43330 43345 48066 48067 48068 48068 48069 48069 48195 48332 48631K 48632 48632 48633 48633 48636 48641 48643 48647 48647 48654 48654 9010112291 9017010178 9017012193 9017110004 9017112028 9117171235 9161160818 9411040800 9411551200 9411571200 9451200800 9451201000 9451201200 9451201200 9451201200 9538102520 9538103020 9645600609 9645600609 9645600609 9645600609 9645900609 9645900609
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20010

KM1#

 1
43212 - KNUCKLE, STEERING, LH
43211-20010

KM1#

 1
43310 - JOINT ASSY, UPPER BALL
43310-29015

KM1#

 2
43324 - COVER, UPPER JOINT DUST
43324-20040

KM1#

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43340-29015

KM1#

LH.

 1
43330-29035

KM1#

RH.

 1
43345 - COVER, LOWER BALL JOINT DUST
43345-20040

KM1#

 2
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-27010

KM1#

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-27010

KM1#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48605-27010

KM10

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48605-27010

KM10

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48606-27010

KM10

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48606-27010

KM10

 1
48195 - SHIM, CAMBER ADJUST
48195-10011

KM10

T=2.3

 8
48197-10011

KM10

T=1.2

 4
48196-10011

KM10

T=1.6

 4
48332 - BUMPER, FRONT SPRING, NO.2
48305-29045

KM1#

 2
48631K - SHAFT KIT, UPPER SUSPENSION ARM
04485-20030

KM1#

 2
48632 - BUSH, UPPER ARM
48632-20020

KM1#

 4
48632 - BUSH, UPPER ARM
48632-20020

KM1#

 4
48633 - SEAL, UPPER ARM PIVOT DUST
48633-20030

KM1#

 4
48633 - SEAL, UPPER ARM PIVOT DUST
48633-20030

KM1#

 4
48636 - BOLT, UPPER ARM SET
48636-27010

KM1#

 4
48641 - SHAFT, LOWER ARM, RH
04486-30030

KM1#

 1
48643 - SHAFT, LOWER ARM, LH
04486-30030

KM1#

 1
48647 - SEAL, LOWER ARM BUSH DUST
48633-30020

KM1#

 4
48647 - SEAL, LOWER ARM BUSH DUST
48633-30020

KM1#

 4
48654 - BUSH, LOWER ARM
48632-30012

KM1#

 4
48654 - BUSH, LOWER ARM
48632-30012

KM1#

 4
Common parts
90101-12291
90170-10178
90170-12193
90171-10004
90171-12028
91171-71235
91611-60818
94110-40800
94115-51200
94115-71200
94512-00800
94512-01000
94512-01200
95381-02520
95381-03020
96456-00609
96459-00609
