KM10-B (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7408)T3 ; (7607-7909)T3

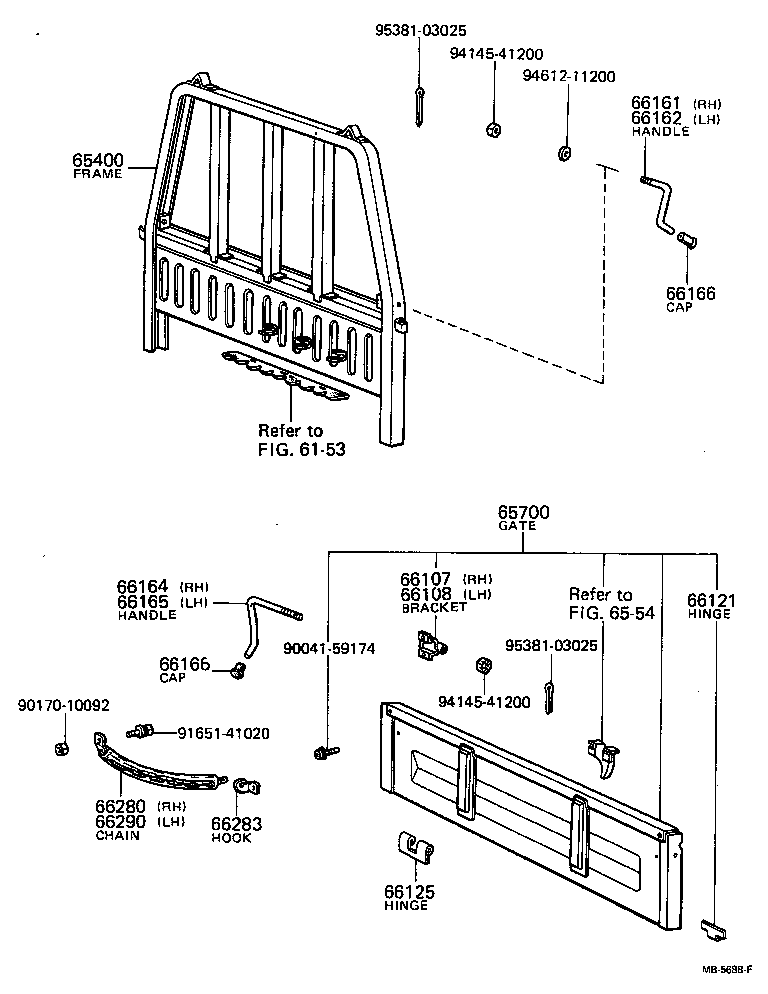

Click highlighted areas on diagram

diagram 6153 65400 6554 65700 66107 66108 66121 66125 66161 66162 66164 66165 66166 66166 66280 66283 66290 9004159174 9017010092 9165141020 9414541200 9414541200 9461211200 9538103025 9538103025
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-87402

KM10..T3

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-87402

KM10..T3

 1
66107 - BRACKET SUB-ASSY, TAIL GATE, RH
66107-87402

KM10..T3

 1
66108 - BRACKET SUB-ASSY, TAIL GATE, LH
66108-87401

KM10..T3

 1
66121 - HINGE, TAIL GATE, MALE
66111-87402

KM10..T3

 5
66125 - HINGE, TAIL GATE, FEMALE
66112-87402

KM10..T3

 3
66161 - HANDLE, SIDE GATE LATCH, RH
66161-87402

KM10..T3

 1
66162 - HANDLE, SIDE GATE LATCH, LH
66162-87401

KM10..T3

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66163-87401

KM10..T3

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66164-87401

KM10..T3

 1
66166 - CAP, GATE LATCH HANDLE
66165-95110

KM10..T3

 2
66166 - CAP, GATE LATCH HANDLE
66165-95110

KM10..T3

 2
Common parts
90041-59174
90170-10092
91651-41020
94145-41200
94612-11200
95381-03025
Linked diagrams
6153
6554
