KM10-B (1971)
Toyota Liteace
Production
May 1971
-
Aug 1974
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7408)TR ; (7607-7909)T3

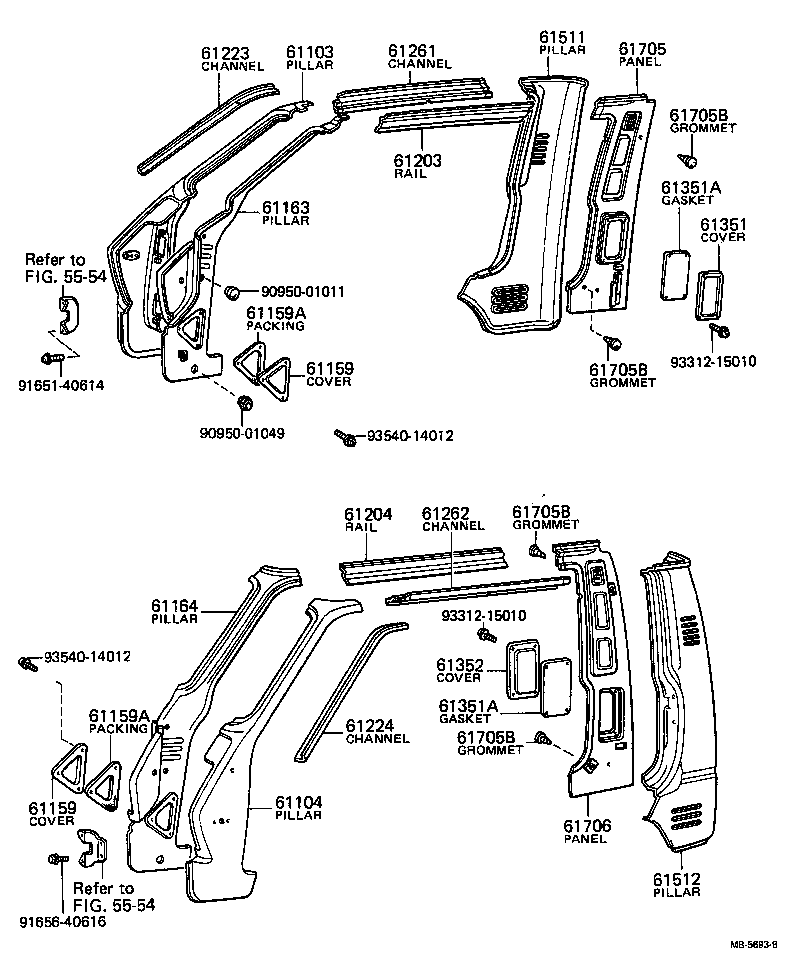

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-95700 |
KM10..TR,V |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61104-95700 |
KM10 |
1 | ||
| 61104-95701 |
KM10 |
1 | ||
| 61159 - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61181-95701 |
KM10 |
2 | ||
| 61159 - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61181-95701 |
KM10 |
2 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61105-95700 |
KM1# |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61106-95700 |
KM1# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61355-87401 |
KM10..TR |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61306-87401 |
KM10..TR |
1 | ||
| 61223 - CHANNEL, ROOF DRIP, FRONT RH | ||||
| 61261-87401 |
KM10..TR |
1 | ||
| 61224 - CHANNEL, ROOF DRIP, FRONT LH | ||||
| 61262-87401 |
KM10..TR |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61361-87401 |
KM10..TR |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61362-87401 |
KM10..TR |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61511-87401 |
KM10..TR |
1 | ||
| 61351A - GASKET(FOR CENTER BODY INNER COVER) | ||||
| 90044-30073 |
KM10..TR |
8 | ||
| 61351A - GASKET(FOR CENTER BODY INNER COVER) | ||||
| 90044-30073 |
KM10..TR |
8 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61511-87401 |
KM10..TR |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61201-87401 |
KM10..TR |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61202-87401 |
KM10..TR |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61205-87401 |
KM10..TR |
1 | ||
| 61705B - GROMMET(FOR ROOF SIDE INNER PANEL) | ||||
| 90950-01126 |
KM10..TR |
4 | ||
| 61705B - GROMMET(FOR ROOF SIDE INNER PANEL) | ||||
| 90950-01126 |
KM10..TR |
4 | ||
| 61705B - GROMMET(FOR ROOF SIDE INNER PANEL) | ||||
| 90950-01126 |
KM10..TR |
4 | ||
| 61705B - GROMMET(FOR ROOF SIDE INNER PANEL) | ||||
| 90950-01126 |
KM10..TR |
4 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61206-87401 |
KM10..TR |
1 | ||
| Common parts | ||||
| 90950-01011 | ||||
| 90950-01049 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93312-15010 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 5554 | ||||
