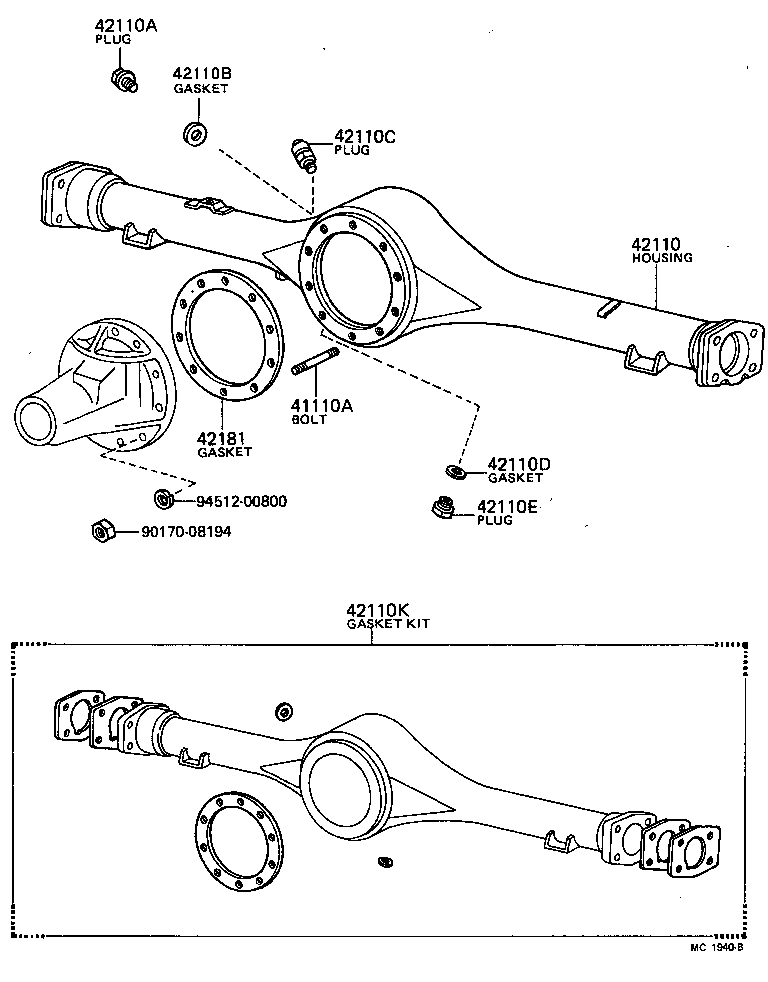

Toyota Liteace KM10 REAR AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08025	KM10	05/1971 - 03/1973	10
42110 - HOUSING ASSY, REAR AXLE
42110-27010	KM10	05/1971 - 08/1973	1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049	KM1#	05/1971 - 09/1979	1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010	KM1#	05/1971 - 09/1979	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03019	KM1#	05/1971 - 09/1979	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010	KM1#	05/1971 - 09/1979	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057	KM1#	05/1971 - 09/1979	1
42110K - GASKET KIT, DIFFERENTIAL CARRIER
04412-23010	KM1#	05/1971 - 09/1979	1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-30010	KM1#	05/1971 - 09/1979	1
Common parts
90170-08194
94512-00800

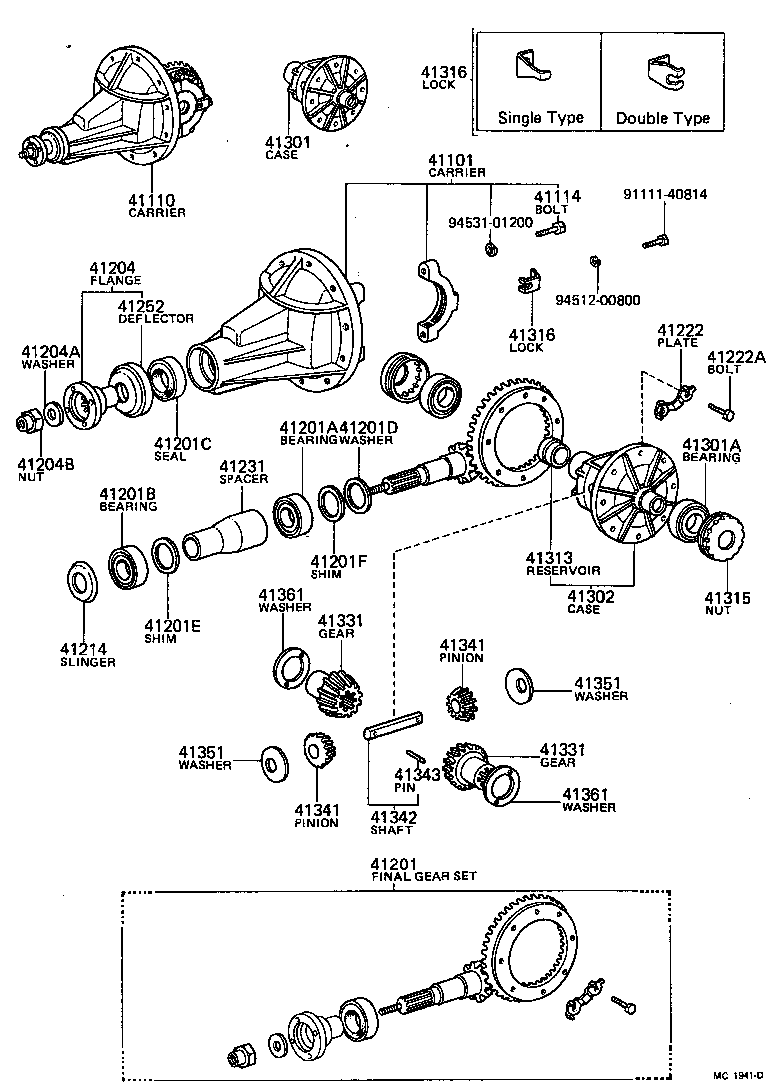

Part #	Description	Period	Qty
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-30010	KM1#	05/1971 - 09/1979	1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-27010	KM10..TR R=40:7=5.714	05/1971 - 11/1971	1
41110-27023	KM10..TR,V R=37:7=5.286	01/1972 - 08/1973	1
41110-27020	KM10..TR,V R=37:7=5.286	11/1971 - 01/1972	1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12056	KM10	05/1971 - 10/1971	4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-29145	KM10..TR R=40:7	05/1971 - 11/1971	1
41201-39096	KM10..TR,V R=37:7	11/1971 - 01/1972	1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
97609-32307	KM1#	05/1971 - 09/1979	1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
97609-30306	KM1#	05/1971 - 12/1978	1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38028	KM10	05/1971 - 08/1973	1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90209-35025	KM10 T=3.08-3.10	05/1971 - 01/1972	1
90209-35027	KM10 T=3.14-3.16	05/1971 - 01/1972	1
90209-35022	KM10 T=2.99-3.01	05/1971 - 01/1972	1
90209-35028	KM10 T=3.17-3.19	05/1971 - 01/1972	1
90209-35029	KM10 T=3.20-3.22	05/1971 - 01/1972	1
90209-35023	KM10 T=3.02-3.04	05/1971 - 01/1972	1
90209-35058	KM10 T=3.26-3.28	05/1971 - 01/1972	1
90209-35026	KM10 T=3.11-3.13	05/1971 - 01/1972	1
90209-35024	KM10 T=3.05-3.07	05/1971 - 01/1972	1
90209-35030	KM10 T=3.23-3.25	05/1971 - 01/1972	1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90564-30032	KM10 OD=39,T=0.3	05/1971 - 11/1975	1
41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
90564-35067	KM10 OD=45,T=0.3	05/1971 - 01/1972	1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-30010	KM10	05/1971 - 01/1972	1
41204-30011	KM10	01/1972 - 08/1973	1
41204-21010	KM10	08/1973 - 01/1974	1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-18182	KM10	05/1971 - 07/1972	1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18060	KM1#	05/1971 - 09/1979	1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-30020	KM10	05/1971 - 01/1972	1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-30030	KM1#	05/1971 - 09/1979	4
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353	KM1#	05/1971 - 09/1979	8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-30010	KM10 L=61.000-61.025	05/1971 - 01/1972	1
41233-30010	KM10 L=61.090-61.115	05/1971 - 01/1972	1
41234-30010	KM10 L=61.135-61.160	05/1971 - 01/1972	1
41235-30010	KM10 L=61.180-61.205	05/1971 - 01/1972	1
41236-30010	KM10 L=61.225-61.250	05/1971 - 01/1972	1
41232-30010	KM10 L=61.045-61.070	05/1971 - 01/1972	1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
37341-30020	KM10	05/1971 - 01/1974	1
41301 - CASE SUB-ASSY, REAR DIFFERENTIAL
41301-30041	KM1#	05/1971 - 09/1979	1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45001	KM10 NACHI	05/1971 - 08/1973	2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41302-30021	KM1#	05/1971 - 09/1979	1
41313 - RESERVOIR, DIFFERENTIAL CASE OIL
41313-30020	KM1#	05/1971 - 09/1979	2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010	KM1#	05/1971 - 09/1979	2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010	KM1# SINGLE TYPE	05/1971 - 09/1979	2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010	KM1# SINGLE TYPE	05/1971 - 09/1979	2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30020	KM1# N=16	05/1971 - 09/1979	2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30020	KM1# N=16	05/1971 - 09/1979	2
41341 - PINION, REAR DIFFERENTIAL
41341-30010	KM1# N=10	05/1971 - 09/1979	2
41341 - PINION, REAR DIFFERENTIAL
41341-30010	KM1# N=10	05/1971 - 09/1979	2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-39015	KM1#	05/1971 - 09/1979	1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-06058	KM1#	05/1971 - 09/1979	1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30031	KM1#	05/1971 - 09/1979	2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30031	KM1#	05/1971 - 09/1979	2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-30010	KM1# T=1.7-1.6	05/1971 - 09/1979	2
41362-30020	KM1# T=1.6-1.5	05/1971 - 09/1979	2
41361-30020	KM1# T=1.5-1.4	05/1971 - 09/1979	2
41364-30010	KM1# T=1.8-1.7	05/1971 - 09/1979	2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41363-30010	KM1# T=1.7-1.6	05/1971 - 09/1979	2
41362-30020	KM1# T=1.6-1.5	05/1971 - 09/1979	2
41361-30020	KM1# T=1.5-1.4	05/1971 - 09/1979	2
41364-30010	KM1# T=1.8-1.7	05/1971 - 09/1979	2
Common parts
91111-40814
94512-00800
94531-01200

KM10-B (1971)

(7105-7909)

(7105-7909)
