KM10- (1971)
Toyota Liteace
Production
May 1971
-
Aug 1974
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7909)

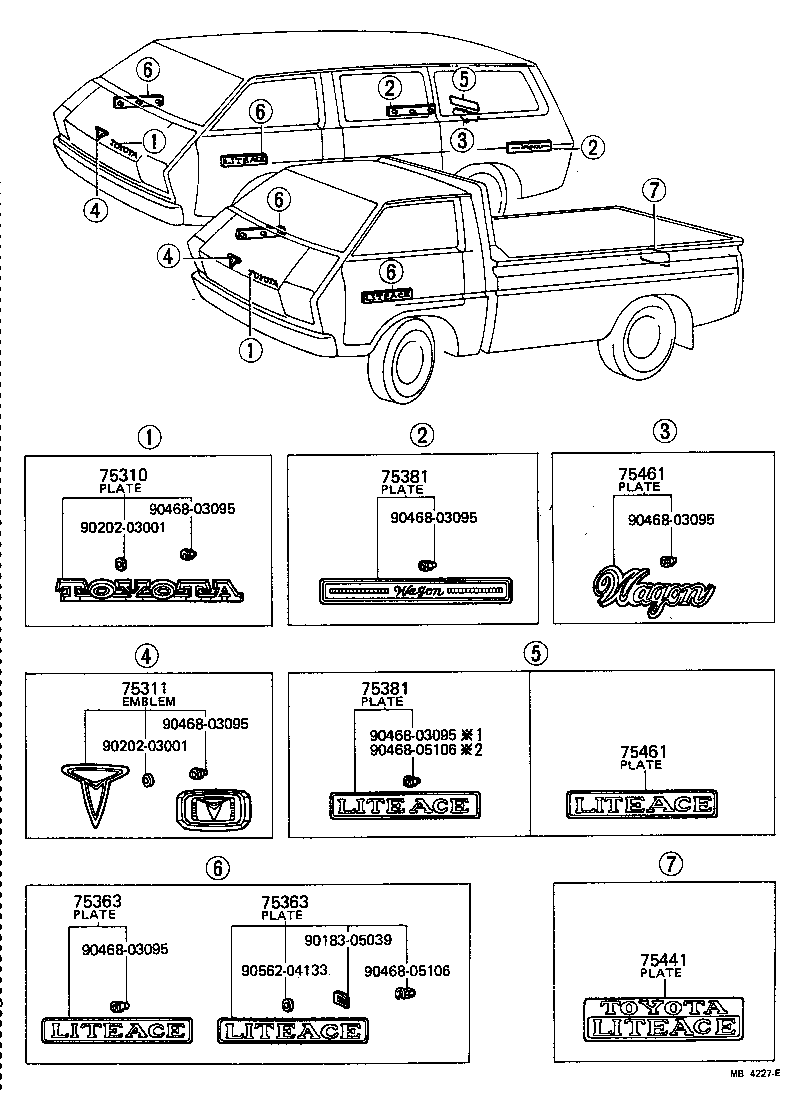

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75310 - PLATE ASSY, FRONT PANEL | ||||
| 75312-95700 |
KM10 TOYOTA |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-95700 |
KM10 |
1 | ||
| 75363 - PLATE, DOOR NAME | ||||
| 75361-95700 |
KM10 LITEACE |
2 | ||
| 75363 - PLATE, DOOR NAME | ||||
| 75361-95700 |
KM10 LITEACE |
2 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75471-87401 |
KM10..TR TOYOTA LITEACE |
1 | ||
| Common parts | ||||
| 90183-05039 | ||||
| 90202-03001 | ||||
| 90468-03095 | ||||
| 90468-05106 | ||||
| 90562-04133 | ||||
