KM10- (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

Click highlighted areas on diagram

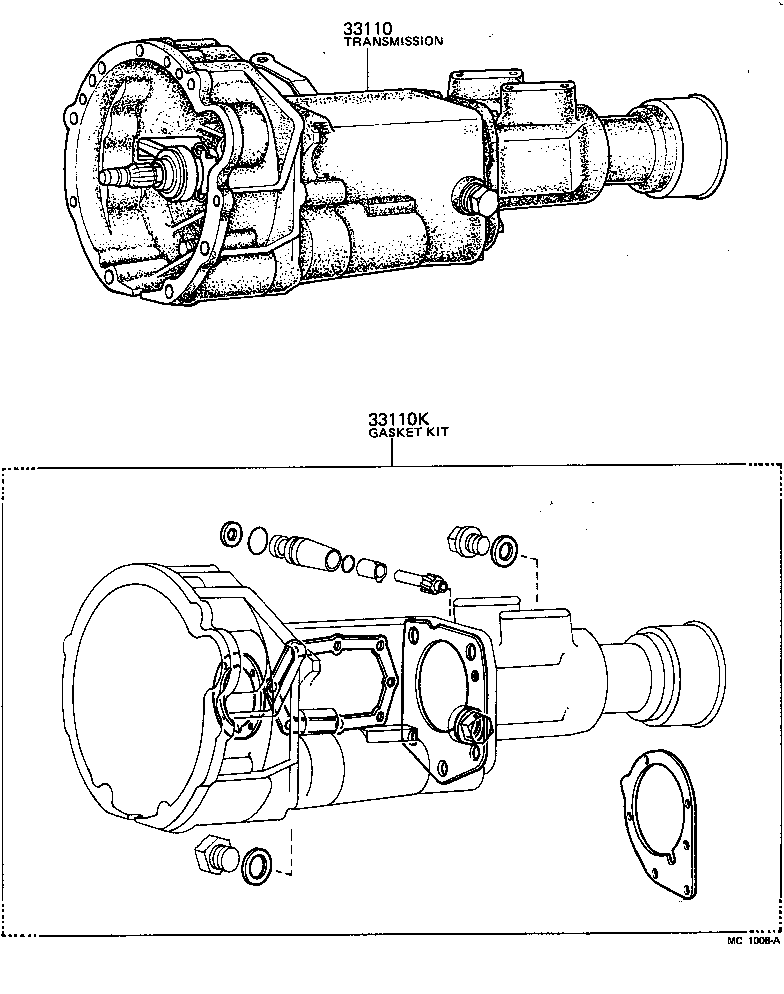

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-27010

KM10..TR

SMG.R=19:4

 1
33110-27021

KM10..TR,V

SMG.R=17:4

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35020

KM10

 1
