CM36RV-MRSBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

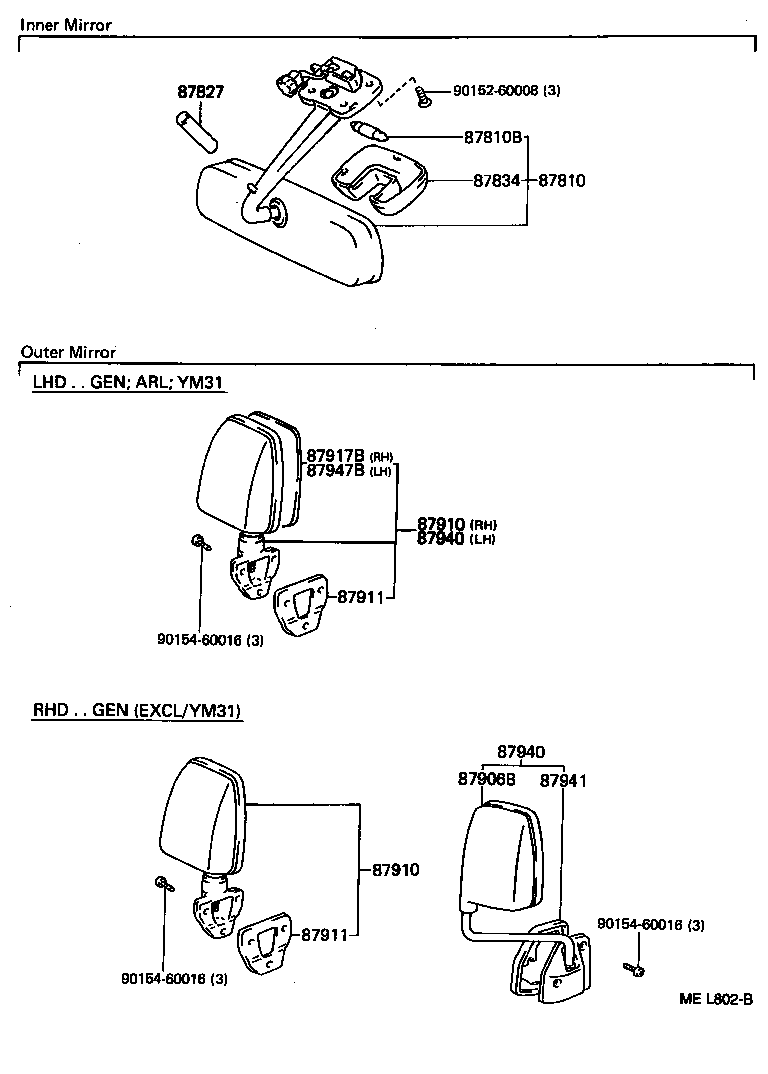

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 87810 87810B 87827 87834 87906B 87910 87910 87911 87911 87917B 87940 87940 87941 87947B 9015260008 9015460016 9015460016 9015460016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95704

CM36..5H;CM36..ARL;KM37,YM35;CM36,KM36..SRF

 1
87810-95705

KM36..03S..ARL;CM36,KM37,YM35..(4FC,4H,5F)..(02S,09S)

DAY & NIGHT TYPE

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

CM36,KM3#,YM3#

12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-22020

CM36,KM3#,YM3#

L=35

 1
87828-23010

CM36,KM3#,YM3#

L=38.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

CM36,KM3#,YM3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95714

CM36,KM36,YM30,35..ARL

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95714

CM36,KM36,YM30,35..ARL

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87959-95701

CM36,KM3#,YM30,35

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87959-95701

CM36,KM3#,YM30,35

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95718

CM36,KM36,YM30,35..ARL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95718

CM36,KM36,YM30,35..ARL

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87959-95701

KM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL

 1
Common parts
90152-60008
90154-60016

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 87907 87950 87951 9015960275
Part # Description Qty Price
Common parts
90159-60275
