CM36RV-MRSBEQ (1988)
Toyota Liteace

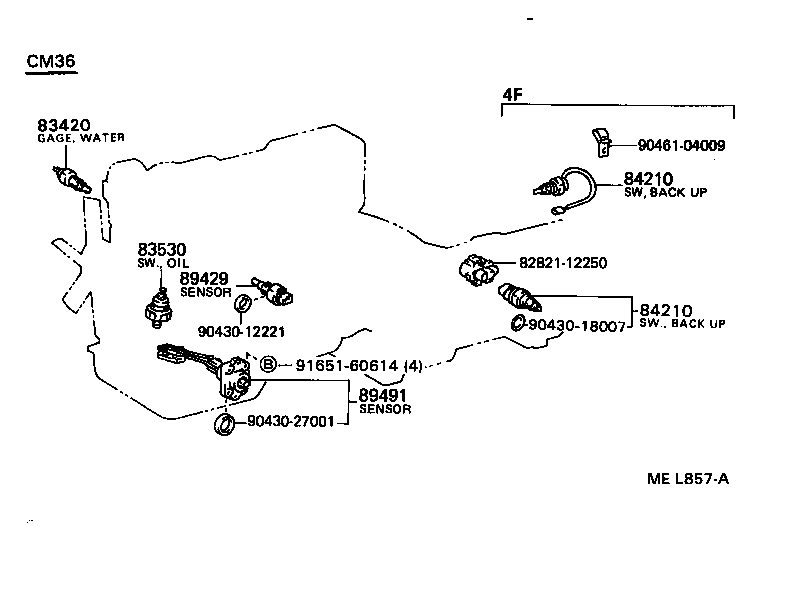

ILLUST NO. 1 OF 6(8808- )CM36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM36,KM3#,YM3# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM36 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CM36,KM30,36,YM3#..5F,5H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CM36,KM30,36,YM3#..5F,5H |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CM36..ARL |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27030 |
CM36..ARL |
1 | ||
| Common parts | ||||
| 82821-12250 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-04009 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-27120 |
CM36 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CM36 |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-64050 |
CM36..ARL |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06061 | ||||
| 91651-40814 | ||||
ILLUST NO. 3 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29585 |
CM36,KM36,YM30,35..RHD |
1 | ||
| 84112-29605 |
CM36,YM30,35..ARL W(TILT STEERING) |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30020 |
YM35;CM36,KM36,YM30..ARL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-95701 |
YM35;CM36,KM36,YM30..ARL |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-07002 |
YM35;CM36,KM36,YM30..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27040 |
CM36,YM30,35..ARL W(TILT STEERING) |
1 | ||
| 84140-27020 |
CM36,KM36,YM30,35..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27480 |
CM36,KM36,YM35..VSP..ARL W(RR WIPER) |
1 | ||
| 84310-27470 |
CM36,YM35..ARL W(TILT STEERING) |
1 | ||
| 84310-27460 |
YM35;CM36,KM36..VSP..ARL |
1 | ||
| 84310-27490 |
CM36,YM35..ARL W(TILT STEERING & RR WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
CM36,KM3#,YM3# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27070 |
CM36,YM30,35..ARL W(TILT STEERING) |
1 | ||
| 84450-27100 |
CM36,KM36,YM30,35..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27090 |
CM36,KM36,YM35..VSP..ARL W(RR WIPER) |
1 | ||
| 84652-27100 |
CM36,YM35..ARL W(TILT STEERING) |
1 | ||
| 84652-27110 |
CM36,YM35..ARL W(TILT STEERING & RR WIPER) |
1 | ||
| 84652-27080 |
YM35;CM36,KM36..VSP..ARL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
KM36..4F;KM36,YM35..ARL;CM36,KM30,YM30..MRF..(4FC,5F) |
1 | ||
| 84660-95702 |
CM36,KM36,YM35..ARL W(AIR CONDITIONER) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
KM36..4F;KM36,YM35..ARL;CM36,KM30,YM30..MRF..(4FC,5F) |
1 | ||
| 84660-95702 |
CM36,KM36,YM35..ARL W(AIR CONDITIONER) |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM36,KM3#,YM3# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM36,KM3#,YM3# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM36,KM36,YM35..ARL COOL |
1 | ||
| 84731-20030 |
CM36,KM36,YM35..ARL BLOWER |
1 | ||
| 84731-12010 |
KM36..4F;KM36,YM35..ARL;CM36,KM30,YM30..MRF..(4FC,5F) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM36,KM36,YM35..ARL COOL |
1 | ||
| 84731-20030 |
CM36,KM36,YM35..ARL BLOWER |
1 | ||
| 84731-12010 |
KM36..4F;KM36,YM35..ARL;CM36,KM30,YM30..MRF..(4FC,5F) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12032 |
CM36,KM36,YM35..ARL COOL |
1 | ||
| 84731-20030 |
CM36,KM36,YM35..ARL BLOWER |
1 | ||
| 84731-12010 |
KM36..4F;KM36,YM35..ARL;CM36,KM30,YM30..MRF..(4FC,5F) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32060 |
KM36..4H,5F;CM36,KM37,YM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM36,KM3#;YM35..ARL |
1 | ||
| 85500-95712 |
CM36,KM3#,YM35 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM36,KM3#;YM35..ARL |
1 | ||
| 85500-95712 |
CM36,KM3#,YM35 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM36,KM3#,YM35 |
1 | ||
| 85533-95700 |
CM36,KM3#;YM35..ARL |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90201-07004 | ||||
| 90461-08491 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-15402 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
2C,5KC,2YC..CM36,KM36,YM30,35..ARL |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-64350 |
2C..CM36..ARL |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64080 |
2C..CM36..RHD |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
2C..CM36 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM36,KM3#,YM3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
CM36,KM36,YM3#..RHD 10A |
2 | ||
| 90982-07011 |
CM36,KM3#,YM3# 30A,GREEN |
1 | ||
| 90982-09003 |
CM36,KM36,YM35..RHD..(02S,05S) 15A |
3 | ||
| 90982-09003 |
CM36,KM36,YM3#..RHD 15A |
2 | ||
| 90982-09002 |
CM36,KM36,YM3#..RHD 10A |
3 | ||
| 90982-09005 |
CM36,KM36,YM3#..RHD 7.5A |
5 | ||
| 90982-09005 |
CM36,KM36,YM3#..RHD 7.5A |
1 | ||
| 90982-09004 |
CM36,KM3#,YM3# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM36,KM3#,YM3# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95713 |
CM36,KM36,YM3#..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM36..02S;KM36,37,YM3#;CM36..4F..05S;CM36..MRF..GEN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM36,KM3#,YM3# HEAD |
1 | ||
| 90987-01003 |
CM36,KM3#,YM3# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM36,KM3#,YM3# HEAD |
1 | ||
| 90987-01003 |
CM36,KM3#,YM3# TAIL |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
CM36,KM36,YM30,35..ARL |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 90987-04002 |
CM36,KM36,37,YM3# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM36 |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-95704 |
CM36..RHD |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-27020 |
YM35;CM36,KM36,YM30..ARL |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93385-15014 | ||||
| 93560-55014 | ||||
ILLUST NO. 5 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80043 |
CM36,KM3#,YM30,35 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM36,KM3#,YM3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM36,KM3#,YM3# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CM36,KM36,YM3#..RHD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CM36,KM36,YM3#..RHD |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93540-55016 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 6 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM36,KM3#,YM3# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM36,KM3#,YM3# |
2 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 85941-95700 |
CM36,KM3#,YM3# |
1 | ||
| Common parts | ||||
| 63249-95700 | ||||
| 67795-95701 | ||||
| 90119-06334 | ||||
| 90119-06473 | ||||
| 90168-50023 | ||||
| 90201-10041 | ||||
| 90560-10022 | ||||
