CM36LV-QRS (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

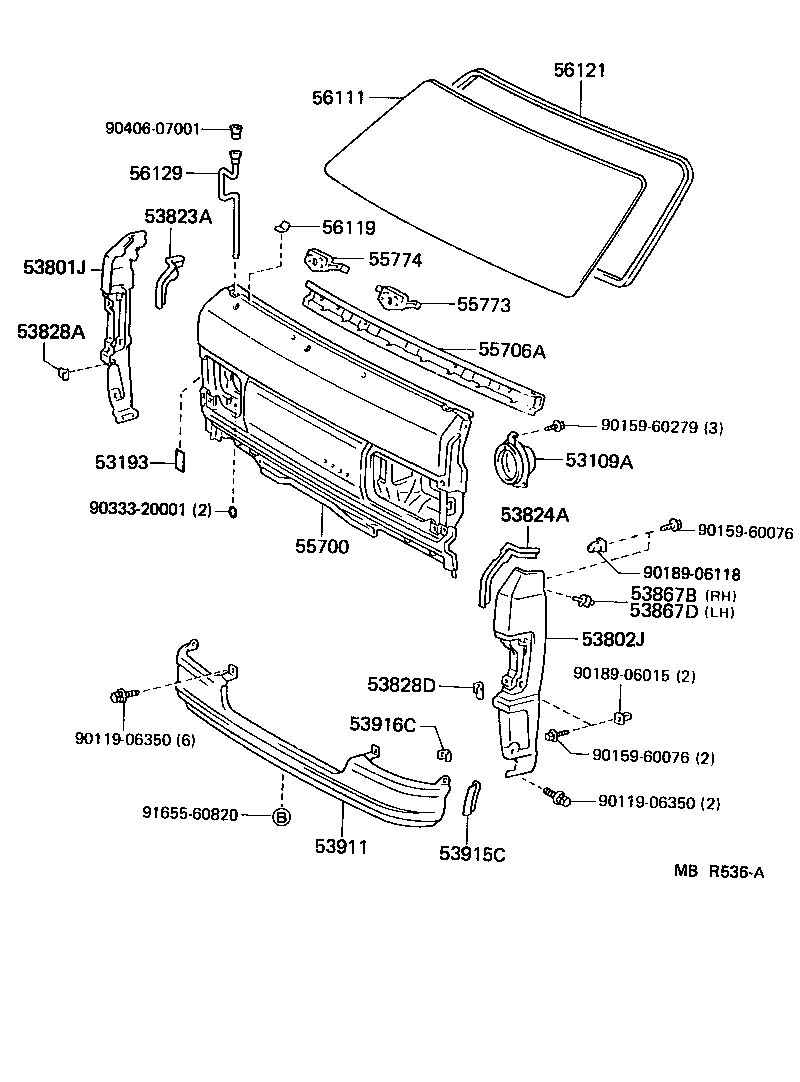

Click highlighted areas on diagram

diagram 53109A 53193 53801J 53802J 53823A 53824A 53828A 53828D 53867B 53867D 53911 53915C 53916C 55700 55706A 55773 55774 56111 56119 56121 56129 9011906350 9011906350 9015960076 9015960076 9015960279 9018906015 9018906118 9033320001 9040607001 9165560820
Part # Description Qty Price
53109A - COVER SUB-ASSY, HEADLAMP SERVICE HOLE
53109-95700

CM36,KM36,37..LHD

 1
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53801-95706

CM36,KM3#,YM3#

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53802-95709

KM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL

 1
53823A - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-95703

CM36,KM3#,YM3#

 1
53824A - PROTECTOR, FRONT SIDE
53824-95703

CM36,KM3#,YM3#

 1
53824-95703

CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL

 1
53828A - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM36..5H;CM36..ARL;CM36..SRF;KM3#,YM30,35

 1
53828D - PROTECTOR, FRONT SIDE PANEL, NO.3 LH
53828-95702

CM36,KM3#,YM3#

 1
53828-95702

CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL

 1
53867B - RETAINER, FRONT SIDE PANEL
53867-95700

CM36,KM3#,YM3#

 1
53867D - RETAINER, FRONT SIDE PANEL, LH
53867-95700

CM36,KM3#,YM3#

 1
53911 - PANEL, FRONT VALANCE
53901-95702

CM36,KM3#,YM3#

 1
53915C - PROTECTOR, LOWER SHROUD
53915-95704

CM36,KM3#,YM3#

 2
53916C - PROTECTOR, LOWER SHROUD, NO.2
53916-95702

CM36,KM3#,YM3#

 2
55700 - PANEL ASSY, FRONT
55701-95751

CM36,KM36,37..LHD

W(FRONT HEATER) OR W(BOOST VENTILATOR)

 1
55701-95757

CM36,KM36,37..LHD

BODY RUST PROTECTING & W(FRONT HEATER OR BOOST VENTILATOR)

 1
55701-95755

CM36,KM36,37..LHD

BODY RUST PROTECTING

 1
55701-95749

CM36,KM36,37..LHD

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95707

CM36,KM3#..LHD

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95704

CM36,KM3#,YM3#

 1
55773-95705

CM36,KM3#,YM3#

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95705

CM36,KM3#..LHD

 1
56111 - GLASS, WINDSHIELD
56111-95711

CM36,KM36,37,YM31,35..GEN

*ZT,T=5.0

 1
56111-95717

CM36..SRF;CM36,KM37..4H,5H;KM36..SRF..(4H,5F)..GEN

*LAM,T=5.3,W(TOP SHADE)

 1
56111-95712

CM36..SRF;CM36,KM37..4H,5H;KM36..SRF..(4H,5F)..GEN

*TZT,T=5.0

 1
56111-95716

CM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN

*TL,T=5.3

 1
56111-95714

CM36..5H;CM36..SRF;KM37,YM35..GEN;KM36..SRF..(4H,5F)..GEN

*LAM,T=5.3

 1
56119 - SEAL, WINDSHIELD GLASS
56119-95700

CM36,KM3#,YM3#

 2
56121 - WEATHERSTRIP, WINDSHIELD
56121-95708

CM36,KM36,37,YM35

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95700

CM36,KM3#,YM3#

 2
Common parts
90119-06350
90159-60076
90159-60279
90189-06015
90189-06118
90333-20001
90406-07001
91655-60820
