CM36LV-QRS (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2C

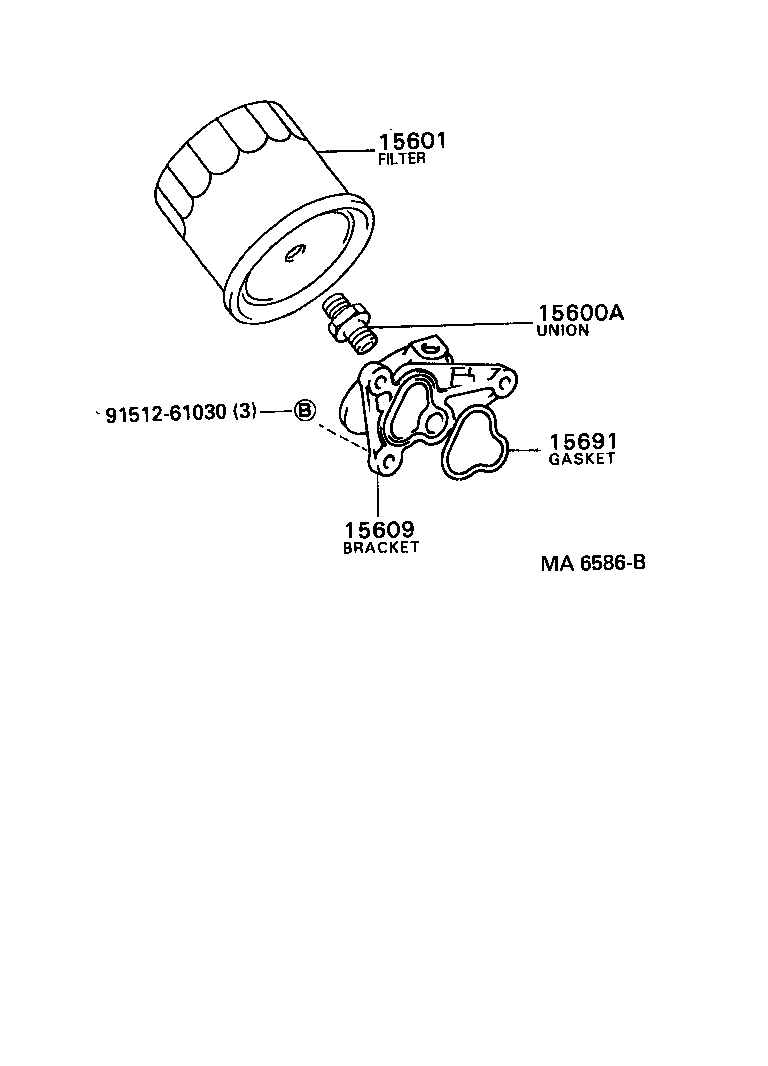

Click highlighted areas on diagram

diagram 15600A 15601 15609 15691 9151261030
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-27001

2C..CM36

 1
15601 - FILTER SUB-ASSY, OIL
90915-03003

2C..CM36

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15677-64080

2C..CM36

 1
15691 - GASKET, OIL FILTER
15691-64030

2C..CM36

 1
Common parts
91512-61030
