CM36LV-KR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

FRONT HEATER

diagram 87104 87105 87107 87110 87138 9017908123 9165140816 9166140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95705

KM30,YM3#;KM36..RHD;CM36..02S;CM36..(4F,5H)..05S

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

CM36,KM3#..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95706

CM36..5H;CM36..ARL;CM36..SRF

 1
87110 - HEATER ASSY
87110-95746

CM36..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95707

KM30,YM3#;KM36..RHD;CM36..02S;CM36..(4F,5H)..05S

 1
87138-95707

KM36..RHD;CM36,KM30,YM3#

 1
Common parts
90179-08123
91651-40816
91661-40616

ILLUST NO. 1 OF 3(8808- )GEN

Click highlighted areas on diagram

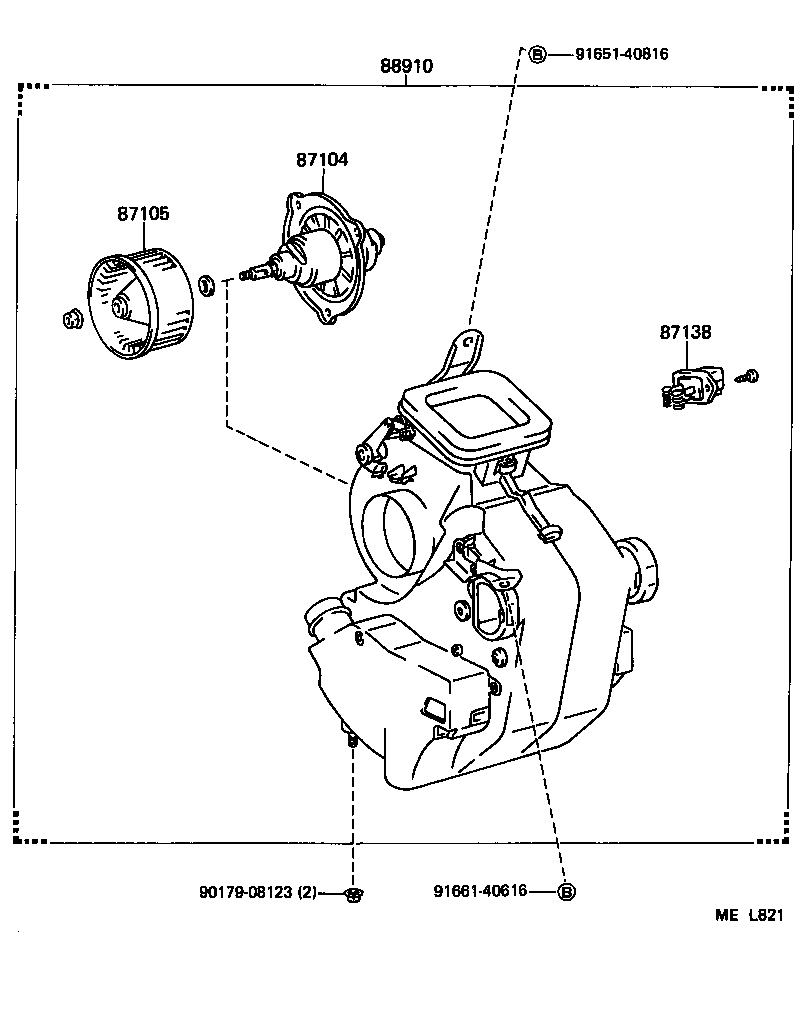

FRONT BOOST VENTILATOR

diagram 87104 87105 87138 88910 9017908123 9165140816 9166140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95705

KM30,YM3#;KM36..RHD;CM36..02S;CM36..(4F,5H)..05S

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

CM36,KM3#..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95707

KM30,YM3#;KM36..RHD;CM36..02S;CM36..(4F,5H)..05S

 1
87138-95707

KM36..RHD;CM36,KM30,YM3#

 1
88910 - VENTILATOR ASSY, BOOST
88910-95707

CM36,KM3#..LHD

 1
Common parts
90179-08123
91651-40816
91661-40616
