CM36LV-KR (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
2C
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8808- )CM36,YM3#..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-27161 |
CM36,KM30..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
KM36..5F;CM36,KM30,YM3#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10020 |
CM36,KM3#,YM3#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM36,KM3#,YM3#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
CM36,KM3#,YM3#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
CM36,KM3#,YM3#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CM36,KM3#,YM3#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51060 |
CM36,KM3#,YM3#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CM36,KM3#,YM3#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KM36..5F;CM36,KM30,YM3#..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KM36..5F;CM36,KM30,YM3#..MTM |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||

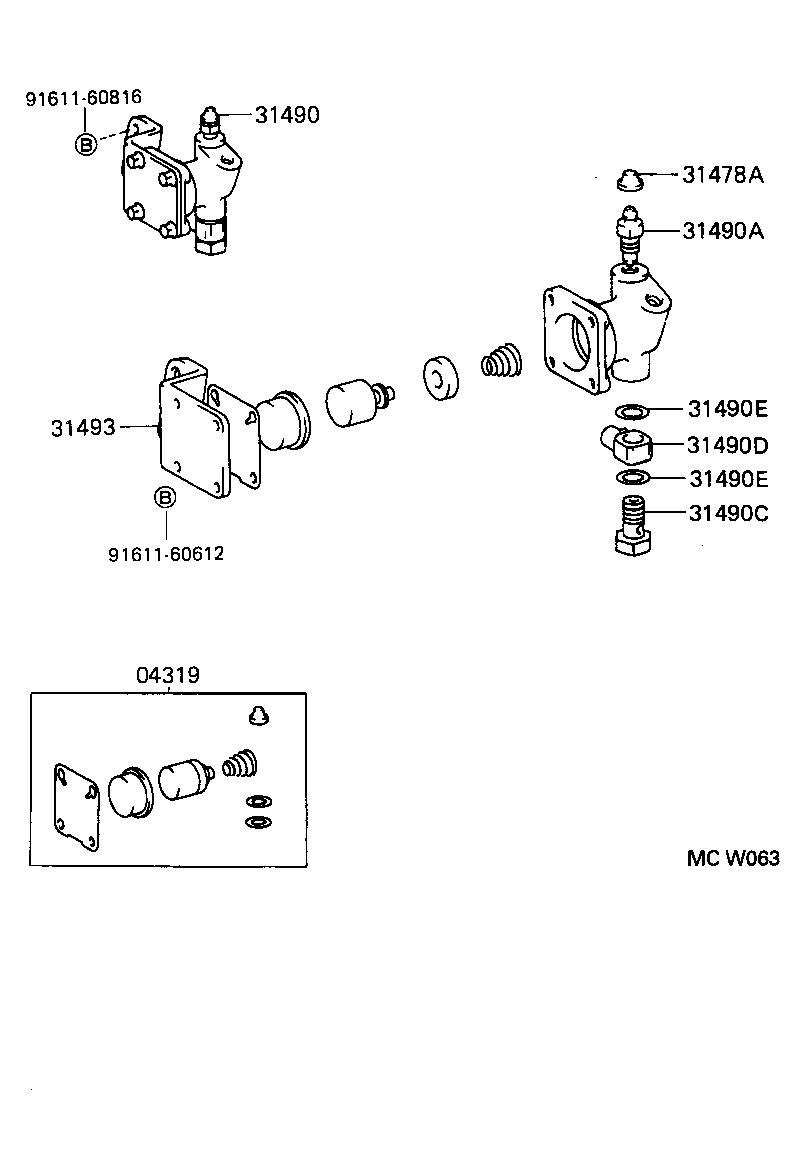

ILLUST NO. 3 OF 3(8808- )CM36
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04319 - CUP KIT, CLUTCH ACCUMULATOR | ||||
| 04319-27010 |
CM36 |
1 | ||
| 31478A - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR) | ||||
| 31478-30010 |
CM36 |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-27030 |
CM36 |
1 | ||
| 31490A - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR) | ||||
| 47547-12010 |
CM36 |
1 | ||
| 31490C - BOLT, UNION(FOR CLUTCH ACCUMULATOR) | ||||
| 90401-12014 |
CM36 |
1 | ||
| 31490D - UNION(FOR CLUTCH ACCUMULATOR) | ||||
| 90404-12002 |
CM36 |
1 | ||
| 31490E - GASKET(FOR CLUTCH ACCUMULATOR) | ||||
| 90430-12221 |
CM36 |
2 | ||
| 31490E - GASKET(FOR CLUTCH ACCUMULATOR) | ||||
| 90430-12221 |
CM36 |
2 | ||
| 31493 - BRACKET, CLUTCH ACCUMULATOR | ||||
| 31493-27020 |
CM36 |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
