CM35RV-MRSBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

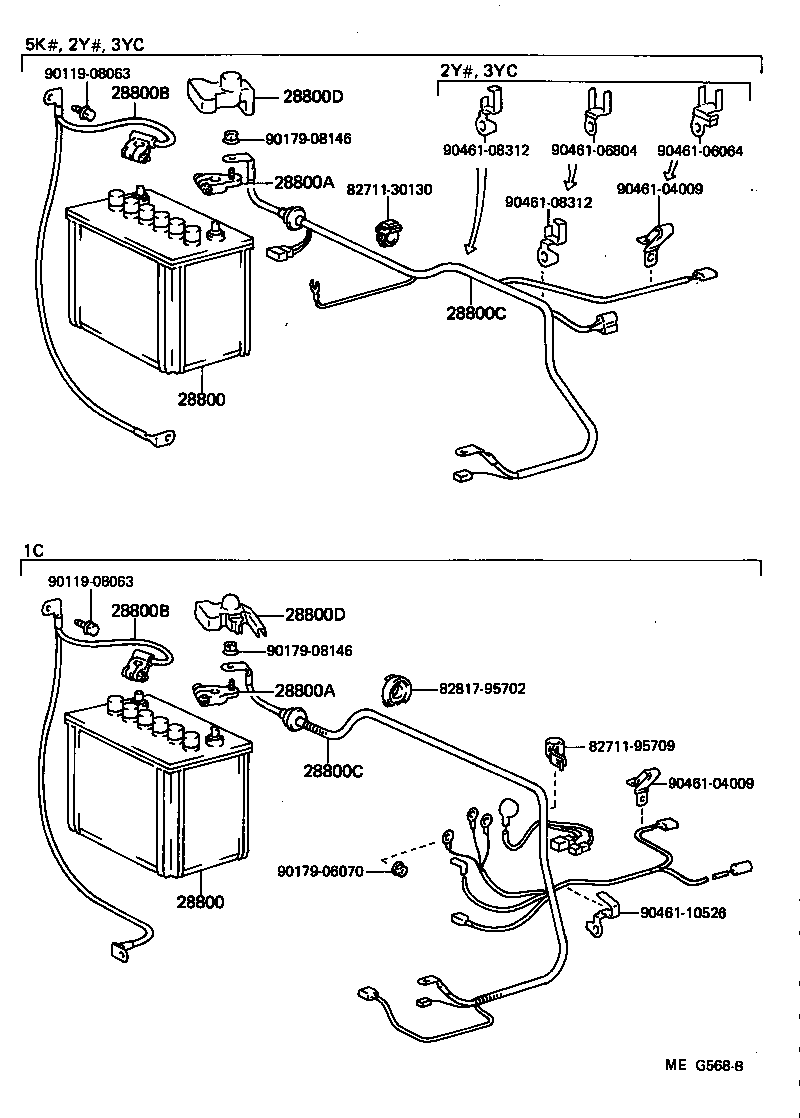

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 8271130130 8271195709 8281795702 9011908063 9011908063 9017906070 9017908146 9017908146 9046104009 9046104009 9046106064 9046106804 9046108312 9046108312 9046110526
Part # Description Qty Price
28800 - BATTERY
28800-67030

1C,2C..CM3#

80D26R,80D26R(NX110-5)

 1
28800 - BATTERY
28800-67030

1C,2C..CM3#

80D26R,80D26R(NX110-5)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

1C,5K#,2Y#,3YC..CM35,KM3#,YM3#,4#

 1
90982-05030

1C,2C,5K#,2Y#,3YC..CM3#,KM3#,YM30,35,4#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

1C,5K#,2Y#,3YC..CM35,KM3#,YM3#,4#

 1
90982-05030

1C,2C,5K#,2Y#,3YC..CM3#,KM3#,YM30,35,4#

 1
28800B - CABLE, BATTERY TO GROUND
82123-95701

1C,2C..CM3#

 1
28800B - CABLE, BATTERY TO GROUND
82123-95701

1C,2C..CM3#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95737

1C..CM35..ARL

 1
82122-95701

1C..CM35..ARL

 1
82122-95741

1C..CM35..ARL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95737

1C..CM35..ARL

 1
82122-95701

1C..CM35..ARL

 1
82122-95741

1C..CM35..ARL

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702

1C,2C..CM3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95702

1C,2C..CM3#

 1
Common parts
82711-30130
82711-95709
82817-95702
90119-08063
90179-06070
90179-08146
90461-04009
90461-06064
90461-06804
90461-08312
90461-10526
