CM35RV-KRBE (1985)
Toyota Liteace
ILLUST NO. 3 OF 3(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12450 | ||||
| 82711-14560 | ||||
| 82711-14620 | ||||
| 82711-22270 | ||||
| 82711-24010 | ||||
| 82711-24070 | ||||
| 82711-30130 | ||||
| 82711-95413 | ||||
| 82711-95709 | ||||
| 82711-95710 | ||||
| 82711-95711 | ||||
| 82711-95712 | ||||
| 82711-95714 | ||||
| 82711-95715 | ||||
| 82711-95717 | ||||
| 82711-95718 | ||||
| 82711-95J04 | ||||
ILLUST NO. 1 OF 3(8509- )YM3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95780 |
CM35..RHD..GEN |
1 | ||
| 82111-95G59 |
CM35..RHD..GEN |
1 | ||
| 82111-95G86 |
CM3#..RHD..GEN |
1 | ||
| 82111-95G24 |
CM35..RHD..GEN |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95704 |
CM3#..RHD |
1 | ||
| 82112-95701 |
YM3#,4# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-95703 |
CM3# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95739 |
CM35..RHD..GEN |
1 | ||
| 82131-95G08 |
CM35..RHD..GEN |
1 | ||
| 82131-95752 |
CM35..RHD..GEN |
1 | ||
| 82131-95G28 |
CM3#..RHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CM35 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08202 |
CM3# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08203 |
CM3#,YM3#,4# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08188 |
CM3#,KM36,YM3#,4#..RHD 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 90982-08189 |
CM3#,KM3#,YM3#,4# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-95A00 |
YM3#,4# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-95703 |
YM3#,4# NO.1 |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-95703 |
YM3#,4# NO.1 |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82701-95700 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95703 |
CM3#,YM3#,4# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12100 |
CM3#,KM36,YM3#,4#..RHD COWL WIRE |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12100 |
CM3#,KM36,YM3#,4#..RHD COWL WIRE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06005 | ||||
| 90119-06157 | ||||
| 90119-08063 | ||||
| 90179-06158 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 93385-15010 | ||||
| 93386-16016 | ||||

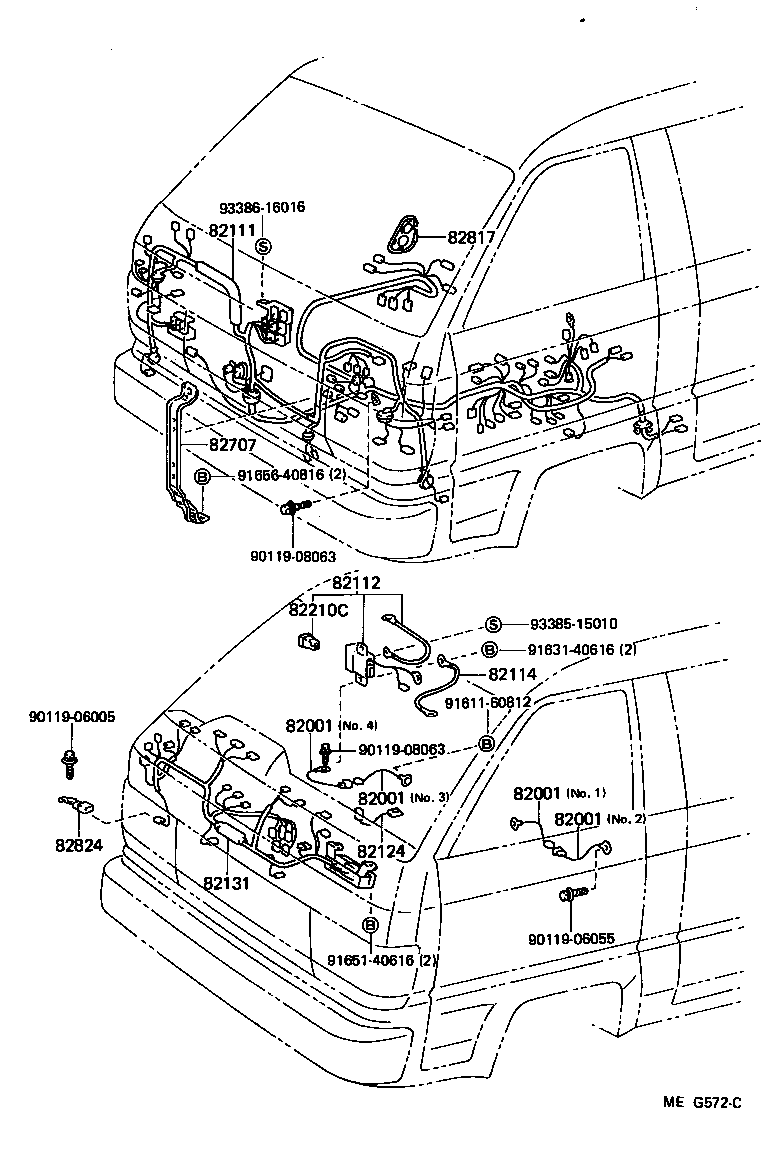

ILLUST NO. 1 OF 3(8509- )CM35..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07228 |
CM35,YM3#,4# NO.1 |
1 | ||
| 90980-07259 |
CM3# NO.3 |
1 | ||
| 90980-07258 |
CM3# NO.4 |
1 | ||
| 90980-07276 |
CM3#,YM30,35,4# NO.1 |
1 | ||
| 90980-07206 |
CM35,YM3#,4# NO.2 |
1 | ||
| 90980-07275 |
CM3#,YM30,35,4# NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95780 |
CM35..RHD..GEN |
1 | ||
| 82111-95G59 |
CM35..RHD..GEN |
1 | ||
| 82111-95G86 |
CM3#..RHD..GEN |
1 | ||
| 82111-95G24 |
CM35..RHD..GEN |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95704 |
CM3#..RHD |
1 | ||
| 82112-95701 |
YM3#,4# |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-95703 |
CM35 |
1 | ||
| 82114-95705 |
CM3# |
1 | ||
| 82114-95701 |
CM35 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-95703 |
CM3# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95739 |
CM35..RHD..GEN |
1 | ||
| 82131-95G08 |
CM35..RHD..GEN |
1 | ||
| 82131-95752 |
CM35..RHD..GEN |
1 | ||
| 82131-95G28 |
CM3#..RHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CM35 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08202 |
CM3# 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08203 |
CM3#,YM3#,4# 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08188 |
CM3#,KM36,YM3#,4#..RHD 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 90982-08189 |
CM3#,KM3#,YM3#,4# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82701-95700 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95703 |
CM3#,YM3#,4# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12100 |
CM3#,KM36,YM3#,4#..RHD COWL WIRE |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06055 | ||||
| 90119-08063 | ||||
| 91611-60812 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91656-40816 | ||||
| 93385-15010 | ||||
| 93386-16016 | ||||
ILLUST NO. 2 OF 3(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-95702 |
CM3#,KM3#..GEN |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-95700 |
CM35,KM3#..GEN |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-95705 |
KM36..RHD;KM36..LHD..06S;CM3#,YM31,35,41 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95704 |
CM35,KM36,YM35..VSP |
1 | ||
| 82164-95706 |
KM36..DLX;KM36..4H..GEN;CM35,KM37..GEN W/*RWD |
1 | ||
| 82164-95707 |
CM35,KM3#..GEN W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95725 |
KM36..DLX;KM36..4H..GEN;CM35,KM37..GEN W/*RWD |
1 | ||
| 82164-95731 |
CM35,KM3#..GEN W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95728 |
CM35,KM36,YM35..VSP |
1 | ||
| 82164-95744 |
KM36..DLX;KM36..4H..GEN;CM3#,KM37..GEN W/*RWD |
1 | ||
| 82164-95750 |
CM3#,KM3#..GEN W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95747 |
CM35,KM36,YM35..VSP |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95701 |
CM35,KM36,YM35..VSP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95704 |
CM35,KM36..SRF..STD |
1 | ||
| 82184-95705 |
CM3#..SRF;KM36..DLX;KM36..SRF..4H W/*RWD |
1 | ||
| 82184-95701 |
CM35,KM3#..SRF W/*RW,W/*RW & *RWD |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95702 |
CM3#,YM3#,4# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95702 |
CM3#,YM3#,4# |
2 | ||
| Common parts | ||||
| 82718-87002 | ||||
| 90119-08063 | ||||
ILLUST NO. 3 OF 3(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82819-95J02 | ||||
| 90461-04009 | ||||
| 90461-06064 | ||||
| 90461-06156 | ||||
| 90461-06804 | ||||
| 90461-08312 | ||||
| 90461-10526 | ||||
| 90463-04012 | ||||
| 90463-04035 | ||||
| 90463-15003 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
| 90464-00162 | ||||
| 90464-00165 | ||||
| 90467-09040 | ||||
