CM35RV-KRBE (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

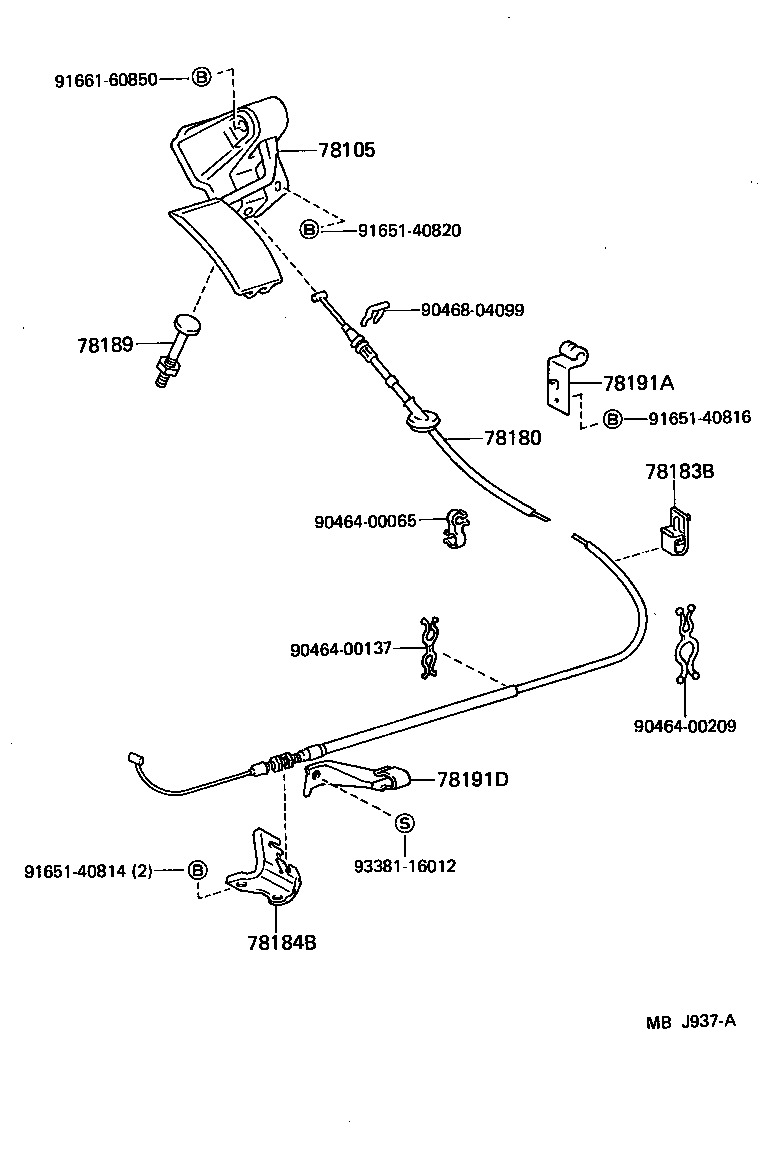

(8509- )YM3#,4#

Click highlighted areas on diagram

diagram 78105 78180 78183B 78184B 78189 78191A 78191D 9046400065 9046400137 9046400209 9046804099 9165140814 9165140816 9165140820 9166160850 9338116012
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

CM3#,KM36,YM3#,4#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95718

CM3#..RHD

 1
78150-95722

YM3#,4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#,KM3#,YM3#,4#

 2
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#

 1
78184-95J00

YM3#,4#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM35,KM36,YM3#

 1
78208-95702

CM3#,KM3#,YM3#,4#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95707

CM3#,KM36,YM3#,4#..RHD

 1
Common parts
90464-00065
90464-00137
90464-00209
90468-04099
91651-40814
91651-40816
91651-40820
91661-60850
93381-16012

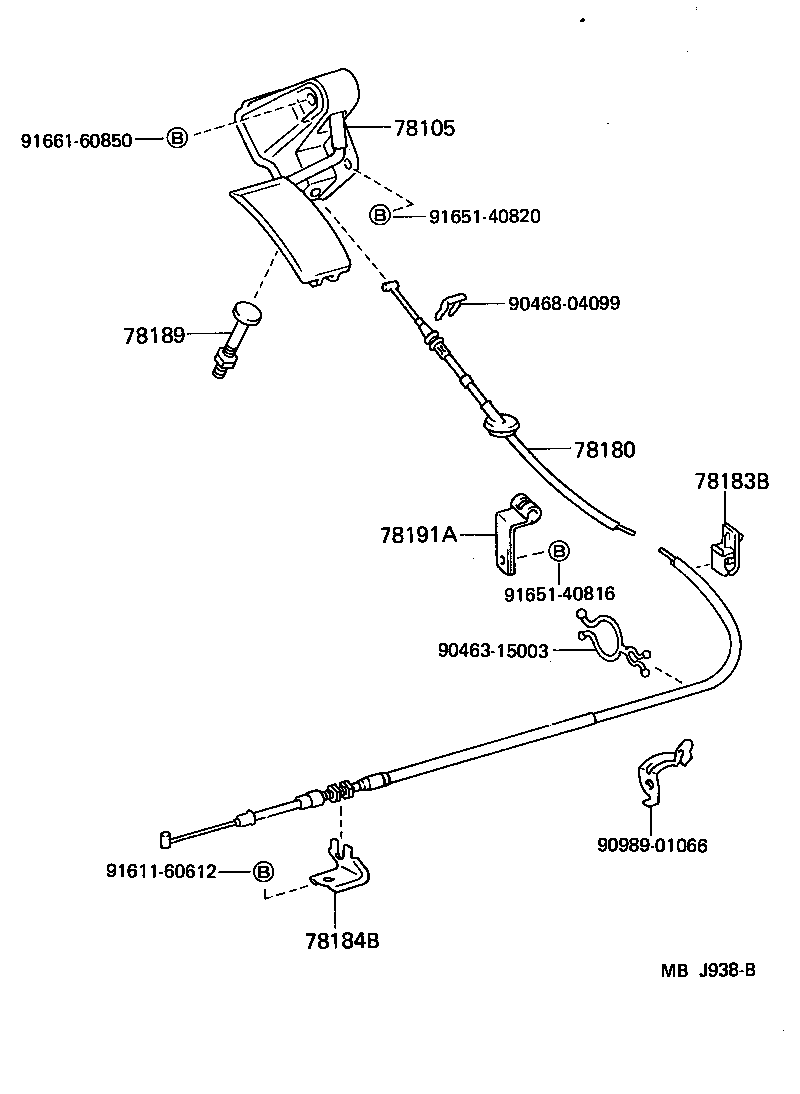

(8509- )CM3#..RHD

Click highlighted areas on diagram

diagram 78105 78180 78183B 78184B 78189 78191A 9046315003 9046804099 9098901066 9161160612 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

CM3#,KM36,YM3#,4#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95718

CM3#..RHD

 1
78150-95722

YM3#,4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#,KM3#,YM3#,4#

 2
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#

 1
78184-95J00

YM3#,4#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM35,KM36,YM3#

 1
78208-95702

CM3#,KM3#,YM3#,4#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95707

CM3#,KM36,YM3#,4#..RHD

 1
Common parts
90463-15003
90468-04099
90989-01066
91611-60612
91651-40816
91651-40820
91661-60850
