CM35RV-KR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

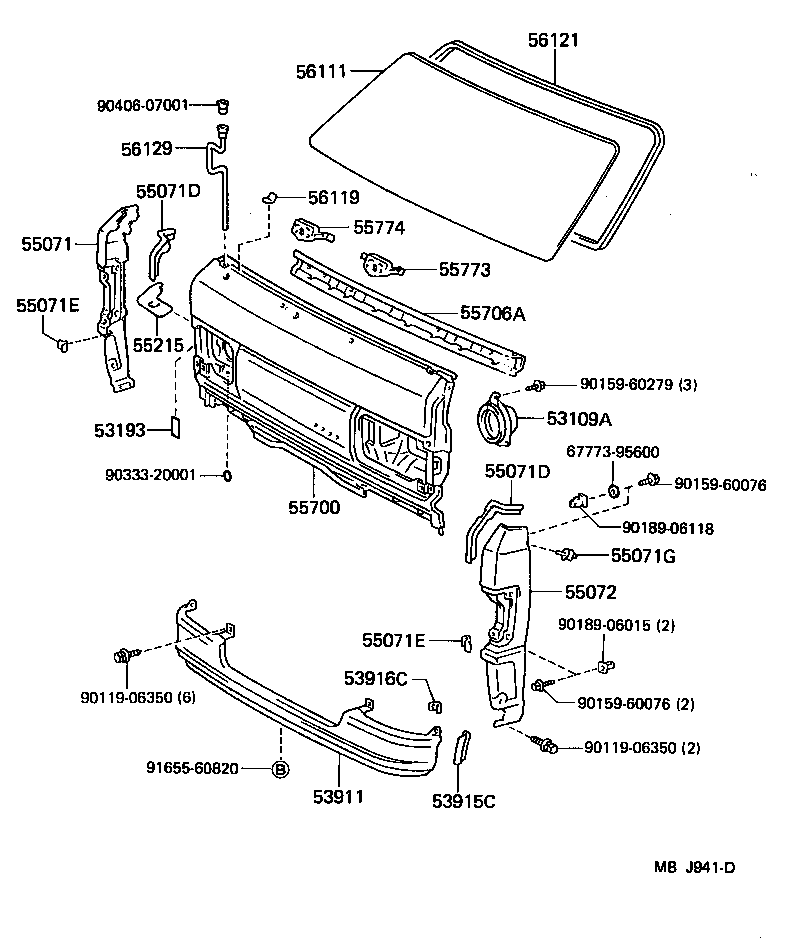

Click highlighted areas on diagram

diagram 53109A 53193 53911 53915C 53916C 55071 55071D 55071D 55071E 55071E 55071G 55072 55215 55700 55706A 55773 55774 56111 56119 56121 56129 6777395600 9011906350 9011906350 9015960076 9015960076 9015960279 9018906015 9018906118 9033320001 9040607001 9165560820
Part # Description Qty Price
53109A - COVER SUB-ASSY, HEADLAMP SERVICE HOLE
53109-95700

CM3#,KM36,YM3#,4#..RHD

 2
53911 - PANEL, FRONT VALANCE
53901-95702

CM3#,KM3#,YM3#,4#

 1
53915C - PROTECTOR, LOWER SHROUD
53915-95704

CM3#,KM3#,YM3#,4#

 2
53916C - PROTECTOR, LOWER SHROUD, NO.2
53916-95702

CM3#,KM3#,YM3#,4#

 2
55071 - PANEL SUB-ASSY, FRONT SIDE, RH
53801-95706

CM3#,KM3#,YM3#,4#

 1
55071D - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-95702

CM35,KM3#,YM3#,4#

RH

 1
53824-95702

CM35,KM3#,YM3#,4#

LH

 1
53823-95703

CM3#,KM3#,YM30,35,4#

RH

 1
53824-95703

CM3#,KM3#,YM30,35,4#

LH

 1
55071D - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-95702

CM35,KM3#,YM3#,4#

RH

 1
53824-95702

CM35,KM3#,YM3#,4#

LH

 1
53823-95703

CM3#,KM3#,YM30,35,4#

RH

 1
53824-95703

CM3#,KM3#,YM30,35,4#

LH

 1
55071E - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM3#,KM3#,YM3#,4#

 2
55071E - PROTECTOR, FRONT SIDE PANEL, NO.3
53828-95702

CM3#,KM3#,YM3#,4#

 2
55071G - RETAINER, FRONT SIDE PANEL SET
53867-95700

CM3#,KM3#,YM3#,4#

 2
55072 - PANEL SUB-ASSY, FRONT SIDE, LH
53802-95709

YM30,4#

 1
53802-95708

CM3#,KM36,YM31..RHD..GEN

 1
55700 - PANEL ASSY, FRONT
55701-95732

KM36..DLX;CM3#..RHD..GEN;KM36..RHD..4H..GEN

 1
55701-95745

CM3#,KM36..RHD..GEN

W/FR HEATER

 1
55701-95750

KM36..DLX;CM3#..RHD..GEN;KM36..RHD..4H..GEN

 1
55701-95729

CM3#,KM36,YM31..RHD..GEN

W/FR HEATER

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95706

CM3#,KM36,YM3#,4#..RHD

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95704

CM3#,KM3#,YM3#,4#

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95704

CM3#,KM36,YM3#,4#..RHD

 1
56111 - GLASS, WINDSHIELD
56111-95712

KM36..4H..GEN;CM3#,KM37..GEN

*TZT,T=5.0,*TZT,T=5.0

 1
56111-95714

KM36..4H..GEN;CM3#,KM37,YM30,31..GEN

*LAM,T=5.3,*LAM,T=5.3

 1
56111-95716

KM36..4H..GEN;CM3#,KM37..GEN

*TL,T=5.3,*TL,T=5.3

 1
56111-95711

CM3#,KM3#..GEN

*ZT,T=5.0,*ZT,T=5.0

 1
56111-95717

KM36..4H..GEN;CM3#,KM37,YM30..GEN

*LAM,T=5.3,*LAM,T=5.3,TOP SHADE

 1
56119 - SEAL, WINDSHIELD GLASS
56119-95700

CM3#,KM3#,YM3#,4#

 2
56121 - WEATHERSTRIP, WINDSHIELD
56121-95708

CM3#,KM3#,YM31,35,41

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95700

CM3#,KM3#,YM3#,4#

 2
Common parts
67773-95600
90119-06350
90159-60076
90159-60279
90189-06015
90189-06118
90333-20001
90406-07001
91655-60820
