CM20RV-QRZBEQ (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

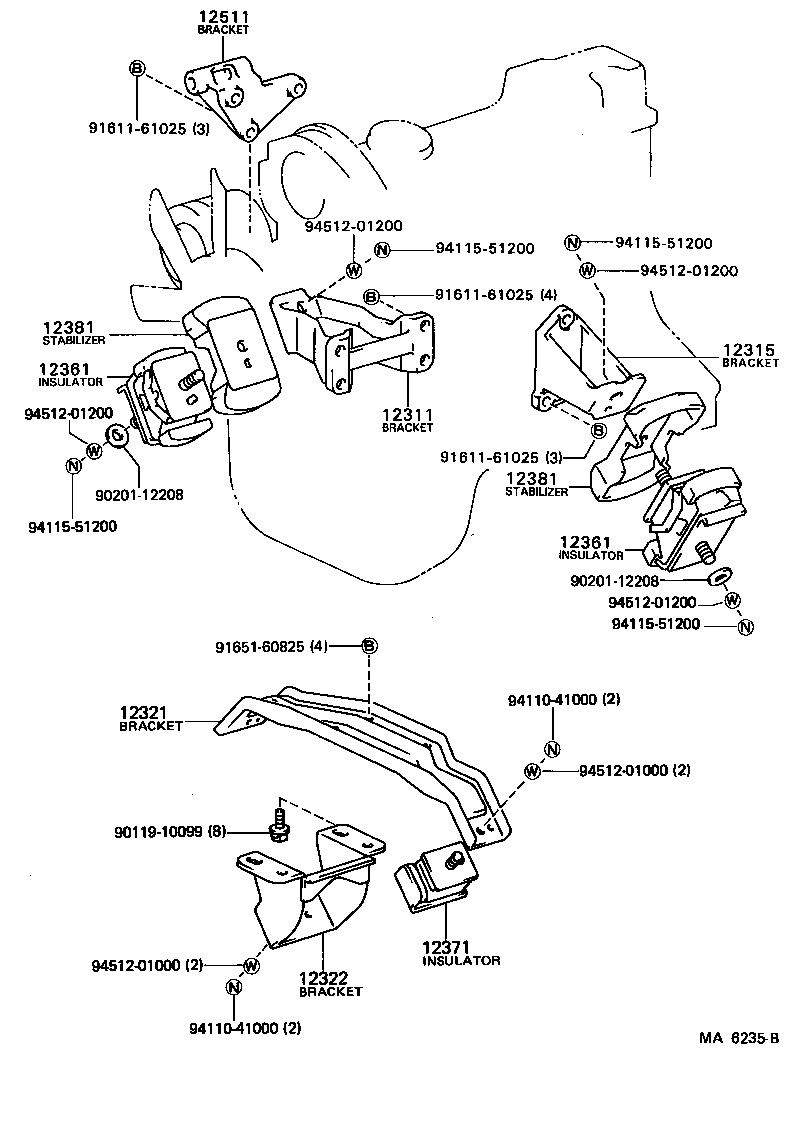

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12381 12381 12511 9011910099 9020112208 9020112208 9161161025 9161161025 9161161025 9165160825 9411041000 9411041000 9411551200 9411551200 9411551200 9411551200 9451201000 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64020

1C..CM20

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64020

1C..CM20

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-64020

1C..CM20

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64060

1C..CM20

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64060

1C..CM20

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

1C..CM20

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

1C..CM20

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-64011

1C..CM20

 1
Common parts
90119-10099
90201-12208
91611-61025
91651-60825
94110-41000
94115-51200
94512-01000
94512-01200
