CM20RV-QRBEQ (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM20,KM20..BUS,V ; (8311- )YM21

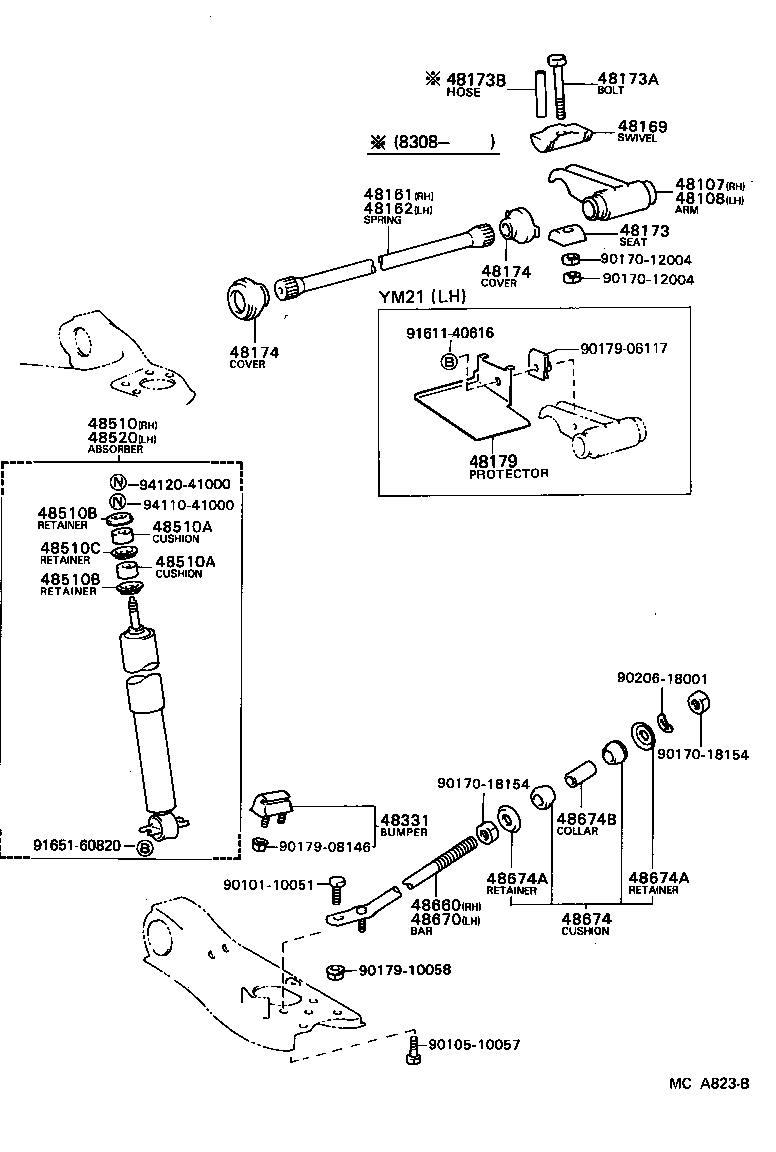

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48173B 48174 48174 48179 48331 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674A 48674A 48674B 9010110051 9010510057 9017012004 9017012004 9017018154 9017018154 9017906117 9017908146 9017910058 9020618001 9161140616 9165160820 9411041000 9412041000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27011

CM20,KM20,YM2#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27011

CM20,KM20,YM2#

 1
48169 - SWIVEL, ANCHOR ARM
48169-27011

CM20,KM20,YM2#

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

CM20,KM20,YM2#..HRF,SRF

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM20,KM20,YM2#

 2
48173B - HOSE(FOR ANCHOR ARM ADJUSTING BOLT)
90446-14001

CM20,YM2#..RHD..(5F,5H)

 1
48174 - COVER, TORSION BAR DUST
48175-27010

CM20,KM20,YM2#

RR

 2
48174-27010

CM20,KM20,YM2#

FR

 2
48174 - COVER, TORSION BAR DUST
48175-27010

CM20,KM20,YM2#

RR

 2
48174-27010

CM20,KM20,YM2#

FR

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-29045

CM20,KM20,YM2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29255

CM20,KM20,YM2#..HRF,SRF

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM20,KM20,YM2#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

CM20,KM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM20,KM20,YM2#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM20,KM20,YM2#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

CM20,KM20,YM2#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29255

CM20,KM20,YM2#..HRF,SRF

 1
48660 - BAR ASSY, STRUT, RH
48660-28010

CM20,KM20,YM2#

 1
48670 - BAR ASSY, STRUT, LH
48670-28010

CM20,KM20,YM2#

 1
48674 - CUSHION, STRUT BAR
48674-29026

CM20,KM20,YM2#

 2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM20,KM20,YM2#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM20,KM20,YM2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18090

CM20,KM20,YM2#

 2
Common parts
90101-10051
90105-10057
90170-12004
90170-18154
90179-06117
90179-08146
90179-10058
90206-18001
91611-40616
91651-60820
94110-41000
94120-41000
