CM20RV-QRBEQ (1982)
Toyota Liteace
Production
Oct 1982
-
Aug 1985
Engine
1C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )1C

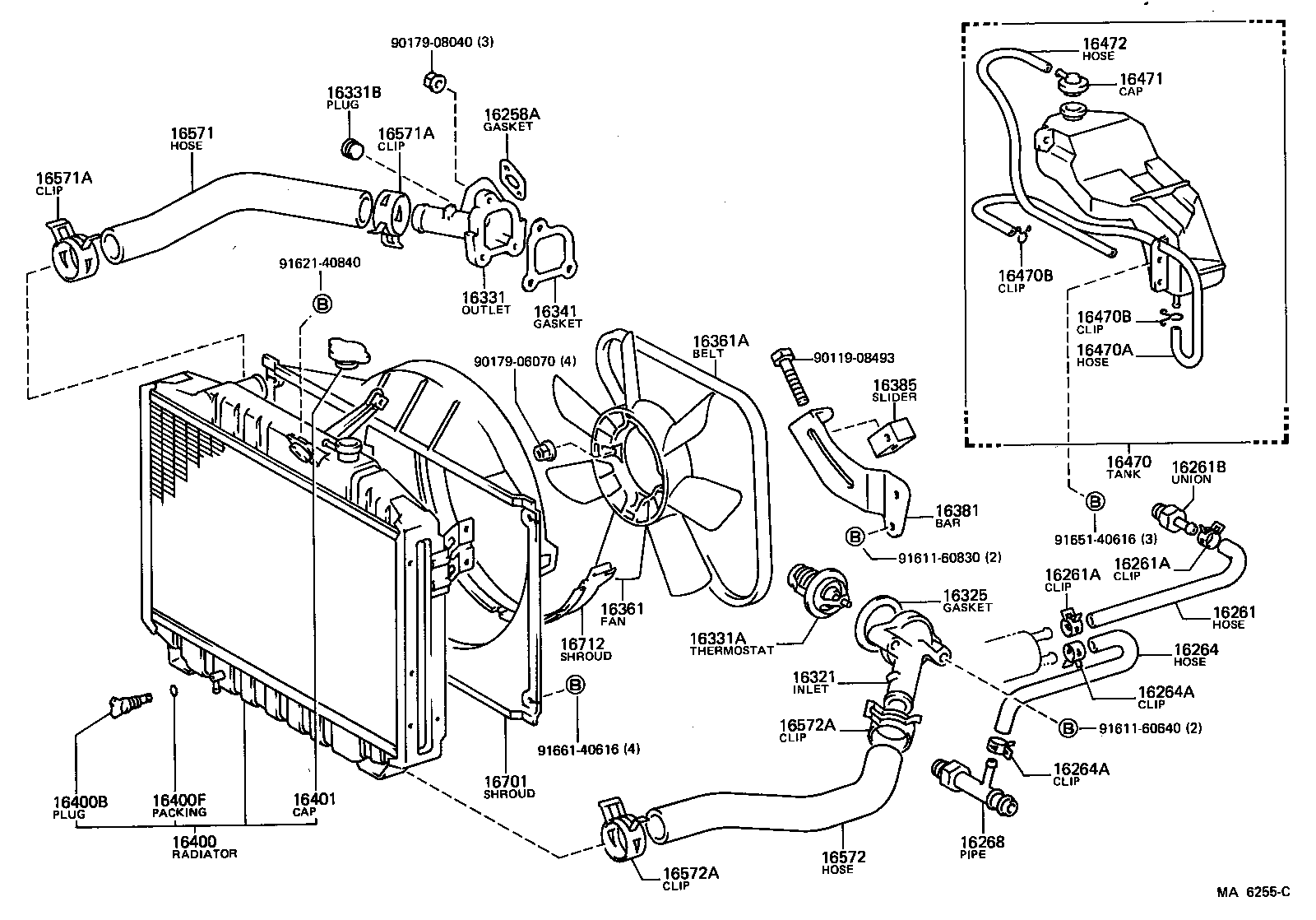

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-64010 |
1C..CM20 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64020 |
1C..CM20 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CM20 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CM20 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53059 |
1C..CM20 |
1 | ||
| 90404-53042 |
1C..CM20 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64010 |
1C..CM20 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CM20 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CM20 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64010 |
1C..CM20 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64010 |
1C..CM20 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1C..CM20 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64010 |
1C..CM20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1C..CM20 *WAX 82-95,*WAX 82-95 |
1 | ||
| 90916-03046 |
1C..CM20 *WAX 82-95,*WAX82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53007 |
1C..CM20 |
1 | ||
| 90344-53011 |
1C..CM20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64010 |
1C..CM20 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1C..CM20 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-50920 |
1C..CM20 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64011 |
1C..CM20 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
1C..CM20 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64040 |
1C..CM20..ARL,GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1C..CM20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1C..CM20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1C..CM20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95708 |
1C..CM20 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12560 |
1C..CM20 *H,L=840 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C..CM20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C..CM20 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95705 |
1C..CM20 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12063 |
1C..CM20 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64040 |
1C..CM20 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64040 |
1C..CM20 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CM20 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CM20 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64040 |
1C..CM20 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-71020 |
1C..CM20 |
1 | ||
| Common parts | ||||
| 90119-08493 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 91611-60640 | ||||
| 91611-60830 | ||||
| 91621-40840 | ||||
| 91651-40616 | ||||
| 91661-40616 | ||||
