CM20RV-JRZ (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM20,YM2#

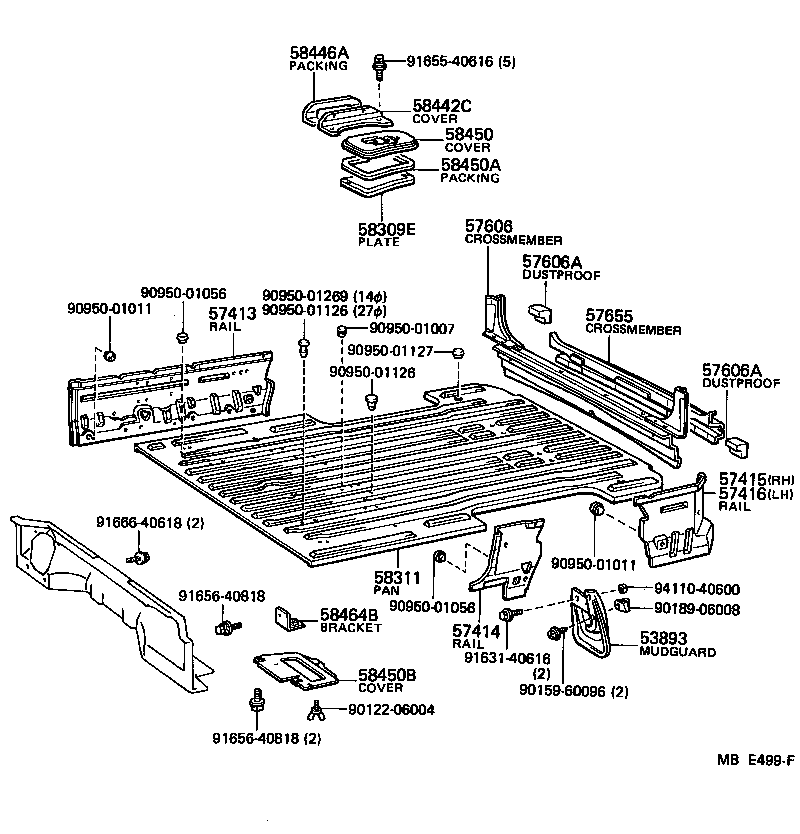

Click highlighted areas on diagram

diagram 53893 57413 57414 57415 57416 57606 57606A 57606A 57655 58309E 58311 58442C 58446A 58450 58450A 58450B 58464B 9012206004 9015960096 9018906008 9095001007 9095001011 9095001011 9095001056 9095001056 9095001126 9095001126 9095001127 9095001269 9163140616 9165540616 9165640818 9165640818 9166640618 9411040600
Part # Description Qty Price
53893 - MUDGUARD, REAR
76607-95700

YM21;CM20,KM20..GEN

RH,FORMED TYPE

 1
76608-95700

YM21;CM20,KM20..GEN

LH,FORMED TYPE

 1
76608-95700

CM20,KM20..ARL,GEN

LH,FORMED TYPE

 1
76607-95700

CM20,KM20..ARL,GEN

RH,FORMED TYPE

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95714

CM20..RHD

 1
57405-95714

CM20..RHD..(ARL,GEN)

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95703

CM20,YM21..RHD..V4D;KM20..RHD..(02S,05S,09S)..(EUR,GEN);KM20..RHD..V4D..(02S,03S,06S)..(ARL,GEN)

 1
57414-95703

KM20..V4D..SRF..03S;CM20,YM21..RHD..V4D..(ARL,GEN);KM20..RHD..(02S,06S,09S)..(ARL,GEN)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57045-95702

CM20,KM20,YM2#..(BUS,V)..(ARL,GEN)

 1
57606 - CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57607-95702

CM20,KM20,YM2#..HRF,SRF

 1
57655 - MEMBER, REAR FLOOR CROSS, NO.5
57708-95702

CM20,KM20,YM2#..HRF,SRF

 1
58309E - PLATE SUB-ASSY, REAR FLOOR
58309-95703

CM20..RHD

 1
58309-95706

CM20..RHD

 1
58311 - PAN, REAR FLOOR
58311-95736

CM20..06S

 1
58311-95748

CM20..RHD

W/O RR SEAT

 1
58442C - COVER, BATTERY SERVICE HOLE, SUB
58442-95701

CM20..RHD

 1
58446A - PACKING, BATTERY SERVICE HOLE COVER, SUB
58446-95701

CM20..RHD

 1
58450 - COVER ASSY, BATTERY SERVICE HOLE
58201-95716

CM20..RHD

 1
58201-95710

CM20..RHD

 1
58450A - PACKING, BATTERY SERVICE HOLE COVER
58445-95711

CM20;YM21..08S

 1
58450B - COVER ASSY, AIR CLEANER SERVICE HOLE
58450-95700

CM20

 1
58464B - BRACKET, AIR CLEANER SERVICE HOLE COVER
58464-95700

CM20

 1
Common parts
90122-06004
90159-60096
90189-06008
90950-01007
90950-01011
90950-01056
90950-01126
90950-01127
90950-01269
91631-40616
91655-40616
91656-40818
91666-40618
94110-40600
